Ansell Lighting Z LED Linear LED High Bay Lights
The Ansell Lighting Z-LED Linear Performance range has been developed to provide reliable, energy-efficient lighting for demanding industrial environments. Featuring selectable power outputs and three selectable colour temperatures (4000K, 5000K and 6500K), each luminaire can be configured to suit a wide variety of applications whilst helping to reduce stockholding for contractors and wholesalers. The robust die-cast aluminium construction delivers excellent thermal management for extended LED life, while the IP65-rated housing and IK10 impact resistance ensure dependable performance in challenging environments. Every fitting is supplied with a 1.5m suspension kit, supports surface mounting via an optional bracket and includes 0/1-10V dimming, Zhaga Book 18 sensor compatibility and a plug-and-play emergency pack option for maximum installation flexibility. Optional 90° open area lenses and intelligent microwave or PIR sensors allow lighting schemes to be tailored to warehouses, production facilities, logistics centres and other industrial applications.
Showing 1 - 9 of 9 items

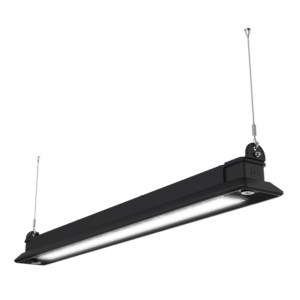

ANSELL LIGHTING Z-LED LINEAR LED LINEAR HIGH BAY LUMINAIRES

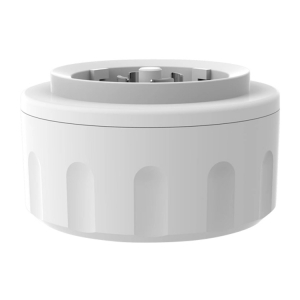

ANSELL LIGHTING ZHAGA SENSORS
ANSELL LIGHTING Z-LED LINEAR LED LINEAR HIGH BAY LUMINAIRE ACCESSORIES
Key Features & Benefits
- Available with selectable wattage options (Code dependent)
- 3CCT selectable: 4000K / 5000K / 6500K
- High-performance LED output for industrial lighting applications
- Robust die-cast aluminium body for excellent thermal management
- IP65 rated for protection against dust and water ingress
- IK10 impact-resistant construction
- 0/1-10V dimmable as standard
- Zhaga Book 18 socket for plug-and-play lighting controls
- Compatible with Zhaga microwave and PIR sensors
- Optional plug-and-play emergency pack for fast emergency conversion
- Optional 90° open area lens for application-specific beam control
- 1.5m suspension kit supplied as standard
- Optional surface mounting kit available
- Suitable for surface or suspended installation
- Operating temperature: -30°C to +50°C
- Supply voltage: 220-240V AC, 50/60Hz
- CRI >80
- Suitable for warehouses, factories, logistics centres, production facilities and industrial buildings
