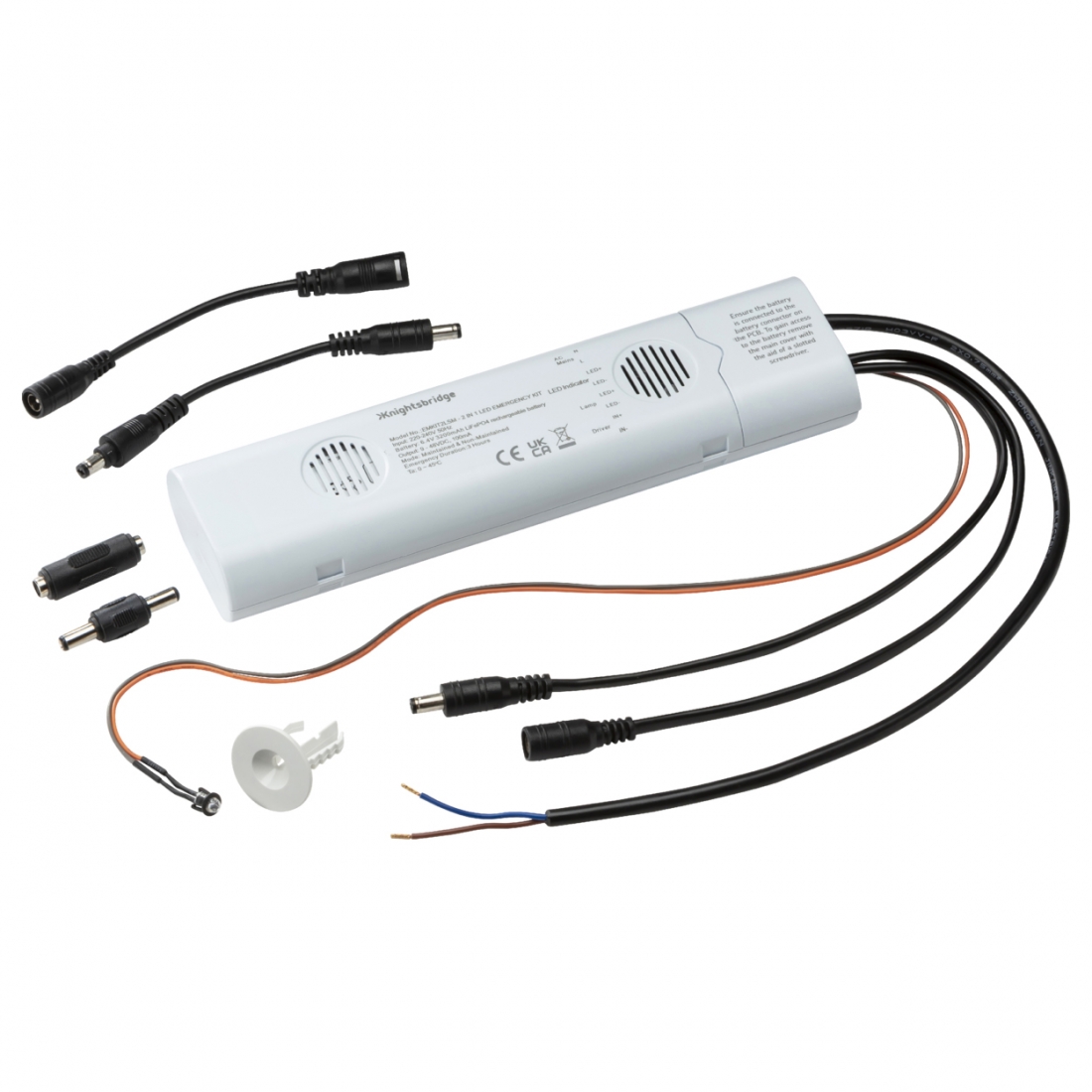

Knightsbridge EMKIT2LSM Dual Mode LED Emergency Pack For LUMI6060PRO LED Panels

Knightsbridge EMKIT2LSM

The Knightsbridge EMKIT2LSM 230V LED Dual Mode Emergency Kit converts compatible Knightsbridge LED luminaires for emergency operation. Its versatile 2-in-1 design offers selectable Self-Test or Manual testing, with reliable LiFePO4 battery technology.

Order code: EMKIT2LSM
Manufacturer: Knightsbridge
GTIN: 5061061279731

£ 42.88 incl. VAT
£ 35.73 excl. VAT

Trade Price: £ 129.36
You SAVE
£ 93.63 or 72%
Add to compare
Normally despatched within 3-4 working days
Normally despatched
within 3-4 working days

Knightsbridge EMKIT2LSM Description

The Knightsbridge EMKIT2LSM LED Emergency Conversion Kit provides a flexible solution for adding emergency functionality to a wide range of compatible Knightsbridge LED luminaires. Designed for both maintained and non-maintained operation, the kit supports luminaires with a maximum load of 50W, making it suitable for numerous commercial lighting applications.

A key feature is its 2-in-1 dual-mode design, allowing installers to select either Self-Test or Manual operation using an internal DIP switch. Self-Test functionality can help simplify routine emergency lighting testing, while Manual mode provides a conventional testing option where preferred. The emergency pack provides a 9-48V DC, 100mA output and uses LiFePO4 battery technology for dependable emergency performance. Its broad compatibility with Knightsbridge luminaires, including the LUMI6060PRO LED panel range, makes the EMKIT2LSM a practical way to incorporate emergency functionality into compatible commercial lighting installations.

Knightsbridge EMKIT2LSM Features

  • Product type: 600x600mm LED backlit panel
  • Wattage: 30W
  • CCT selectable: 3000K / 4000K / 5700K
  • Delivered lumens: 3940lm / 4100lm / 3945lm
  • Maximum output: 4100 lumens at 4000K
  • Efficacy: 123 / 134 / 124 lm/W
  • CRI: >80
  • Beam angle: 90°
  • UGR19 rated for reduced glare and improved visual comfort
  • Tp(a) rated prismatic diffuser
  • Backlit LED technology provides efficient, uniform illumination
  • Ideal retrofit solution for older T8 and T5 modular fluorescent luminaires
  • Compatible with standard 600x600mm 15mm and 25mm ceiling grids
  • L70B50 lifespan: 50,000 hours
  • IP rating: IP40
  • Class: Class II
  • Construction: Aluminium
  • Finish: White
  • Diffuser: Prismatic
  • Dimmable: No
  • Running current: 0.13A
  • Displacement factor: >0.9
  • SDCM: <6
  • Dimensions: 595mm (L) x 595mm (W) x 25mm (H)
  • Net weight: 1.4kg
  • Optional 3-hour emergency conversion kit available separately
  • Optional surface mounting kit, suspension kit and recessed mounting clips available separately
  • Ideal for offices, schools, commercial premises and ancillary areas
  • 5-year manufacturer warranty
