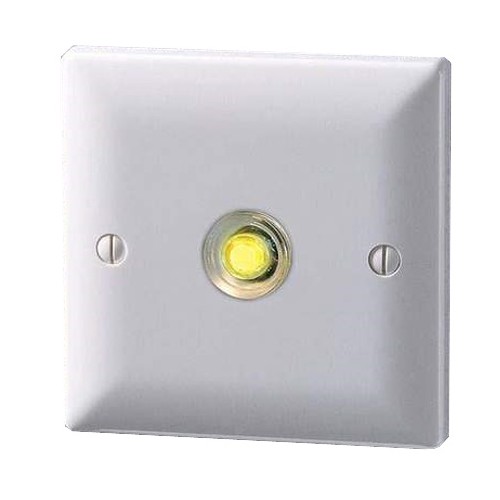

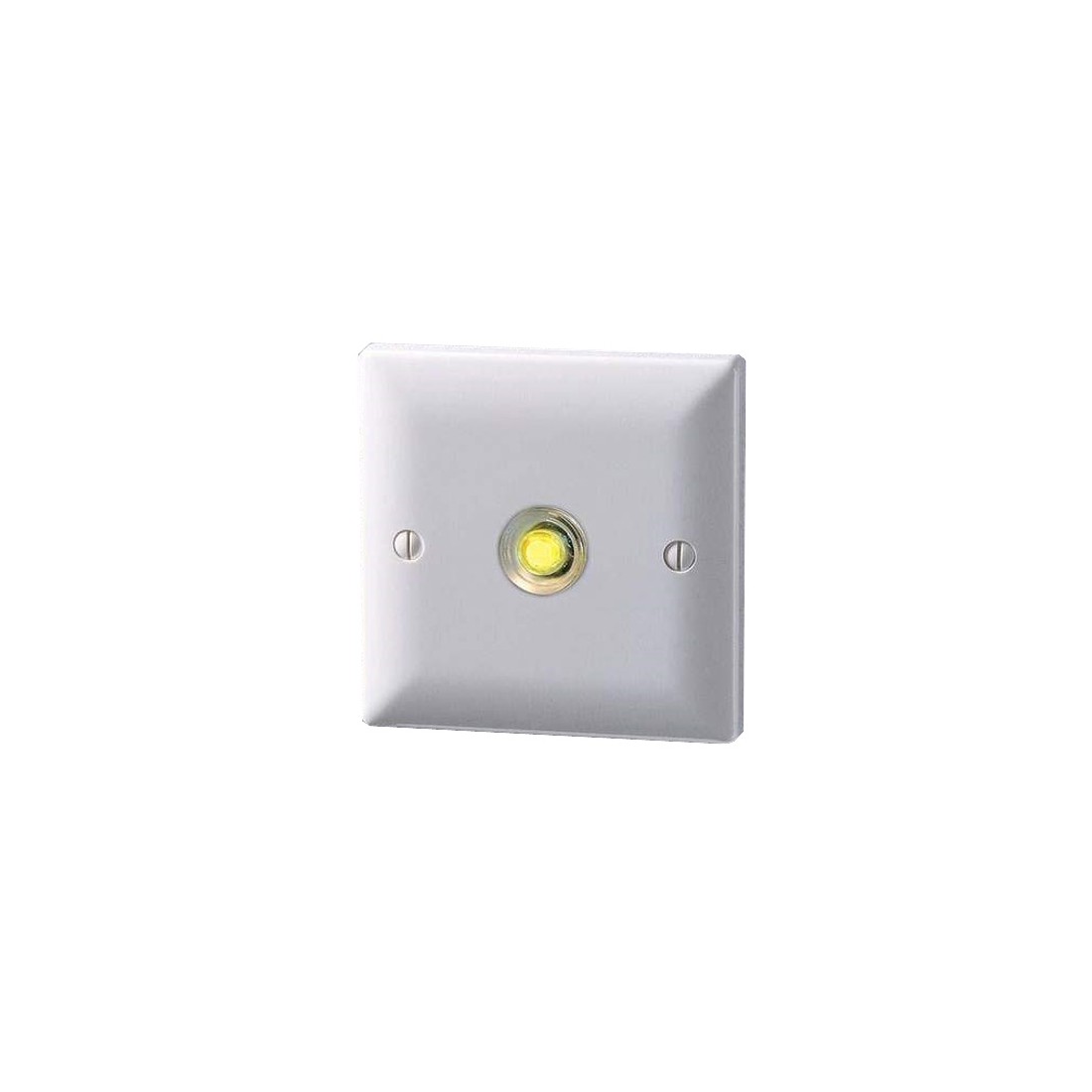

Danlers TLSWA20ILM White 3 Wire Adjustable Time Lag Switch With 2-20 Minute Time Lag & Illuminated Push Button On 1 Gang Plate - Fits 1 Gang Mounting Box 6A 230V Height: 86mm | Width: 86mm | Depth: 12mm

Danlers TLSWA20ILM Description

Danlers TLSWA20ILM is a white plated 3-wire adjustable time lag switch with illuminated push button on a 1 gang plate that is designed to switch lights, or other loads, on for a limited time only, and to switch off automatically after a time lag has elapsed.

Direct replacement for an existing wall switch. Quick and inexpensive to install, it requires neutral wires. Delivers energy saving benefits and are ideal for use in stairwells, store rooms and in many other applications.

The illuminated push button is easy to see in the dark. Pressing the button brings the lights on in the normal way; then the lights will switch off automatically after a 2min - 20min time lag has elapsed. The time lag settings can be adjusted by a spindle on the bottom edge of the product.

Maximum load up to 6 amps (1500W) of resistive, transformer or fluorescent lighting loads, 2 amps (500W) of CFL, LED Drivers and LED lamps and fittings, 1 amp (250W) of fans.

Load capacitors are now supplied to augment small or non-resistive loads.

These TLSWA20ILM can be used for multi-way switching, using the optional slave push buttons ( order codes SS1SL and SS2SL).

Danlers TLSWA20ILM Features

• Danlers TLSWA20 white plated 3-wire adjustable time lag switch
• Can be used as a direct replacements for existing wall switches
• 3 wire version
• Neutral wire required
• Iluminated push button for easy location in the dark
• Push button is lit until the button is pressed
• Wall box must be at least 16mm deep
• Adjustable time lag, 2 to 20 minutes
• A short press will switch the load on and it will switch off automatically after the time lag period has expired
• Maximum Load: 6 amps (1500W) of resistive, fluorescent or transformer lighting loads, or up to 1 amp (250W) of fans
• No minimum load
• Load capacitors are now supplied to augment small or non-resistive loads
• Brings energy saving benefits to stairwells, store rooms and in many other applications
• Dimensions: Height: 86mm | Width: 86mm | Depth: 12mm
