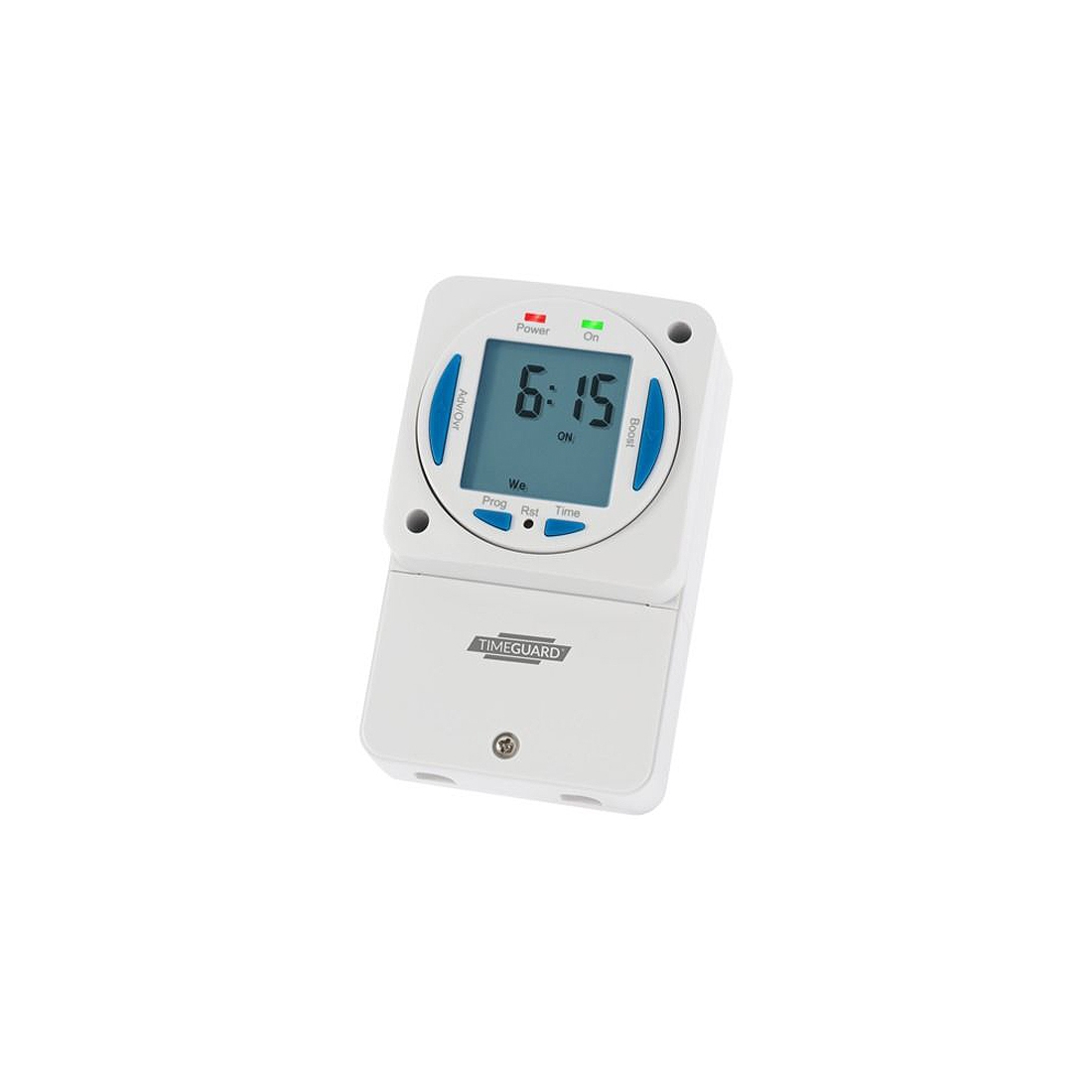

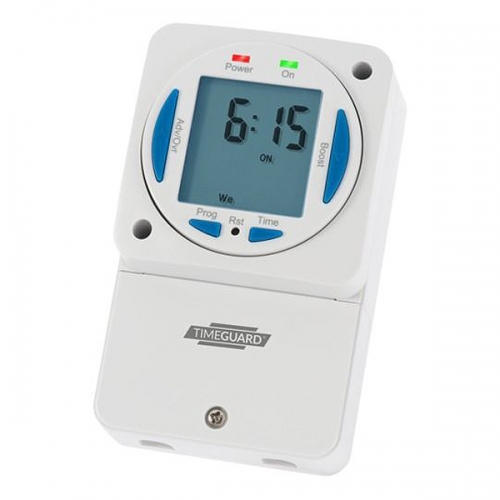

Timeguard NTT06 24 Hour Slimline Digital General Purpose Timeswitch With 1 - 2Hr Boost, Voltage Free Contacts & 4 ON+OFF Programs 16(4)A

Timeguard NTT06 Description

The Timeguard NTT06 is a slimline, wall mounting 24 hour electronic time-switch suitable for general use. It has 4 ON + 4 OFF easy to set programme periods per day with a shortest switching time of one minute.

Features an extra large easy view screen with blue LED backlighting, large easy push programme buttons and automatic summer/winter changeover.

The boost feature provides 1 or 2 hour boost and self-cancelling override button to next programme change. The unit also has a 720 hours rechargeable memory back up

It can control outputs of up to 16A which makes it suitable for domestic immersion heaters. The NTT06 comes with a link in place which can be removed to provide volt free contacts if required, making it suitable for a wider range of switching applications. If volt free is not required, the link must be left in place.

Can switch up to 750W incandescent or halogen lighting / 750W fluorescent lighting / 100W compact fluorescent lighting and 100W LED lighting. Please Note this product is not suitable for discharge lighting.

Timeguard NTT06 Features

• 16(4)A load rating.
• 4 ON/4 OFF easy-set programme periods per day.
• Shortest switching time 1 minute.
• Switches up to 750W incandescent or halogen lighting/750W fluorescent lighting/100W compact fluorescent lighting (cfl’s)/100W LED lighting. Not suitable for discharge lighting.
• Extra large ‘Easy View’ screen with blue LED backlighting.
• Red LED ‘Mains ON’ and green LED ‘Output’ indicators for easy viewing.
• Large easy push programme buttons.
• Self-cancelling override button to next programme change.
• Optional 1 and 2 hour boost button.
• Automatic Summer/Winter changeover.
• 720 hours rechargeable memory back-up.
• Voltage free contacts.
