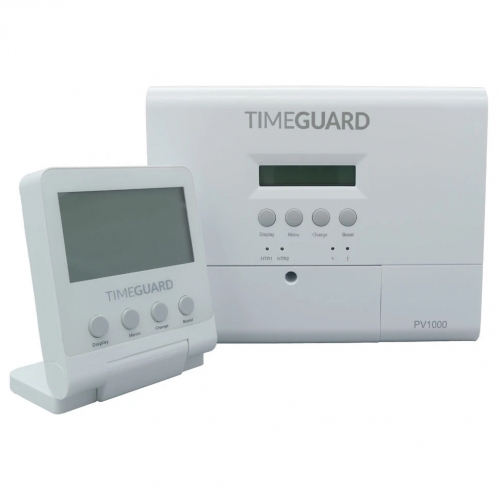

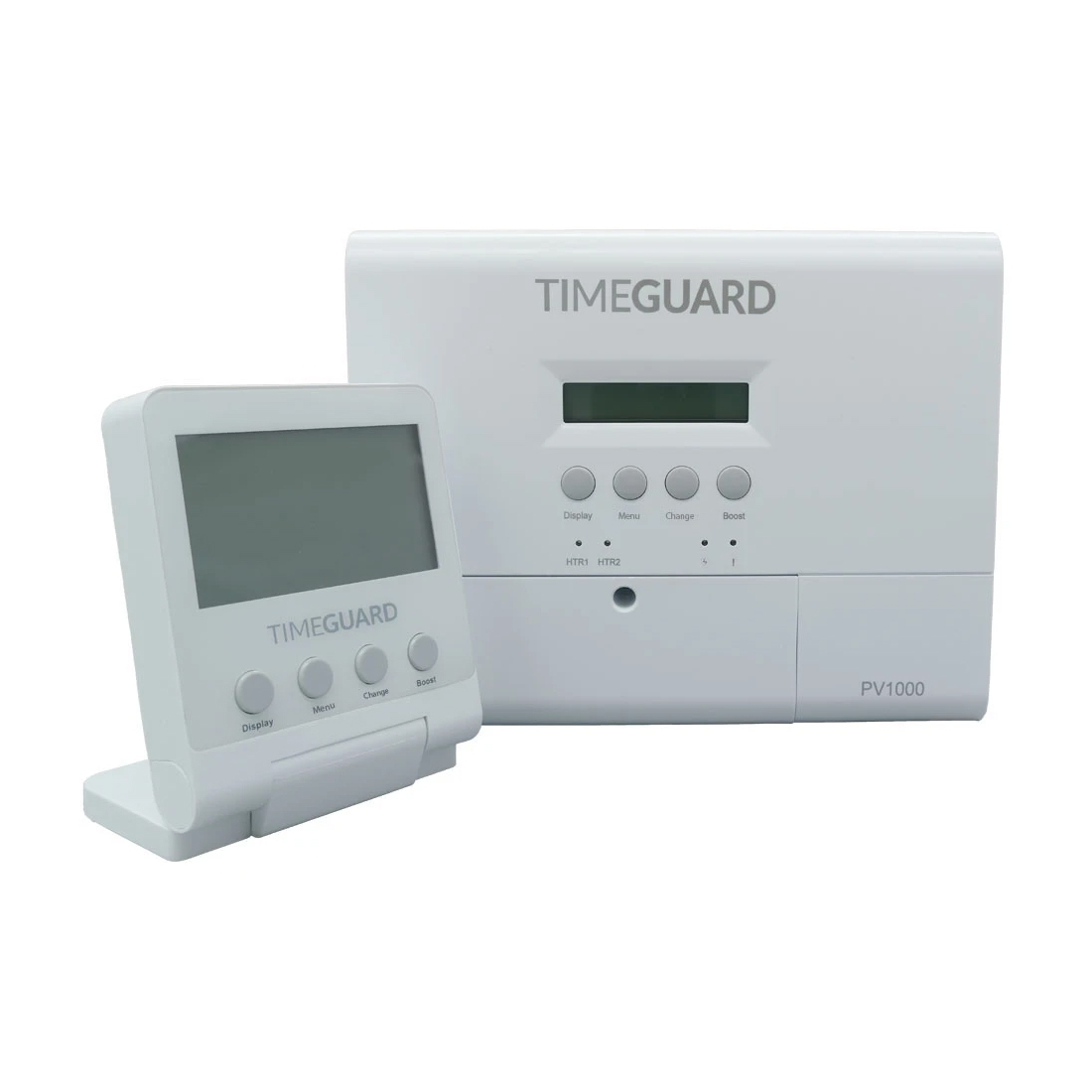

Timeguard PV1000 Boostmaster White IP20 Solar PV Boost Immersion Controller Kit with Main Unit, Display Unit & Sender

Timeguard PV1000 Description

The Timeguard PV1000 Solar PV Boostmaster immersion controller transforms the excess electricity generated by your solar panels into free hot water, reducing the need to draw energy from the grid. Designed for use with existing solar PV systems and standard immersion heaters, this innovative controller continuously monitors exported power and automatically diverts surplus energy (above a set threshold) to heat your water tank.

Featuring a backlit LCD display and intuitive controls, the PV1000 provides real-time feedback on energy generation, consumption, diversion and savings — including daily, weekly and long-term kWh data. The system includes a main control unit, wireless display unit and sender clamp, enabling flexible installation and remote monitoring (up to about 30 m away). With programmable boost functions and adjustable activation thresholds, you can tailor performance to suit household usage and solar conditions.

Engineered to align solar energy generation with domestic needs, the PV1000 enhances self-consumption, reduces exported electricity (often sold at low tariff rates) and helps lower overall energy costs. Its robust design and comprehensive feature set make it ideal for homeowners looking for a practical, retrofit-friendly solution to maximise their solar investment.

Timeguard PV1000 Features

• Solar PV energy diversion controller — optimises use of surplus solar electricity for water heating.
• Backlit LCD display — shows real-time energy stats and system status.
• Automatic surplus detection — redirects excess solar power (above approx. 100 W) to immersion heater.
• Wireless display unit — can be positioned up to ~30 m from the main controller.
• Boost function — manual control increments (e.g., up to 2 hours) for additional heating.
• Adjustable cut-in threshold — default 100 W, with wider adjustable range for activation.
• Real-time energy tracking — view daily, weekly and total kWh saved.
• Compatible with standard immersion heaters (up to ~3 kW resistive load).
• Boostmaster all-in-one kit — main unit, display and sender clamp included.
• Easy wall-mount installation — surface wiring with included fixings.
• Ideal retrofit solution — integrates with existing PV and water heating setups.
• Robust housing — durable construction designed for indoor positioning.
• Energy-saving and eco-friendly — reduces grid reliance and maximises solar output use.
• 3-year manufacturer guarantee — peace of mind warranty.
