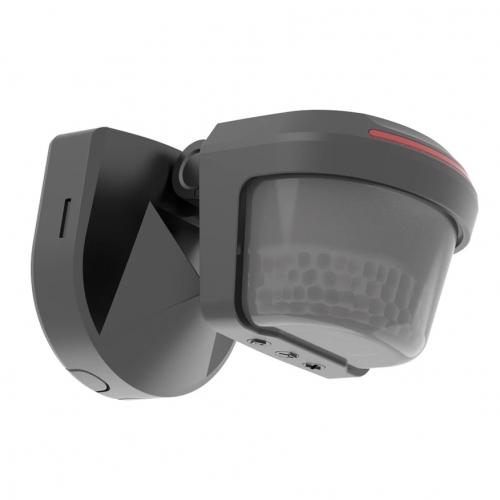

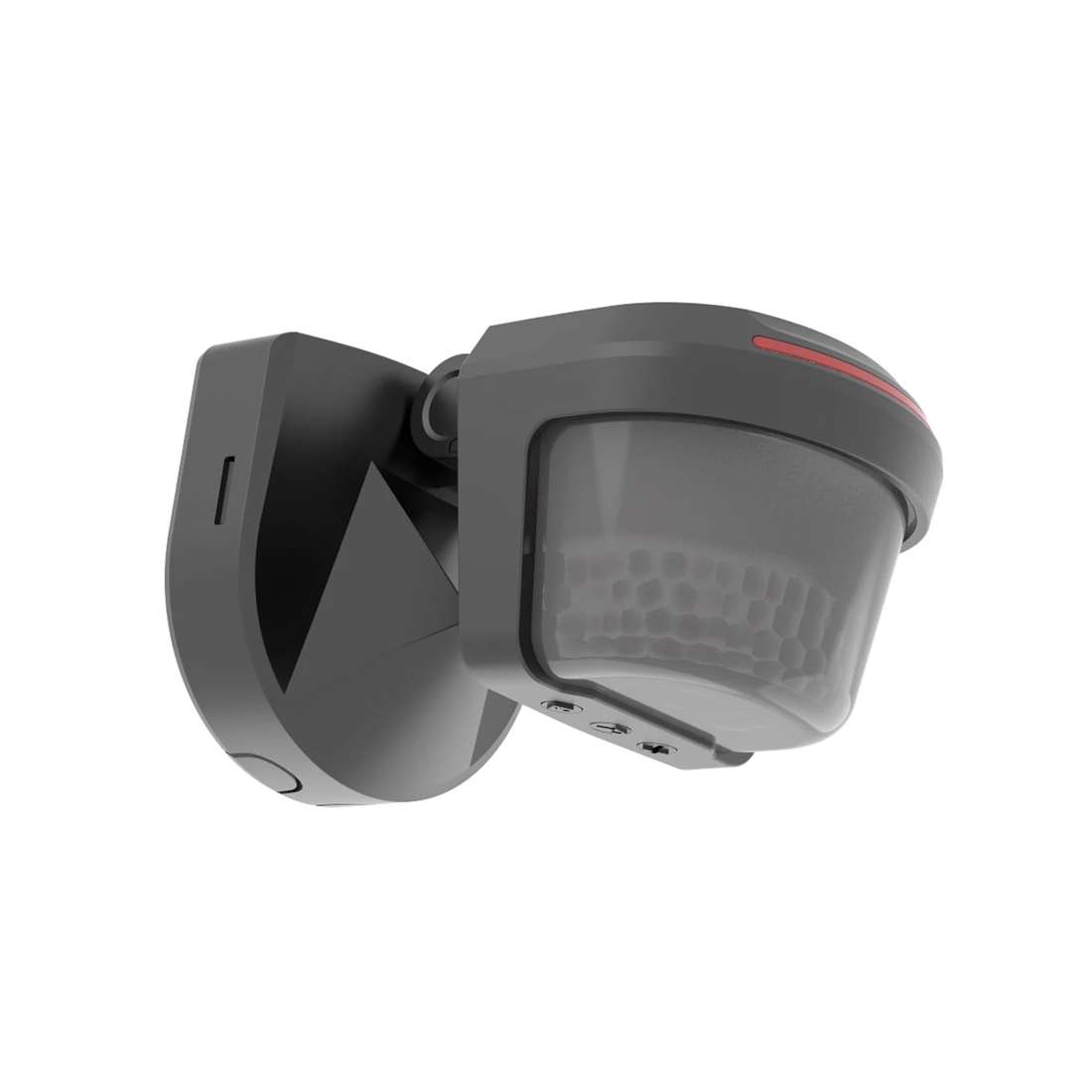

Timeguard MLB3001 Night Eye Black IP65 3kW 220° | 12m Scanning PIR Sensor & Photocell

Timeguard MLB3001 Description

The Timeguard MLB3001 Scanning PIR & Photocell Controller is a powerful motion-activated sensor unit engineered to provide automatic control for exterior lighting, security systems and electrical loads in both new and existing installations. Featuring a wide-angle 220° scanning PIR sensor with up to 12 m detection range, this unit detects human movement and triggers connected lights or devices with responsive precision.

With an adjustable light level (lux) setting and time duration control, the MLB3001 enables you to tailor activation behaviour — from brief triggers to extended illumination — depending on ambient conditions and desired usage. The integrated photocell means it only activates in low light, conserving energy and improving efficiency.

Built for reliability in demanding outdoor environments, this controller carries an IP55 rating, providing protection against dust and low-pressure water jets. Its pan and tilt adjustable sensor head allows precise positioning for optimal coverage, while manual override and sensitivity controls offer flexible operation. Suitable for high-load switching up to 3 kW (e.g., halogen or other resistive loads) or up to 600 W for LED loads, the MLB3001 combines robust performance with versatile control for driveway, garden, perimeter and security lighting applications.

Timeguard MLB3001 Features

• 3 kW scanning PIR & photocell controller — motion-activated lighting control.
• Wide 220° detection angle with up to 12 m range — broad sensor coverage.
• Adjustable light level (lux) control — dusk-to-dawn sensing for energy savings.
• Time duration adjustment — 2 seconds up to 15 minutes of activation.
• IP55 weatherproof rating — protected against dust and low-pressure water jets.
• Pan and tilt sensor head — easily adjust detection direction.
• Manual override function — switch the load on or off as needed.
• Adjustable sensitivity settings — fine-tune detection responsiveness.
• Push-fit terminals — fast and straightforward wiring.
• Suitable for high loads — up to 3 kW for halogen/incandescent or up to 600 W for LED loads.
• Robust polycarbonate housing — durable and weather-resistant.
• 230 V AC operation — compatible with standard UK mains supply.
• 3-year manufacturer guarantee — long-term reliability assurance.
• Compliance: BS EN 61347 — meets relevant safety standards.
