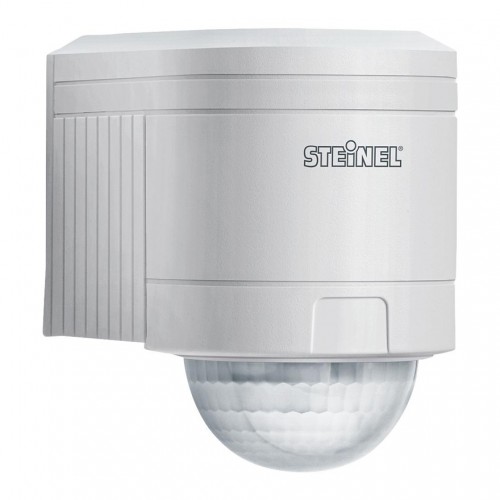

Steinel 602819 IS240 DUO White Wall Mounting 240° | 12m PIR Motion Detector With Dual 120° Pyro Sensors & Corner Mounting Bracket IP54 240V Height: 86mm | Width: 60mm | Depth: 95mm

Steinel 602819 Description

The IS 240 DUO is equipped with two highly sensitive infrared detectors positioned at a specific angle to each other and reliably watches over every inch of areas as large as 230 m². Mounted on external corners, it watches over two house walls, saving the need for a second sensor.

Setting Options:
• Detection zone can be limited by fitting the shrouds supplied
• Simple adjustment of light 'ON' time and twilight threshold by control dial

Installation Advantages:
• Clearly designed terminal compartment for fast, easy wiring

Dimensions (HxWxD): 90 x 60 x 100 mm
Output:
1000 W max. (resistive load, e.g. filament bulb)
500 W max. (uncorrected, inductive, cos ϕ = 0.5, e.g. fluorescent lamp)
electronic ballasts, capacitive, e.g. low-energy lamp,
6 each max., C ≤ 132 μF
Voltage: 230 – 240 V/50 Hz
Detection angle: 240° with 180° angle of aperture
Reach: 12 m max. (temperature-stabilised)
Twilight setting: 2 – 2000 lux
Time setting: 10 sec. – 15 min.
IP rating: IP 54
Safety class: II
