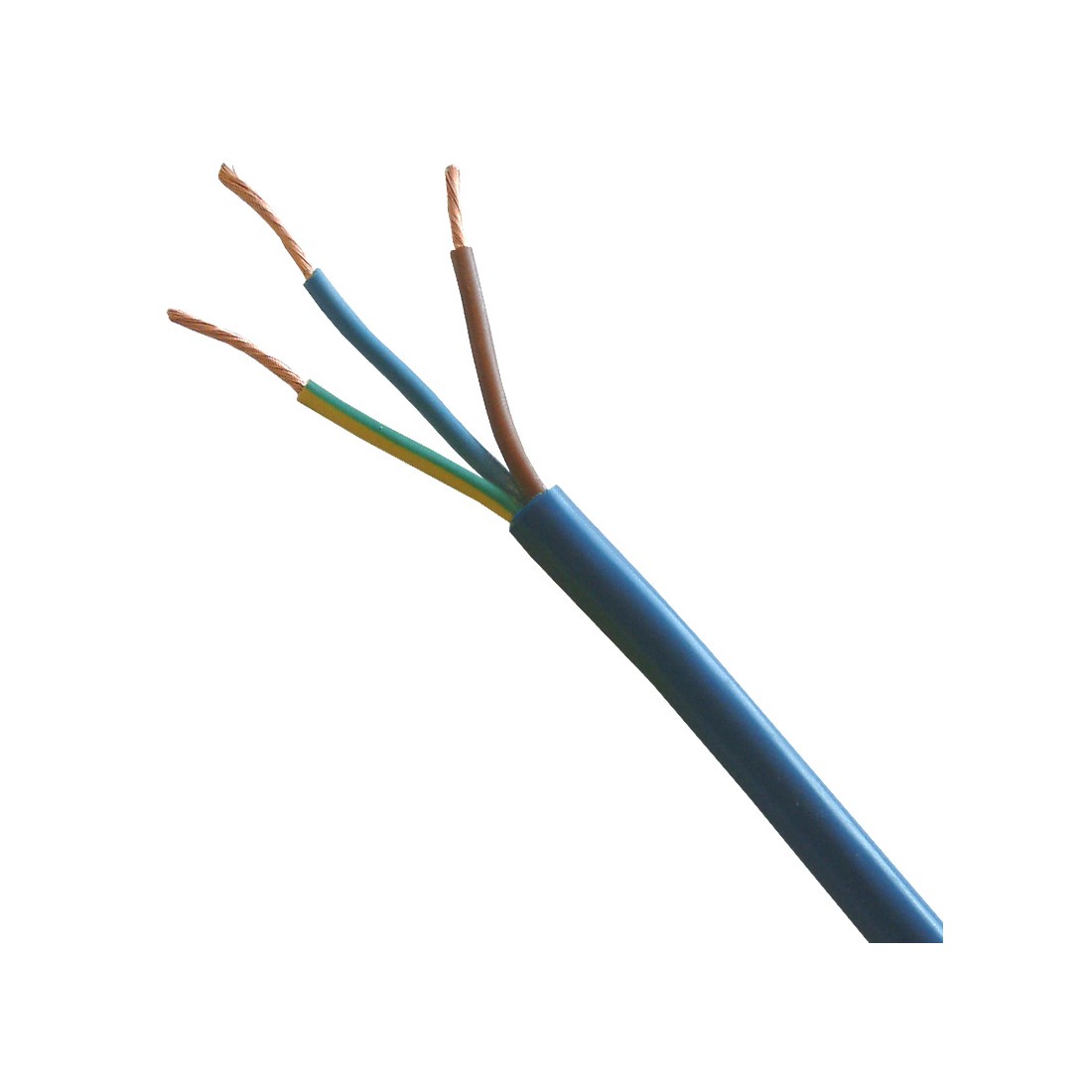

ART3183Y25BLUEC BASEC Approved 3183AG Blue 240V 3 Core Arctic Grade Cable 2.5mm 100m Reel
ART3183Y25BLUEC BASEC Approved 3183AG Blue 240V 3 Core 2.5mm Arctic Grade Cable 100m Reel used in the connection of electrical appliances for outdoor industrial installations such as temporary traffic lights and construction sites. Designed to withstand severe external temperatures and will remain flexible at temperatures down to -40°C. Making it particularly suitable for outdoor applications and for use where flexibility is required at sub zero temperatures. At normal temperatures the cable is very flexible, offering some of the characteristics usually found in elastomeric cables.
Order code: ART3183Y25BLUEC
Manufacturer: BASEC Approved Cable
GTIN:
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
BASEC Approved Cable ART3183Y25BLUEC Description
- Application: Ideal for outdoor applications where flexibility is required at sub-zero temperatures i.e. outdoor tools and equipment.
- Temperature: From -40°C to +60°C
- Type: 3183AG
- Number of Cores: 3
- Conductor Size: 2.5mm²
- Conductors: Flexible Copper Conductor
- Insulation: Arctic Grade PVC
- Outer Sheath Colour: Blue
- Core Colours: Blue, Brown, Green/Yellow
- Current Rating: 25A
- Max Voltage: 300/500V
- BS Number: BS6004, BS EN 60332-1-2
- Overall Diameter: 10mm
- Length: 100m Reel
BASEC Approved Cable ART3183Y25BLUEC Features
Construction: Plain annealed copper conductor, Arctic grade PVC three cores twisted together and Arctic grade PVC sheathed.
Standards: Generally to BS6500, VDE281
Conductor: Class 5 copper conductors to BS EN 60228:2005 (previously BS6360)
Standard Colours: Cores - Green/Yellow, Blue & Brown / Sheath - Blue
Voltage Rating: 300/500 Volts
Temperature Rating: -40°C to +70°C.
