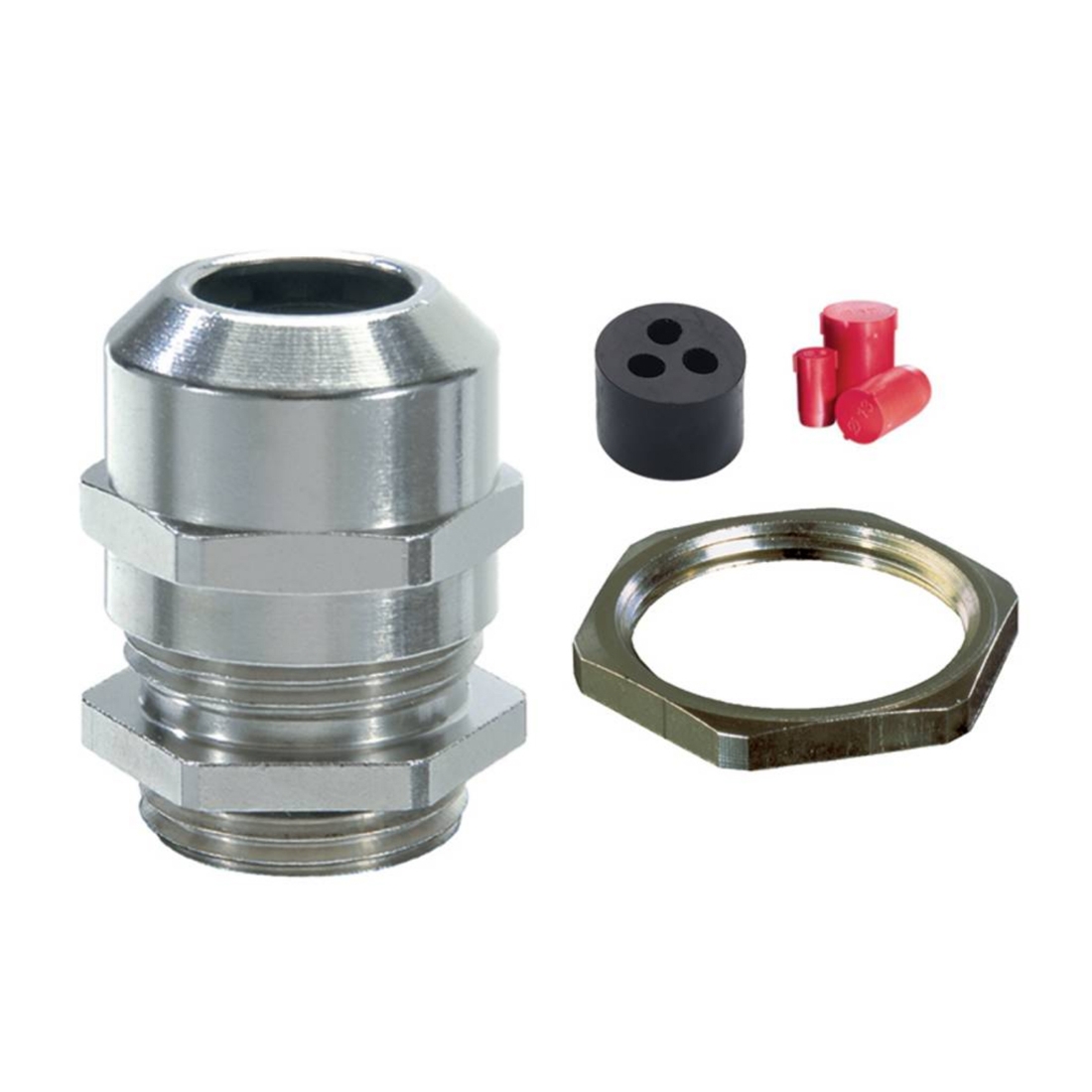

Wiska 10106234 TKE/B40 Sprint Brass Nickel Plated Tail Kit With EMSKV40 M40 Brass Gland + Locknut, Blind Plug & MFD Insert Suitable For 2x25mm Tails + 1x16mm Earth IP68
Order code: 10106234
Manufacturer: Wiska
GTIN: 4007686018271
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
Wiska 10106234 Description
Wiska 10106234 TKE/B40 Sprint Brass Nickel Plated Tail Kit With EMSKV40 M40 Brass Gland + Locknut, Blind Plug & MFD Insert Suitable For 2x25mm Tails + 1x16mm Earth IP68
Consumer unit tail kits meet current regulations for the wiring of 18th Edition metal consumer units.
Utilising the unique inserts allows meter tails and earth wire to be installed through one insert, providing cable retention, no eddy currents, and whilst being mindful to maintain the appropriate fire integrity of the consumer unit.
Kits include IP68 polyamide or brass nickel plated cable gland, locknut, multiple inserts and blanking insert. Blanking plug is supplied to enable installation without earth wire.
| Brand : | Wiska |
| Part No : | 10106234 |
| Colour : | Nickel |
| Product Range : | Tail Kits |
| IP Rating : | IP69 |
| Type : | Tail Kit |
| Material : | Brass Nickel Plated |
| Operating Temperature Range : | -40 °C - 100 °C |
| Minimum Operating Temperature : | -40°C |
| Suitable For : | Cable Entry |
| Supplied With : | Insert |
| Thread Type : | M |
| Ø Connection thread : | 40 |
| Type of cable anchorage : | A |
| Install. torques fitting : | 20 N/M |
| Impact Category : | 6 |
| Length screw-in thread L : | 8mm |
| Key width SW : | 46mm |
| Total Length TL : | 44-55mm |
