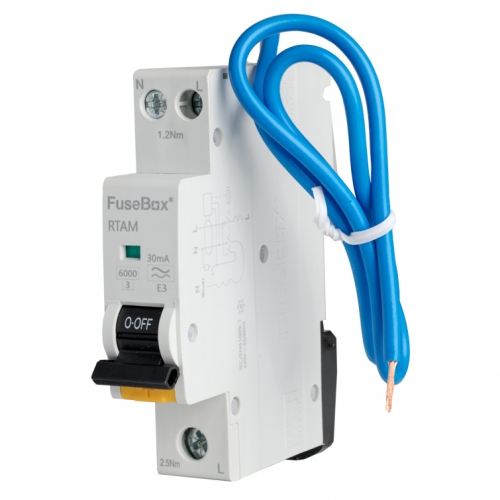

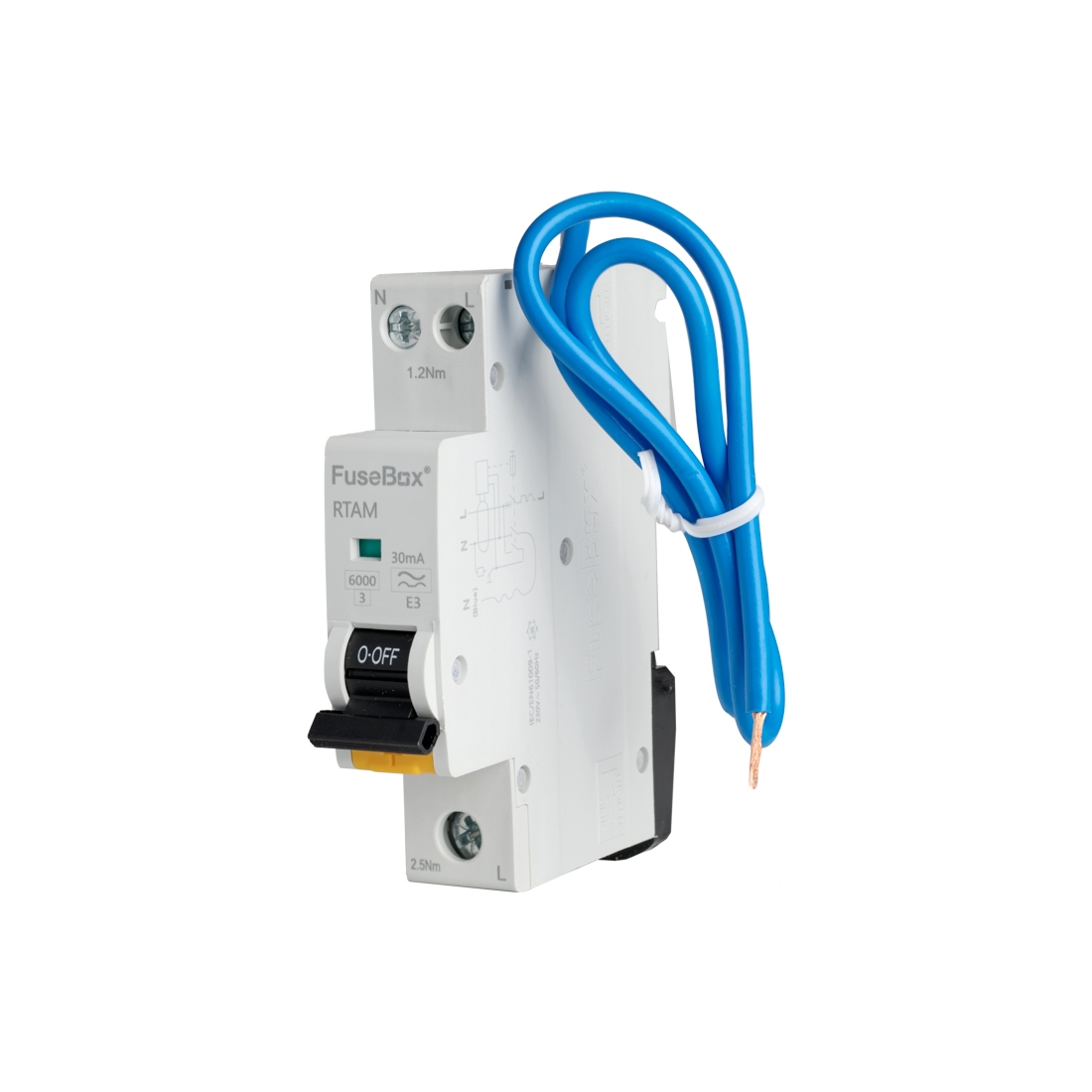

Fusebox RTAMC06BD 1 Module 6A 6kA 30mA 1P+N Bi-Directional RCBO Reduced Height Type-A C-Curve

Fusebox RTAMC06BD Description

The Fusebox RTAMC06BD is a 6A 6kA 30mA reduced height C curve mini bi-directional RCBO designed to be used with the Fusebox range of 18th edition Metal Consumer Units.

The compact size allows for even more wiring space in the consumer unit and offers additional safety features.

Allows for alternative supplies such as solar photovoltaic (PV) and energy storage systems such as V2L (Vehicle to Load) where power flows in both directions thus future proofing installations.

1P+N switching and class A protection as standard that responds to both AC and pulsating DC residual currents.

The perfect solution if you need RCD protection on a circuit.

Fusebox RTAMC06BD Features

• Fusebox RTAMC06BD 1 module reduced height 6A bi-directional RCBO
• Allows for installations where power flows in both directions e.g. solar photovoltaic (PV) systems
• Rating: 6A 6kA 30mA
• Type C Curve
• Class A - Sensitive to AC & Pulsating DC Faults
• 1P+N switching
• Compact size RCBO allows for maximum usage of cable space
• Single module width
• DIN Rail Mounted
• Designed to be used with the Fusebox range of 18th edition Metal Consumer Units
• Fully tested in accordance with BS EN 62606 / IEC/EN 61009-1
