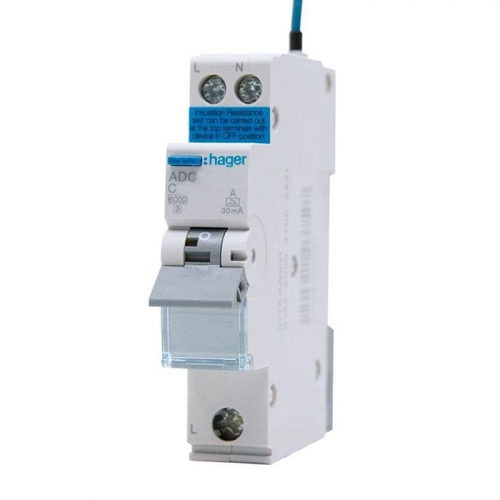

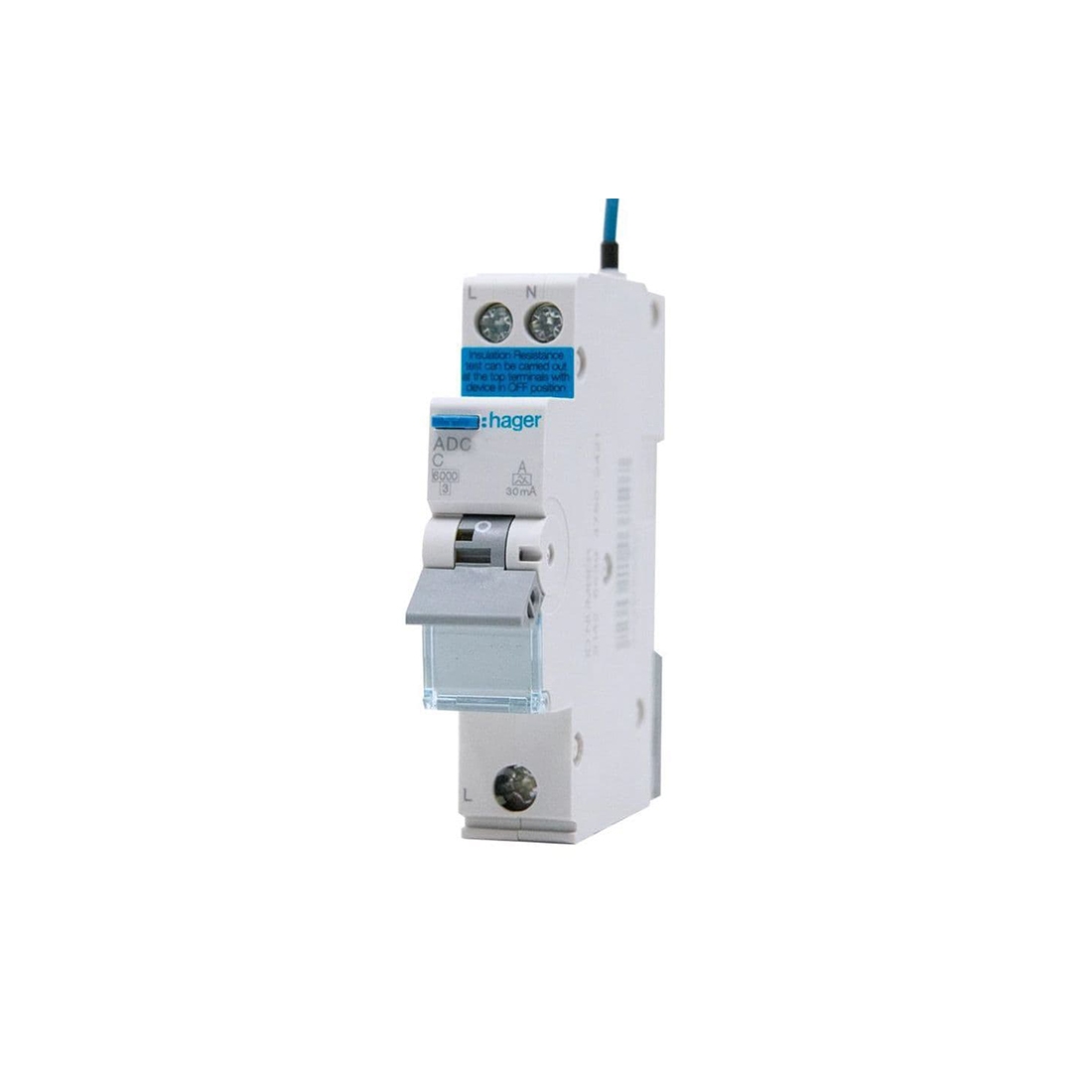

Hager ADC906R 6A 6kA 30mA 1P+N C Curve Type A Bi-Directional RCBO For Residential Installations
The ADC906R from Hager is a 6A 6kA 30mA compact double-pole RCBO designed for use in their domestic Design range of consumer units.
Order code: ADC906R
Manufacturer: Hager
GTIN: 3250611037460
Notify me by email when product is available
Normally despatched
within 3-4 working days
within 3-4 working days
Hager ADC906R Description
The ADC906R features Bi-Directional double pole switching that responds to both AC and pulsating DC residual currents and is suitable for use with modern electric vehicle chargers. It protects against both overcurrents due to overload and fault and residual current earth leakage.
The 2P switched neutral design and bi-directional functionality, is well adapted for micro-generation applications, where a type A RCBO may be required.
Hager ADC906R Features
- 6A 30mA C Curve
- Bi-Directional Double Pole RCBO 1P+N (switched neutral)
- Type A for AC and pulsating DC sensitivity
- Suitable for use with EV Chargers
- Retrofit to any Hager Consumer Unit
- Single module Mini RCBO
- Short circuit capacity of 6kA
- Available in 6A-32A variants
- Complies BS 7671:2018 Amendment 2 2022
- Rated operational voltage Ue: 230V
- Frequency: 50 Hz
- Type of supply voltage: AC
- Rated insulation voltage: 440V
- Max operating voltage: 264V
- Rated impulse withstand voltage: 4kV
- Rated residual operating current: 30mA
- Rating current 30°C: 6A
- Dimensions (of installed product): D 70 x H 85 x W 17.7mm
