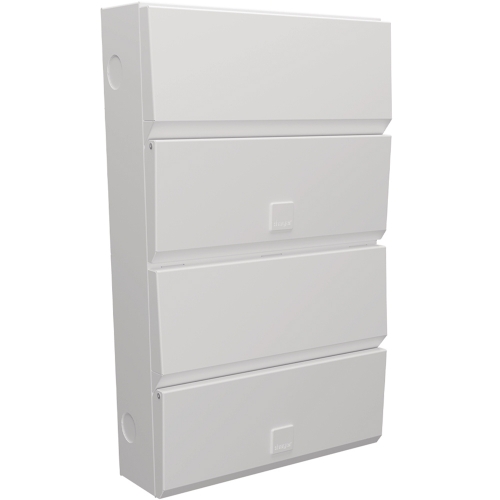

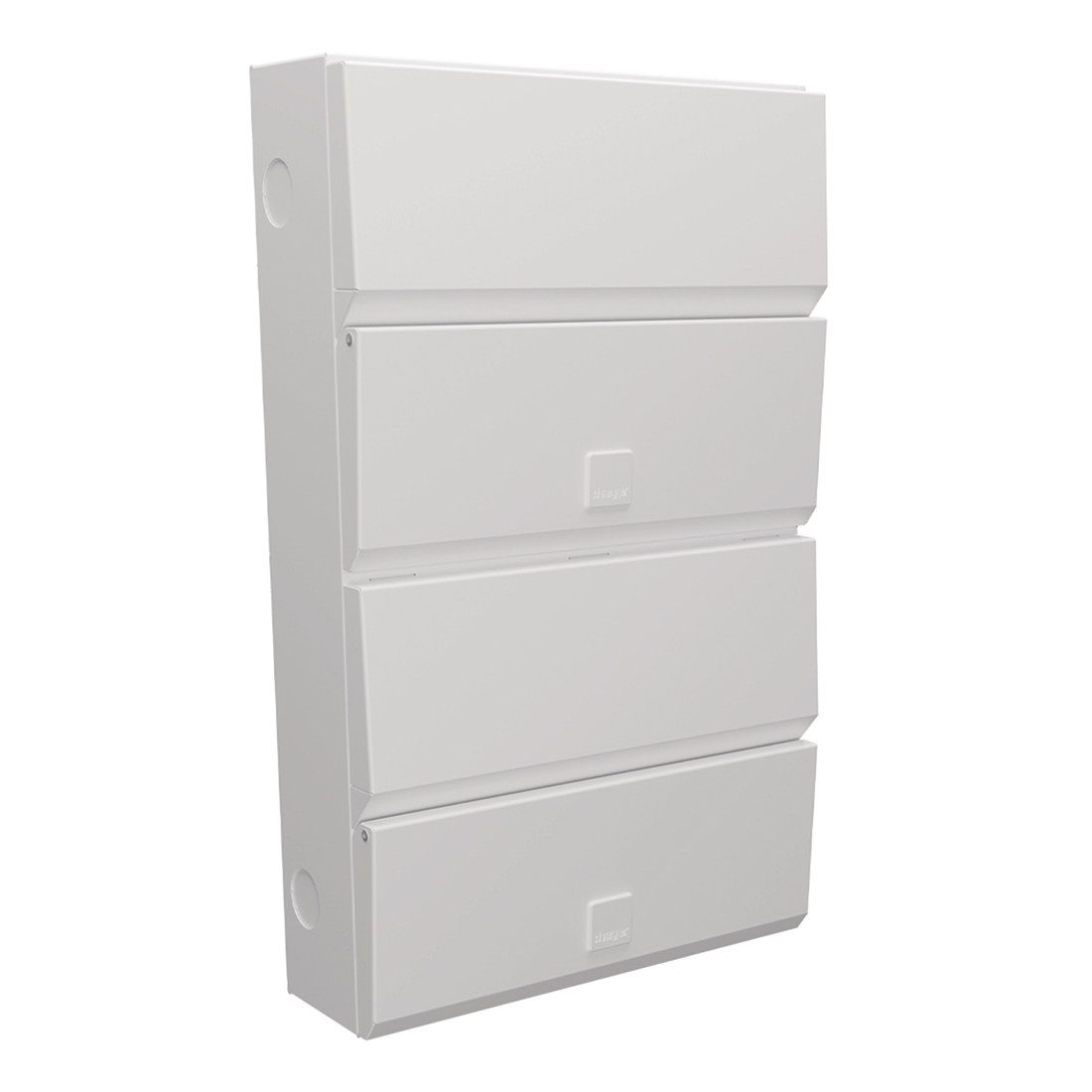

Hager VME10910SPD Design Evo White 9+10 Way Dual Row SPD Switch Isolator Consumer Unit With 100A Isolator & Type 2 Surge Protection Device

Hager VME10910SPD Description

The Hager VME10910SPD Design Evo White 9+10 Way Dual Row Consumer Unit combines exceptional circuit capacity, premium aesthetics and advanced electrical protection in a robust, installer-friendly enclosure. Supplied with a 100A double-pole switch isolator and factory-fitted Type 2 Surge Protection Device, this high-performance consumer unit helps protect electrical installations and sensitive electronic equipment from transient overvoltages caused by lightning strikes and switching events.

As part of Hager's award-winning Design Evo consumer unit range, the VME10910SPD has been engineered to meet the latest requirements of BS 7671 Wiring Regulations, making it an excellent choice for new-build properties, major renovations, extensions and high-specification residential projects. The integrated SPD provides essential protection for modern electronic devices, including smart home systems, entertainment equipment, broadband infrastructure, home offices, EV chargers and renewable energy technologies.

The dual-row 9+10 way configuration provides a total of 19 usable outgoing ways, offering greater flexibility for installations requiring multiple circuits. This makes it particularly suitable for larger homes where dedicated circuits are needed for kitchens, utility rooms, heating systems, EV charging points, solar PV systems and other modern electrical loads.

Designed with both aesthetics and practicality in mind, the VME10910SPD features a sleek white steel enclosure with Hager's contemporary Design Evo styling. Generous internal wiring space, removable DIN rail assemblies and multiple cable entry points help simplify installation and future maintenance. Compatibility with Hager's latest RCBO range allows individual circuit protection, helping to minimise disruption by isolating only the affected circuit in the event of a fault.

Combining increased capacity, integrated surge protection and Hager's trusted engineering quality, the VME10910SPD delivers a future-ready consumer unit solution for demanding residential electrical installations.

Hager VME10910SPD Features

• 9+10 way dual-row configuration
• 19 usable outgoing ways
• Factory-fitted Type 2 Surge Protection Device (SPD)
• Supplied with 100A Double Pole Switch Isolator
• Designed for domestic and residential electrical installations
• Provides protection against transient overvoltages and surge events
• Helps safeguard smart home technology and sensitive electronic equipment
• Ideal for larger homes and high-circuit-count installations
• Compliant with current BS 7671 Wiring Regulations
• Compatible with Hager RCBO protection devices
• Modern Design Evo white finish
• Durable powder-coated steel enclosure
• Double pole isolation for enhanced safety
• High-integrity consumer unit design
• Dual-row layout for improved circuit organisation
• Generous internal wiring space
• Multiple cable entry points and knockouts
• Removable DIN rail assemblies for easier installation
• Flush-fitting front cover with contemporary styling
• Suitable for new builds, extensions, refurbishments and consumer unit upgrades
• Rated current: 100A
• SPD type: Type 2
• Nominal voltage: 230V AC
• Frequency: 50Hz
• Protection rating: IP2XC
• Colour: White (RAL 9010)
• Enclosure material: Powder-coated steel
• Manufactured in accordance with BS EN 61439-3
• Supports modern RCBO-based circuit protection layouts
• Dimensions: Height: 480mm, Width: 293mm, Depth: 102.5mm
