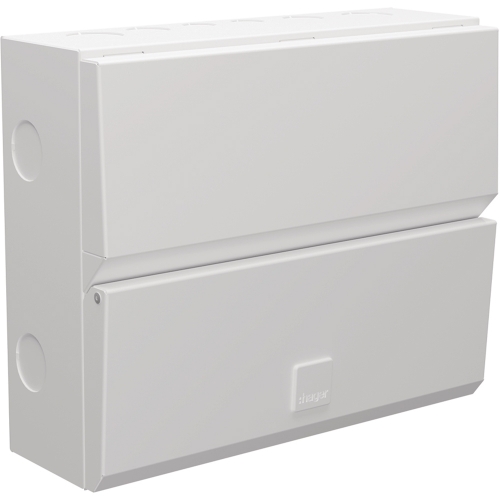

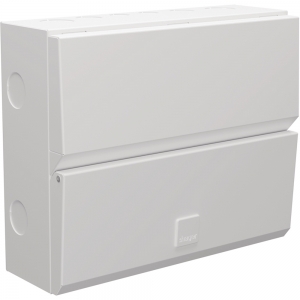

Hager VME109SPD Design Evo White 9 Way SPD Switch Isolator Consumer Unit With 100A Isolator & Type 2 Surge Protection Device

Hager VME109SPD Description

The Hager VME109SPD Design Evo White 9 Way Consumer Unit combines contemporary aesthetics with advanced electrical protection, making it an ideal choice for modern domestic installations. Supplied with a 100A main switch isolator and factory-fitted Type 2 Surge Protection Device, this consumer unit helps safeguard electrical circuits and sensitive electronic equipment against transient overvoltages caused by lightning strikes and switching events.

Part of Hager's innovative Design Evo consumer unit range, the VME109SPD has been developed to meet the latest requirements of BS 7671 Wiring Regulations, offering a practical and compliant solution for new builds, renovations and consumer unit upgrades. The integrated SPD provides enhanced protection for increasingly valuable household electronics, including smart home systems, televisions, computers, broadband equipment and appliances.

The unit features 9 usable outgoing ways, providing flexibility for a wide range of residential circuit configurations. Its robust steel enclosure, modern white finish and discreet styling allow it to blend seamlessly into contemporary interiors while maintaining the durability and reliability expected from Hager products.

Designed with installers in mind, the VME109SPD incorporates generous wiring space, multiple cable entry points and a removable DIN rail assembly to simplify installation and maintenance. The consumer unit also supports Hager's latest range of RCBOs, enabling individual circuit protection and helping to minimise disruption in the event of a fault.

Combining premium design, surge protection and trusted Hager engineering, the VME109SPD is an excellent choice for homeowners and electrical contractors seeking a safe, compliant and future-proof consumer unit solution.

Hager VME109SPD Features

9 usable outgoing ways
Factory-fitted Type 2 Surge Protection Device (SPD)
Supplied with 100A Double Pole Switch Isolator
Designed for residential and domestic installations
Helps protect sensitive electronic equipment from transient overvoltages
Compliant with current BS 7671 Wiring Regulations
Suitable for use with Hager RCBO protection devices
Modern Design Evo white finish
Durable steel enclosure construction
Double pole isolation for enhanced safety
High-integrity consumer unit design
Generous internal wiring space for easier installation
Multiple knockouts and cable entry options
Removable DIN rail assembly for improved accessibility
Flush-fitting front cover with contemporary styling
Suitable for new installations, refurbishments and consumer unit upgrades
Rated current: 100A
SPD type: Type 2
Voltage rating: 230V AC
Frequency: 50Hz
Colour: White (RAL 9010)
IP rating: IP2XC
Material: Powder-coated steel enclosure
Manufactured to relevant BS EN 61439-3 standards
Dimensions: Height: 240mm, Width: 293mm, Depth: 102.5mm
