Lewden RCBO-20/30/SPA 20A RCBO 30mA B Curve 6kA Type A

Lewden RCBO-20/30/SPA Description

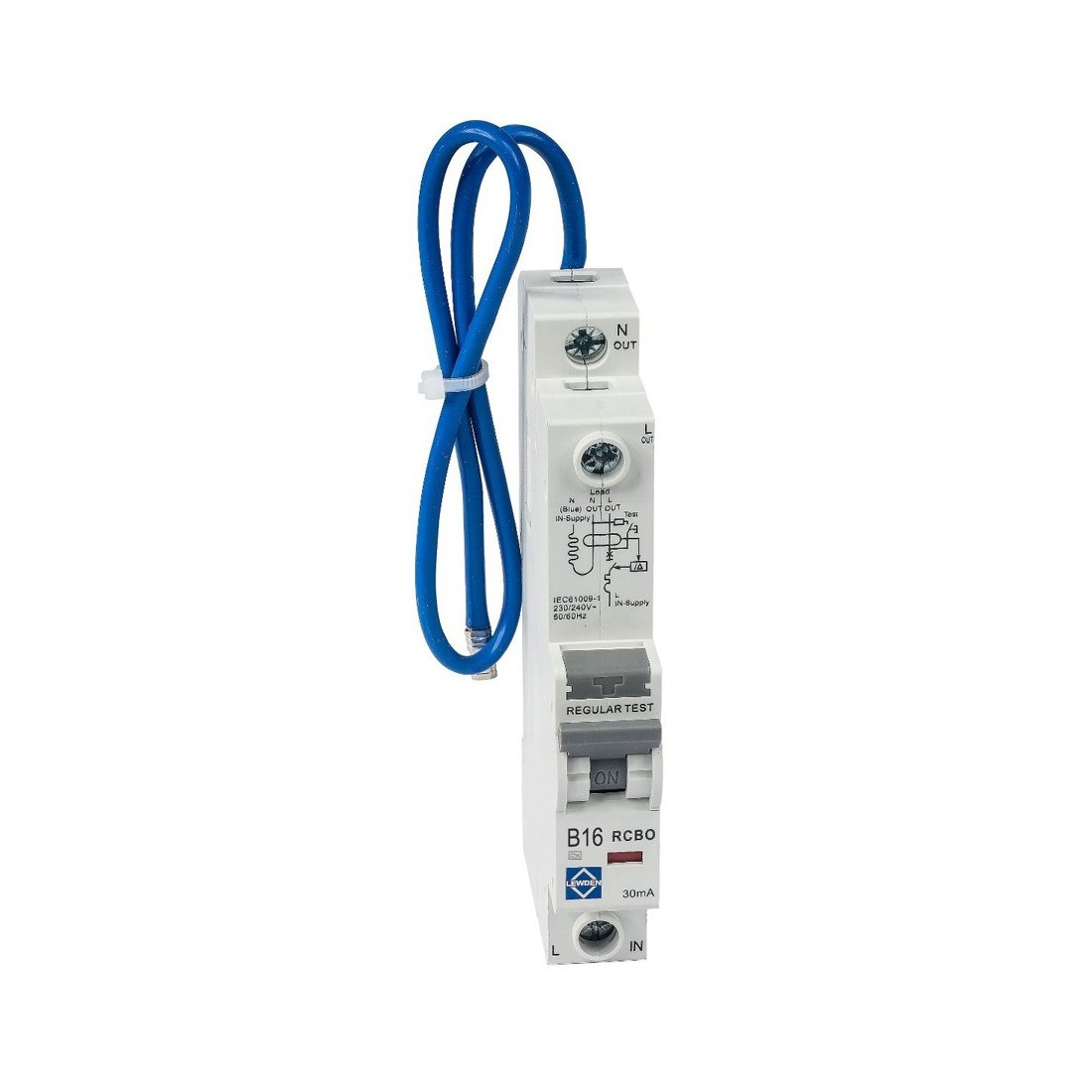

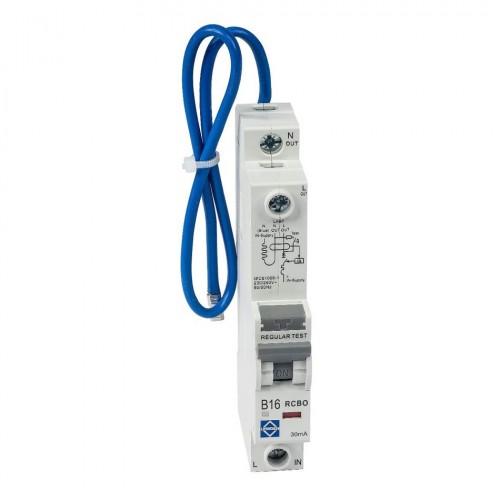

The Lewden RCBO-20/30/SPA is a 1 Module 20A 6kA 30mA Single Pole Type A RCBO with B tripping characteristics suitable for DIN rail mounting in the Pro range of residential consumer units.

These RCBOs provide residual current and earth leakage protection alongside overcurrent protection, all within one compact unit. Combining overcurrent and earth fault protection into one unit allows only the faulty circuit to be interrupted, ideal for improving the safety of circuits, protecting key circuits and reducing unnecessary tripping.

Their compact construction and 300mm blue neutral flying lead is ideal for fast, stress-free installations.

Certified to BS EN 61009-1

Lewden RCBO-20/30/SPA Features

• Lewden RCBO-20/30/SPA 1 Module RCBO
• Rating: 20A 6kA 30mA
• Din rail mounting
• Single Pole & unswitched neutral
• Tripping Characteristic: B
• Class 'A'
• Voltage Rating : 230V
• Protects against earth leakage, overload and short circuit
• Blue 300mm neutral flying lead (can be shortened)
• Max cable capacity 16mm²
• Tightening torque: 10Nm
• Designed for use in Lewden Pro range consumer units
• 18th edition compliant
• Standards: BS EN 61009-1
