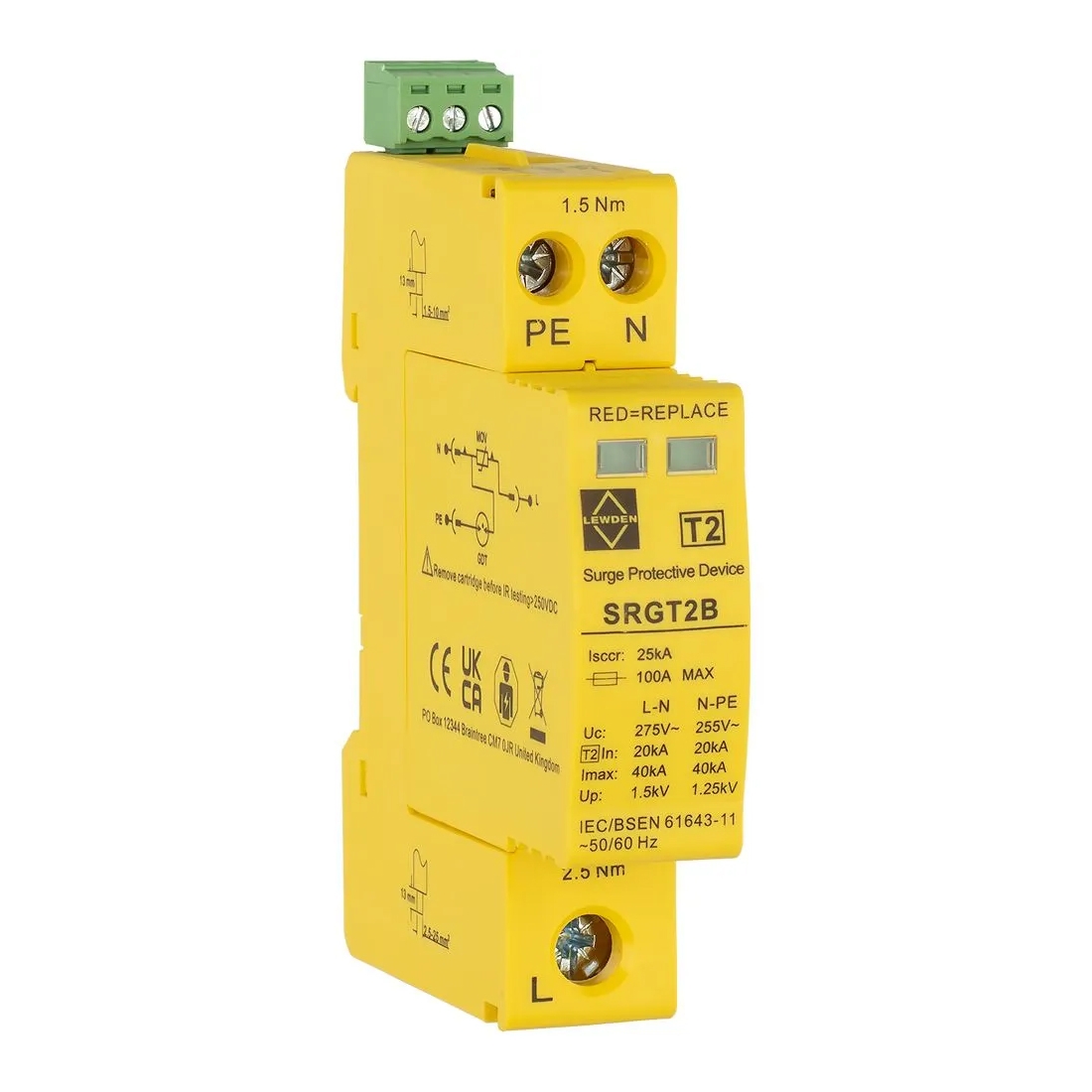

Lewden SRGT2B 1 Module DIN-Rail Mounting Single Phase Type 2 Surge Protection Device

Lewden SRGT2B 1 Module DIN-Rail Mounting Single Phase Type 2 Surge Protection Device

The SRGT2B is a Type 2 Single Phase SPD Surge Protection Device from Lewden and is designed to protect your electrical installations from damaging surges and transients.

Order code: SRGT2B
Manufacturer: Lewden
GTIN: 5026992053126

£ 22.79 incl. VAT
£ 18.99 excl. VAT

Trade Price: £ 32.10
You SAVE
£ 13.11 or 41%
Add to compare
Normally despatched within 1-2 working days
Normally despatched
within 1-2 working days

Lewden SRGT2B Description

The SRGT2B prevents the spread of overvoltages in your installation, such as man-made transients like switching surges and also the secondary effects of indirect lightning strikes.

Lewden SRGT2B Features

  • Fits directly to the comb busbar in PRO consumer units
  • No dedicated MCB required
  • Suitable for use with maximum back up fuse 100A
  • Suitable for TN-C-S / TN-S / TT network systems
  • Mechanical flag and volt free changeover signalling contact for end of life indication

Surge protective class: Type 2
Voltage Protection Level (Up) L/N: <1.5kV
Nominal discharge current (In/Imax) 8/20 μs: 20/40kA
Max continous operating voltage (Uc): 275 VAC
Config: 1+1 (Connection Type CT2)
Total Modules: 1
