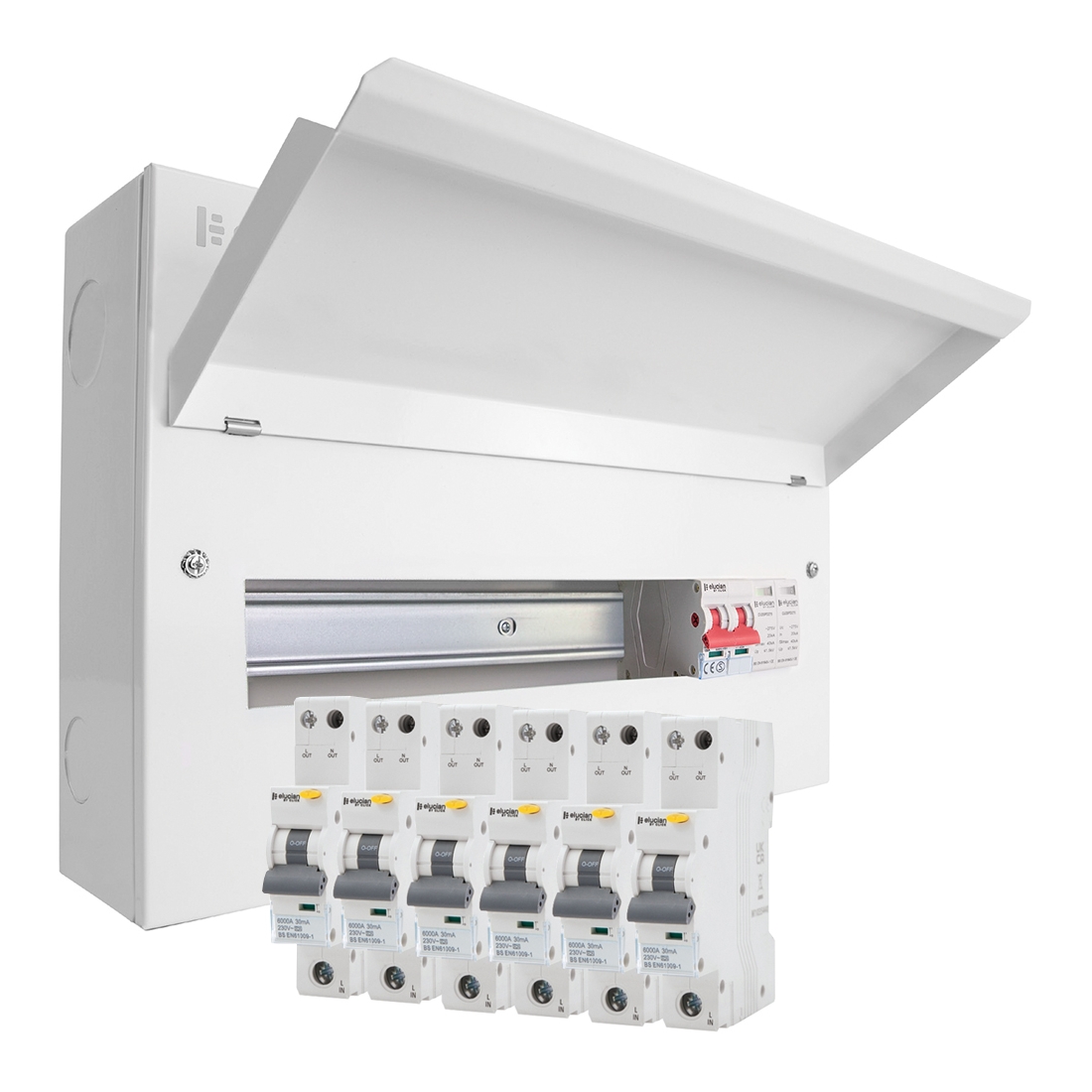

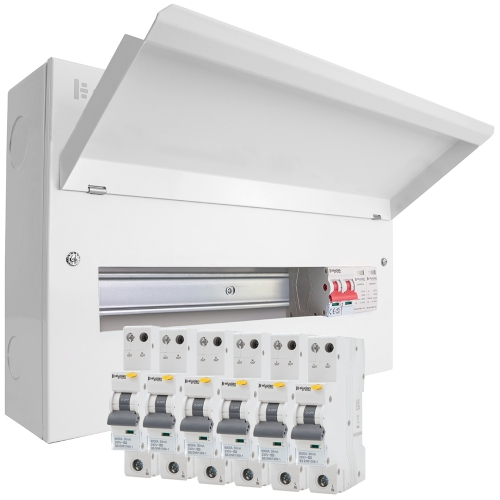

Scolmore CUEB12MSSP9 Elucian 12 Way Pre-Populated Surge Protected Switch Isolator Consumer Unit With 2x6A + 1x16A + 3x32A RCBOs & 3 Blank Modules

Scolmore CUEB12MSSP9-PP Description

The Scolmore Elucian CUEB12MSSP9-PP is a white metal 12 way surge protected consumer unit with 100A double pole mains switch isolator and variable knock-out sizes for versatile installation.
This unit is pre fitted with a 1 module Type 2 40kA SPD device to protect against lightning strokes and over voltages. The SPD device protects connected electrical and electronic equipment against transients, originating from lightning, switching of transformers, lighting and motors.
Supplied with 6 RCBOs, offering excellent circuit separation and protection for each circuit from both fault and earth leakage without the need for an RCD.
The live busbar has the shroud pre-fitted for extra safety and convenience. The neutral and earth busbars are supplied with backed off screws allowing a faster installation.
A mains switch tail clamp is pre-fitted for added stress relief to ensure the mains tail terminations do not come loose. It will accept a maximum of 25mm² double insulated tails.
Rear knockouts provide ample cabling capacity for any installation type. Each knockout is supplied with a 0.5M grommet strip to allow a smooth entry into the board, protecting cable from any potential sharp edges.
The non combustible and robust metal housing complies with the latest third amendment which was added to the BS 7671 wiring regulations in 2015 requiring consumer units in domestic premises to have a non-combustible enclosure.
This functional, stylish, IP20 rated consumer units seamlessly integrates into any residential or light commercial environment. Packed with features making installation quick and simple for electricians.

Scolmore CUEB12MSSP9-PP Features

• Scolmore CUEB12MSSP9-PP metal 12 way surge protected switch isolator consumer unit
• Supplied with 100A DP Switch Isolator
• Supplied with factory fitted 1 module Type 2 40kA SPD device
• Supplied with 6 RCBOs - 2x 6A, 1x16A, 3x 32A
• Supplied with 3 blank modules
• White high gloss non-combustible metal enclosure with plain door
• Mains switch tail clamp is pre-installed - suitable for 16mm² & 25mm² tails
• IP Rating: IP20
• Accepts the latest Elucian MCBs and miniature RCBOs
• Provides ample wiring space
• Shrouded live busbar for safety
• 18th Edition compliant
• Cable entries positioned for easy access to devices
• Supplied with a wide range of 40mm, 32mm, 25mm & 20mm knockouts. (Top, bottom & Sides)
• 1x 100 x 60mm rear knockout
• Grommet strip protectors prevent damage to cable caused by sharp edges
• Incoming Line/Neutral terminal: 50mm² | Incoming Earth Terminal: 16mm²
• Supplied with marking labels and installations instructions.
• Standards: BS EN 61439-3, BS EN 60947-3, BS7671 UK Wiring Regulation Compliant
• Dimensions: Width: 294mm | Height: 260mm | Depth:92mm
