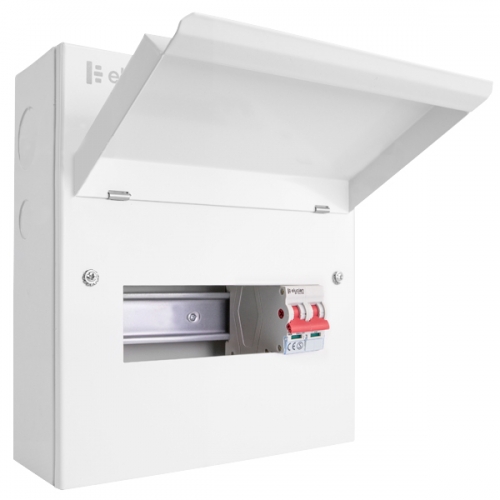

Scolmore CUEB8MS6 Elucian 8 Way 18th Edition Main Switch Consumer Unit With 100A Isolator - 6 Free Ways

Scolmore CUEB8MS6 Description

The Scolmore Elucian CUEB8MS6 is a white metal 8 way consumer unit with 100A double pole mains switch isolator and variable knock-out sizes for versatile installation.

Supplied with 6 free ways which can be populated with up to 6 RCBOs, offering excellent circuit separation and protection for each circuit from both fault and earth leakage without the need for an RCD.

The live busbar has the shroud pre-fitted for extra safety and convenience. The neutral and earth busbars are supplied with backed off screws allowing a faster installation.

A mains switch tail clamp is pre-fitted for added stress relief to ensure the mains tail terminations do not come loose. It will accept a maximum of 25mm² double insulated tails.

Rear knockouts provide ample cabling capacity for any installation type. Each knockout is supplied with a 0.5M grommet strip to allow a smooth entry into the board, protecting cable from any potential sharp edges.

The non combustible and robust metal housing complies with the latest third amendment which was added to the BS 7671 wiring regulations in 2015 requiring consumer units in domestic premises to have a non-combustible enclosure.

A comprehensive accessory pack contains a sticker set, grommet knockout strips, 2 x blank modules, a detailed instruction sheet and a live busbar, cover and caps for added insulation and installation completion.

This functional, stylish, IP20 rated consumer units seamlessly integrates into any residential or light commercial environment. Packed with features making installation quick and simple for electricians.

Scolmore CUEB8MS6 Features

• Scolmore CUEB8MS6 metal 8 way switch isolator consumer unit
• Supplied with 100A DP Switch Isolator
• 6 free useable ways
• White high gloss non-combustible metal enclosure with plain door
• Mains switch tail clamp is pre-installed - suitable for 16mm² & 25mm² tails
• IP Rating: IP20
• Accepts the latest Elucian MCBs and miniature RCBOs
• Provides ample wiring space
• Shrouded live busbar for safety
• 18th Edition compliant
• Cable entries positioned for easy access to devices
• Supplied with a wide range of 40mm, 32mm, 25mm & 20mm knockouts. (Top, bottom & Sides)
• 1x 100 x 60mm rear knockout
• Grommet strip protectors prevent damage to cable caused by sharp edges
• Incoming Line/Neutral terminal: 50mm² | Incoming Earth Terminal: 16mm²
• Supplied with 2 blanks
• Supplied with marking labels and installations instructions.
• Standards: BS EN 61439-3, BS EN 60947-3, BS7671 UK Wiring Regulation Compliant
• Dimensions: Width: 222mm | Height: 260mm | Depth:92mm
