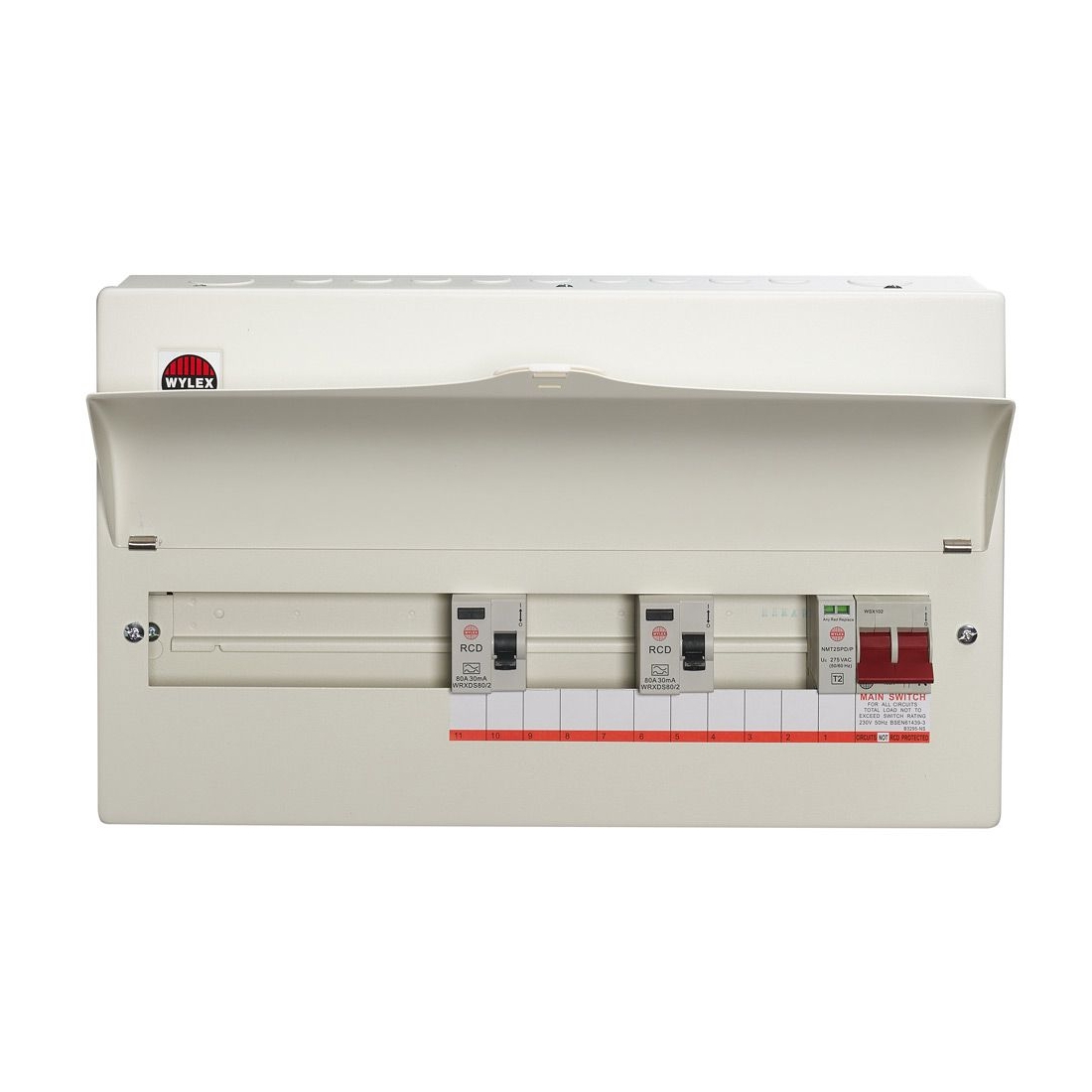

Wylex NMRS14SSLMHISA 14 Way Dual 80A RCD Metal High Integrity Surge Protected Consumer Unit With 100A Isolator

Wylex NMRS14SSLMHISA NM Range White Metal 18th Edition 14 Way Flexible Surge Protected High Integrity Twin RCD Consumer Unit With 100A Isolator, 2 x 80A 30mA Type A RCDs & Type 2 Mini Surge Protection Device

The Wylex NMRS14SSLMHISA 14 Way Metal Dual 80A RCD High Integrity Surge Protected Consumer Unit is an all-metal, high-integrity, 14 way consumer unit with 100A isolator switch & dual 80A 30mA Type-A RCDS.

Order code: NMRS14SSLMHISA
Manufacturer: Wylex
GTIN: 5013601110677

£ 210.68 incl. VAT
£ 175.57 excl. VAT

Trade Price: £ 938.86
You SAVE
£ 763.29 or 81%
Add to compare
Normally despatched within 1-2 working days
Normally despatched
within 1-2 working days

Wylex NMRS14SSLMHISA Description

The Wylex NMRS14SSLMHISA is a 14 way surge protected flexible high integrity twin RCD consumer unit that provides a high quality long lasting installation for domestic and residential applications.

This high integrity consumer unit offers 14 fully configurable ways arranged over three separate banks of circuits. Features an integral type 2 mini surge protection device negating the need for a risk assessment.

Loaded with 100A isolator, 2 x 80A 30mA type A RCD incomers and a type 2 mini surge protection device. It accepts the latest Wylex MCB and miniature RCBOs.

The modern curved design blends into its surroundings and the metal enclosure is painted in low smoke and fume paint ensuring compliance with the latest 18th edition wiring regulations.

Offers generous cable room with neutral and earth bars mounted on the top of the enclosure. Cable entry knockouts are available on 5 sides, top, bottom, left, right, and rear.

Tested in accordance to BS EN 61439-3. it includes comprehensive user instructions and high quality sub circuit identification labels.

Wylex NMRS14SSLMHISA Features

  • Wylex NMRS14SSLMHISA surge protected flexible high integrity twin RCD consumer unit
  • 14 useable ways, 21 module enclosure
  • White all curved fully metal enclosure
  • Low smoke and fume paint
  • IP Rating: IP2XC
  • Highly flexible in configuration permitting any combination of RCD protected ways
  • Flexible Busbar allowing the user to choose how they configure the split-load
  • Rating: 230V - 240V
  • 100A double pole main switch isolator
  • 2 x 80A 30mA Type A RCDs
  • 1 module type 2 mini surge protection device
  • Accepts the latest Wylex MCB and miniature RCBOs.
  • Cable entry knockouts on 5 sides, top, bottom, left, right, and rear
  • Generous cable room with neutral and earth bars mounted on the top of the enclosure
  • Circuit identification labels providing clear understanding of outgoing ways
  • Standards: BS EN 61439-3
  • Dimensions: Height: 261mm | Width: 438mm | Depth: 121mm
