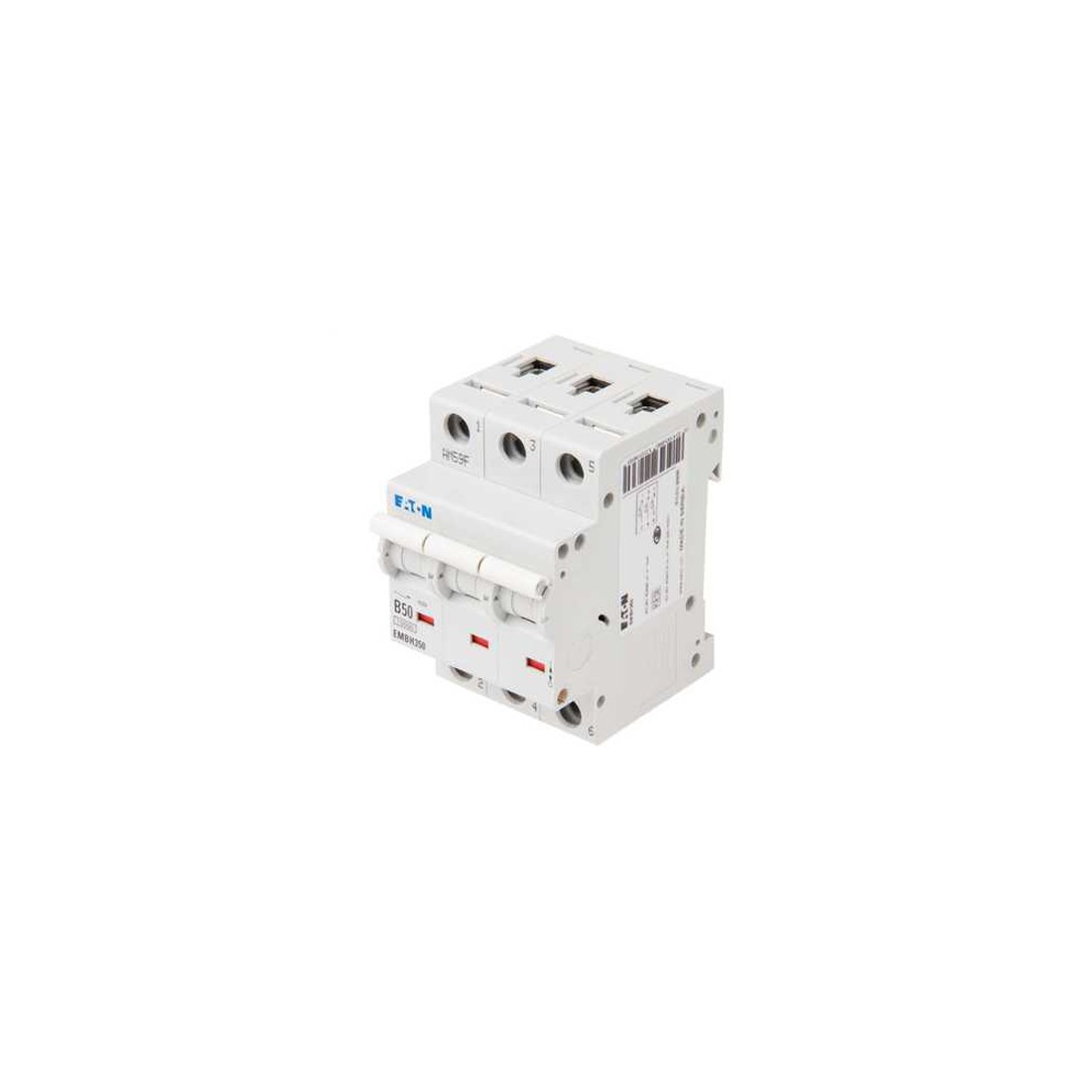

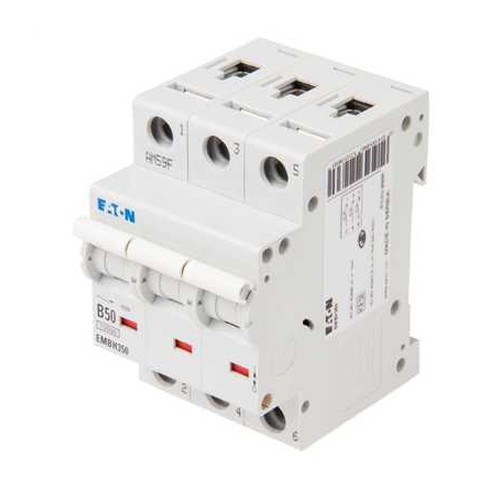

Eaton EMBH350 Memshield3 3 Module Triple Pole Type B Miniature Circuit Breaker MCB 50A 10kA/15kA

Eaton EMBH350 Description

The Eaton Memshield3 EMBH350 is a 3 module type B triple pole 50A miniature circuit breaker MCB designed to fit the Memshield3 range of type B Distribution Boards. Has a modular design that is DIN rail mountable.

Meets the latest UK, European and International standards it has a dual short circuit breaking capacity of 10kA to IEC 60898 and 15kA to IEC 60947-2.

Detects overcurrent due to both overload and fault currents. The MCB will operate and interrupt the supply to prevent damage to the installation.

Has a positive indication for On or Off. The operating dolly may be locked in either the ON or OFF position without affecting the ability of the trip mechanism to operate.

Designed to deliver safe, reliable and high performance protection on electrical power distribution systems.

Eaton EMBH350 Features

• Eaton EMBH350 3 module triple pole miniature circuit breaker MCB
• Trip curve: Type B
• Rating: 50A
• Rated breaking capacity 10kA to IEC 60898 and 15kA to IEC 60947-2
• Modular design, DIN rail mountable
• Can be used with both pin and comb type busbars
• Positive contact indication (red-on, green-off)
• Box clamp terminal suitable for cables up to 25mm²
• Box clamp barrier to prevent incorrect cable/busbar insertion
• Calibrated at 40°C
• Designed to meet the latest UK, European and International standards
• Rated: IP20
• Dimensions: Height: 80mm | Width: 54mm | Depth: 60mm
