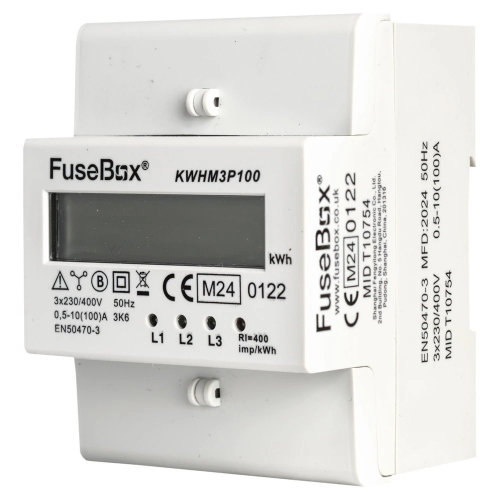

Fusebox KWHM3P100 4 Module Digital MID Approved Direct Connected kWh Energy Meter For Commercial Installations
The Fusebox KWHM3P100 4 module 100A 3-phase DIN-Rail energy meter, designed to provide precise measurement and monitoring of electrical consumption in commercial and light industrial settings. Perfect for sub-metering applications, allowing you to accurately monitor the energy usage of a specific machine, a distribution board, or a separate commercial unit.
Order code: KWHM3P100
Manufacturer: Fusebox
GTIN:
Notify me by email when product is available
Normally despatched
within 3-4 working days
within 3-4 working days
Fusebox KWHM3P100 Description
The Fusebox KWHM3P100 4 module 100A 3-phase DIN-Rail energy meter, designed to provide precise measurement and monitoring of electrical consumption in commercial and light industrial settings. Perfect for sub-metering applications, allowing you to accurately monitor the energy usage of a specific machine, a distribution board, or a separate commercial unit.
Direct-connected meter with a current rating of up to 100A, eliminating the need for complex current transformers (CTs).
MID (Measuring Instruments Directive) certified, meaning it is legally approved for billing purposes. An essential feature for landlords or property managers who need to bill tenants based on their actual electricity consumption.
Designed for accurate measurement of three-phase, four-wire circuits
4 module (72mm) design takes up minimal space in the distribution board.
Quick and secure mounting on a standard 35mm DIN rail, ensuring a hassle-free and professional installation.
Features a clear digital display that shows total energy consumption in kilowatt-hours (kWh).
Includes a pulse output, which allows for remote monitoring and integration with building management systems or other data logging devices.
Fusebox KWHM3P100 Description
- Fusebox KWHM3P100 4 module 100A 3Ph DIN-Rail Energy Meter
- Measures up to 100A across three phases for dependable consumption tracking
- High accuracy – Delivers precise energy monitoring ensuring reliable performance
- Designed for commercial and industrial installations where three-phase power is standard
- Digital LCD display – Clear, easy-to-read screen for quick access to energy usage data
- Space-saving DIN rail mounting makes installation simple and efficient
- Ideal for EV charger installations, consumer units, and sub-metering needs
- Helps monitor and manage electricity usage, reducing waste and improving cost control
- Built to withstand demanding electrical environments with long-lasting performance
