Fusebox RTA101030B 1 Module Single Pole Type A B Curve RCBO For Commercial Installations 10A 10kA 30mA

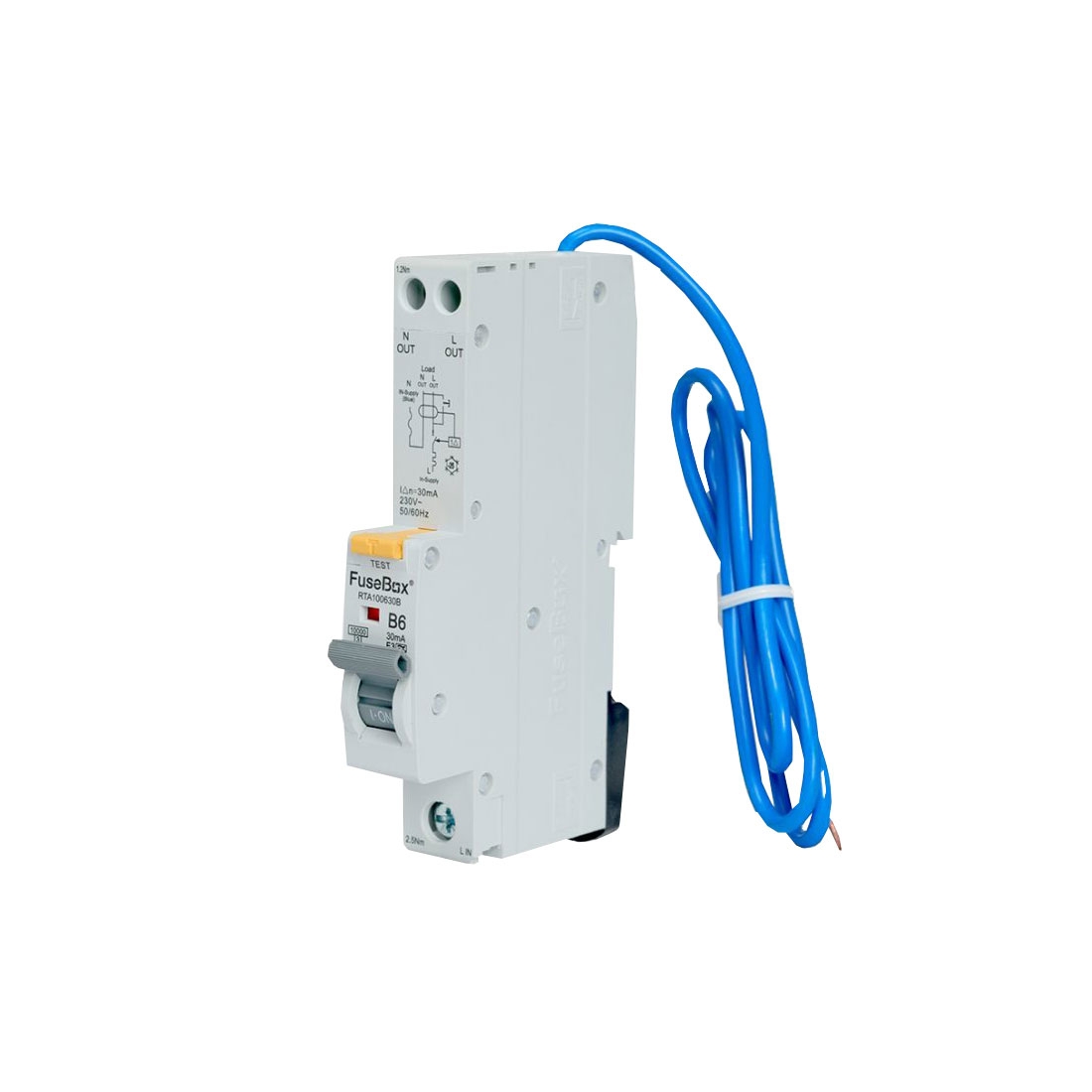

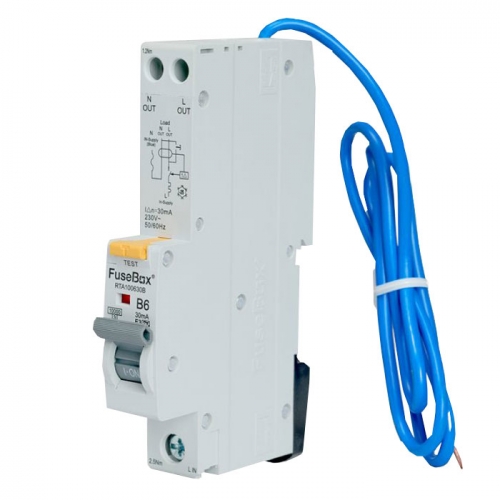

Fusebox RTA101030B Description

The Fusebox RTA101030B is a 1 module 10A 10kA 30mA single pole type A RCBO with B curve tripping characteristics suitable for din rail mounting in Fusebox type B TPN distribution boards in commercial / industrial installations.

Compact 18th edition compliant protection device which combines the overcurrent functions of an MCB with the earth fault functions of an RCD in a single circuit protection device. It occupies a single outgoing way on the din rail.

Feature an earth leakage tripping current rating of 30mA and a prospective fault current of 10kA. Supplied with an insulated flying neutral lead for connecting to neutral terminal of distribution board.

Commonly used in light commercial environments such as offices with large fluorescent or LED lighting circuits.

Fusebox RTA101030B Features

• Fusebox RTA101030B 1 module single pole + solid neutral RCBO
• Combines overcurrent functions of an MCB with the earth fault functions of an RCD
• Residual current type: Type A
• Rating: 10A 10kA 30mA
• Tripping Curve: B curve
• Rated operational voltage: 230/240V~
• Insulated flying neutral lead
• Din rail mounted
• Terminal Capacities 25mm² rigid / 16mm² flexible
• Complies with the current 18th Edition Regulations
• Standards: BS EN 62606 / IEC 61009-1
