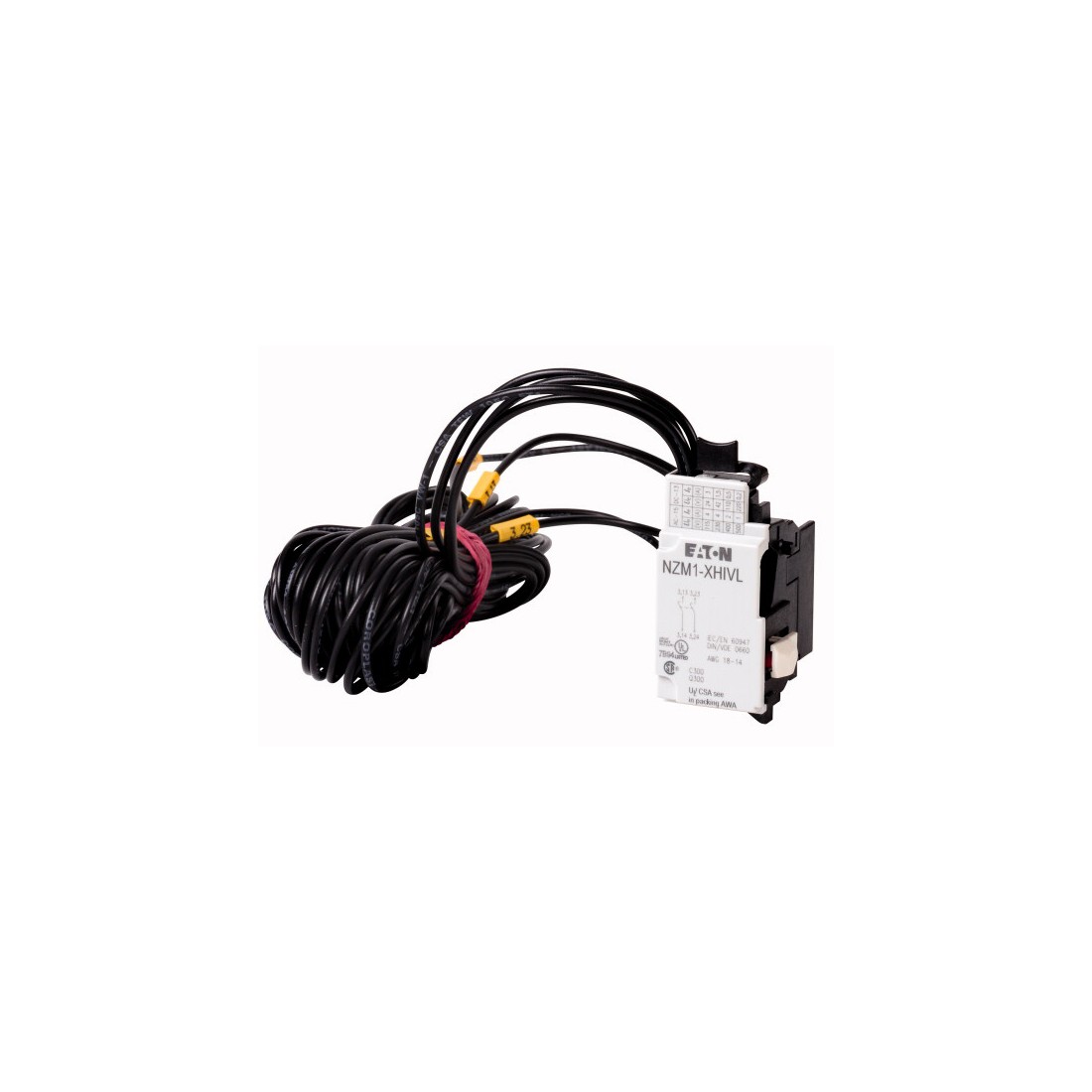

Eaton 259744 Memshield3 208-250V AC/DC Shunt Trip For Memshield3 NZM1 Switch Isolators + MCCBs

Eaton 259744 Description

Eaton 259744 Memshield3 208-250V AC/DC Shunt Trip For Memshield3 NZM1 Switch Isolators + MCCBs

Eaton Memshield3 MCCB panelboards are designed to meet the requirements of IEC61439-2. Form 3b Type 2.

Available in two options that accommodate incoming devices rated up to 400A and with 4, 6 and 12 outgoing ways.

The extended product range offers a variety of incoming devices and a greater choice of outgoing MCCB devices providing the installer with more flexibility and choice.

In addition, special metering and surge arresting accessories are available to complete the range.

Features:

• Panelboards to IEC61439-2. Form 3b Type 2
• Busbar system KEMA certified 50kA Icc, Icw 35kA 1s
• IP3X construction • MCCBs to IEC60947-2. kA ratings shown are Ics=Icu at 400V ac
• Switch disconnectors to IEC60947-3
• Tin–plated busbars
• Can be configured for incomer device at top of panelboard
• Removable side gland plates as standard
• Wide range of extension boxes, metering, surge protection, and earth leakage incomer options available
