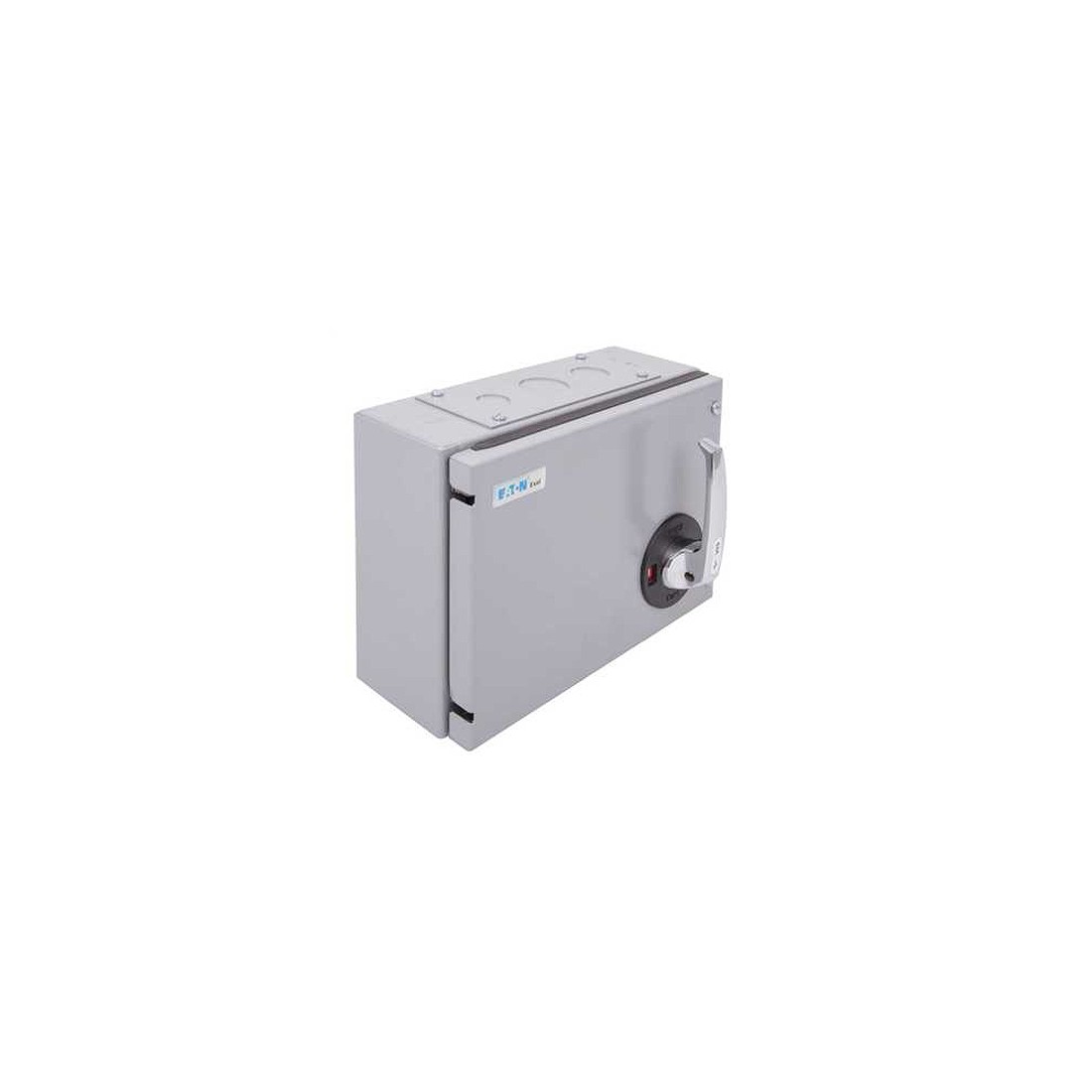

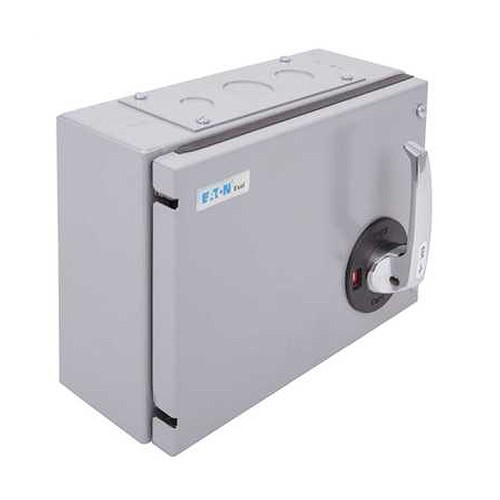

Eaton 60AXD2 Exel2 Grey Metal Three Phase DP Switch Disconnector 63A 415V Height: 230mm | Width: 310mm | Depth: 129mm
The Eaton Excel2 60AXD2 is a three phase 415V 63A double pole switch disconnector designed to isolate and cut-off the current supply with downstream electrical installations for safety purposes during maintenance.
within 5-7 working days
Eaton 60AXD2 Description
The Eaton Exel2 60AXD2 is a three phase 415V 63A double pole switch disconnector designed to isolate and cut-off the current supply with downstream electrical installations for safety purposes during maintenance.
Surface mounted and fabricated from rust-protected sheet steel with a light grey paint finish. Supplied with removable top and bottom endplates and gasketed doors giving IP41 protection. Chromium-plated, front-operated handle with with 'ON (I) OFF (O)' indicators. Internal fixing enabling units to be mounted closely side-by-side.
Switches are of the quick make and break type, suitable for use on AC or DC. Units have removable moving contact assemblies to facilitate wiring. Interiors comprise porcelain bases fitted with non-ferrous conducting components.
Type tested to BSEN60947-3 and meets the constructional requirements for isolation as specified in BSEN60947-3.
Maximum cable size 35mm².
Eaton 60AXD2 Features
- Eaton Exel2 60AXD2 is a 3-phase double pole switch disconnector
- 63A 415V AC rated
- Surface mounted
- Fabricated from rust-protected sheet steel
- Light grey paint finish
- Removable top and bottom endplates incorporating knockouts
- Gasketed doors giving IP41 protection
- Chromium-plated, front-operated handle with with 'ON (I) OFF (O)' indicators
- Switches are of the quick make and break type, suitable for use on AC or DC
- Red and green switch position indicators
- Switch can be locked on or off by means of a padlock
- Interiors comprise porcelain bases fitted with non-ferrous conducting components
- Large capacity easy to wire terminals
- Suitable for 35mm² cable
- Internal fixing enabling units to be mounted closely side-by-side
- Tested and approved in accordance with BSEN60947-3
- Dimensions: Height: 230mm | Width: 310mm | Depth: 129mm
