Lewden FS6380100 White Metal Single Phase Switch Fuse With 63A + 80A + 100A Fuses For Domestic Installations IP40 100A Width: 135mm | Height: 250mm | Depth: 87mm

Lewden FS6380100 Description

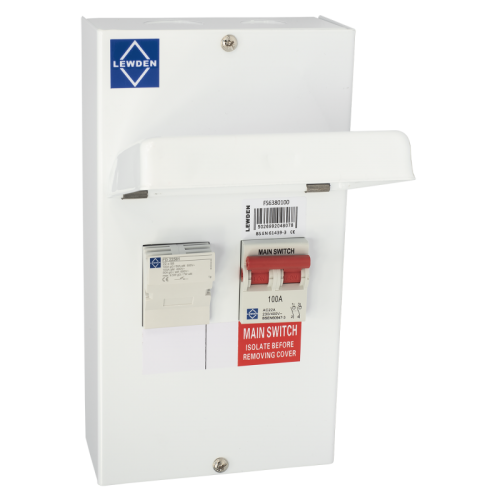

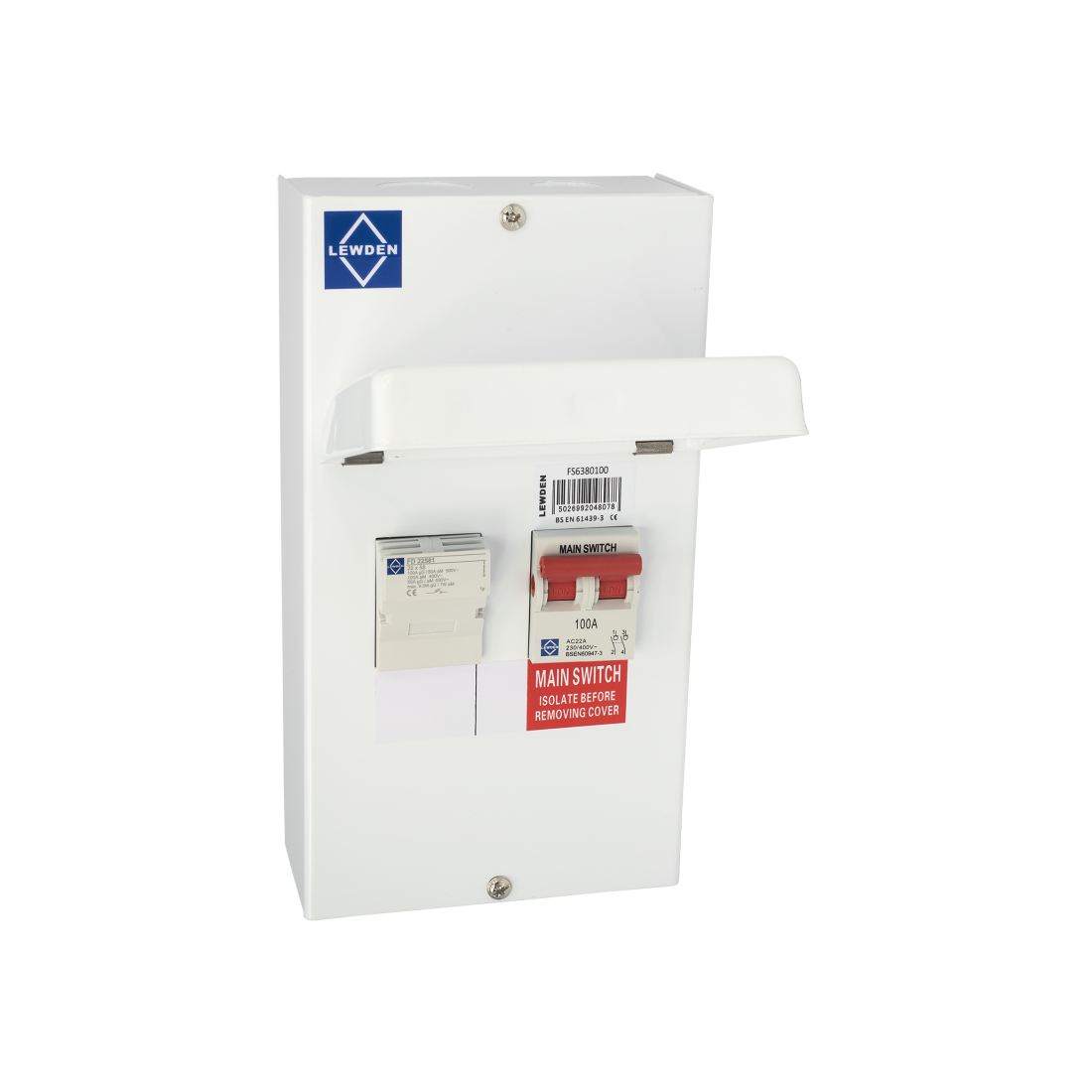

The Lewden FS6380100 is a white metal IP40 rated single phase switch fuse supplied with 63A + 80A + 100A fuses suitable for domestic installations.

Ideal for the isolation of incoming supplies up to 100A. The strong, robust steel enclosure with extra height and space allowing for easier wiring. Suitable for wall mounting.

Earth bond to lid and designated easy earth terminal connection. The Lewden FS6380100 is designed with large 25mm + 32mm top and bottom knockouts and 35mm² maximum cable capacity. This 100a switch fuse is perfect for SWA glanding.

Fully tested and compliant with BS EN 60947-3.

Lewden FS6380100 100A switch fuse Features

• Lewden FS6380100 single phase 100A switch fuse
• 100A rated
• Single Phase and Switched Neutral
• AC21 switching of resistive loads
• Suitable for domestic installations
• IP rating: IP40
• Supplied with 63A + 80A + 100A fuses
• Strong, robust white steel enclosure with extra height and space allowing for easier wiring
• Ideal for the protection and isolation of incoming supplies up to 100A
• Now available with 5 modules for better heat dissipation
• Designated easy earth terminal connection
• Earth bond to lid
• Large knockouts 25 + 32mm top and bottom
• Maximum cable capacity: 35mm²
• Perfect for SWA glanding
• Suitable for wall mounting
• 18th Edition compliant
• Standards: BS EN 60947-3, BS EN 61439-3
• Dimensions: Width: 135mm | Height: 250mm | Depth: 87mm
