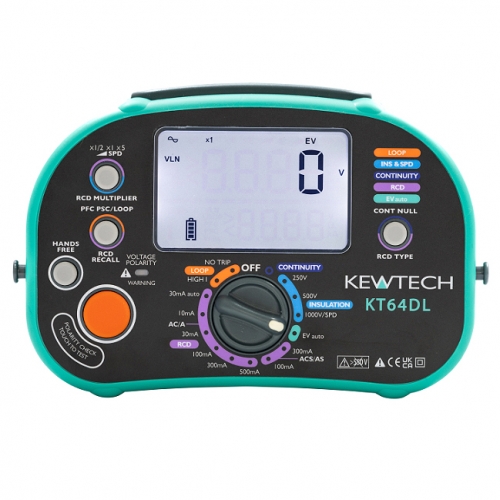

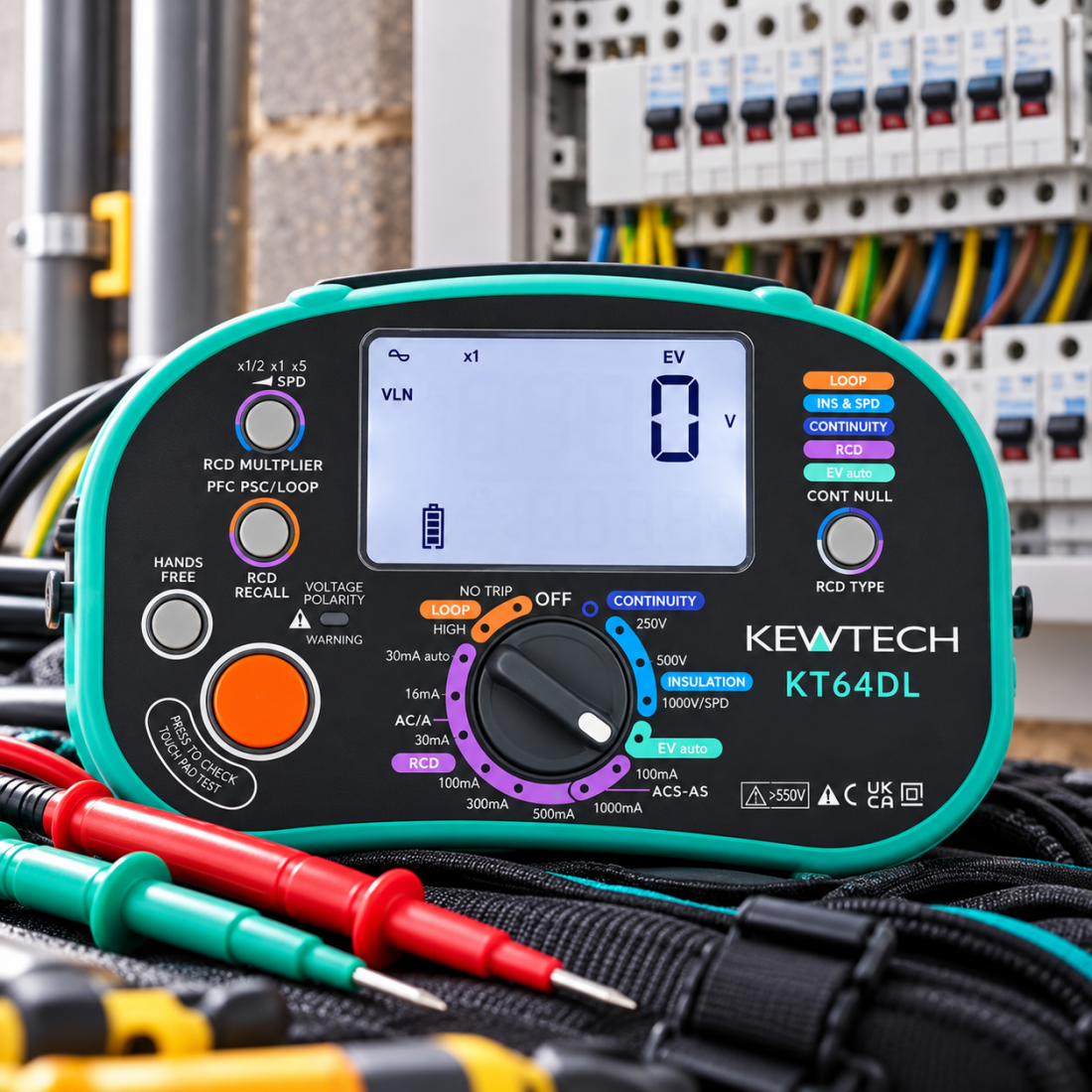

Kewtech KT64DL 7-in-1 Multifunction Tester With Insulation, Continuity, Loop Impedance Testing, PSC/PFC Testing, Auto RCD/SPD Test & Test Probe

Kewtech KT64DL Description

The Kewtech KT64DL Multifunction Tester packs an extensive range of electrical testing functions into what Kewtech describes as the UK's smallest MFT with EV testing. It provides continuity, 250V/500V/1000V insulation resistance, loop impedance, PSC/PFC and RCD testing, alongside dedicated SPD testing and 6mA DC EV charge point testing. Kewtech's Anti-Trip Technology enables full no-trip loop testing on RCD-protected circuits, while PSC and PFC results are displayed alongside the loop reading for efficient testing. The straightforward single rotary dial, large auto-backlit display, hands-free test function and magnetic base are designed to make the KT64DL easy to use in distribution boards and other working environments. Supplied with test leads, mains lead, batteries, soft carry case and an end-of-line calibration certificate, it provides a comprehensive testing package for professional electrical contractors.

Kewtech KT64DL Features

• Compact and lightweight design – described by Kewtech as the UK's smallest MFT with EV testing
• IP rating: IP54, including when test leads are disconnected
• Continuity testing: >200mA test current with auto-null function
• Switchable continuity buzzer
• Insulation resistance testing: 250V / 500V / 1000V
• Automatic discharge following insulation testing
• High-voltage warning LED for insulation tests
• Loop impedance testing: ATT low-current no-trip and high-current testing
• Anti-Trip Technology for no-trip loop testing on RCD-protected circuits
• High-current loop testing with 0.001Ω resolution
• PSC/PFC testing with results displayed alongside the loop reading
• RCD testing: Type AC, ACS, A and AS
• Type AC RCD testing at 10mA, 30mA, 100mA, 300mA and 500mA
• Type A RCD testing at 10mA, 30mA, 100mA and 300mA
• RCD Auto Test for 30mA RCDs
• RCD Ramp Test function
• EV charge point testing: 6mA DC RDC-DD test at 0° and 180°
• SPD testing for surge protection devices
• SPD/breakdown voltage measurement range up to 1000V
• Automatic mains polarity check
• Continuous live-voltage detection helps protect the tester during dead testing
• Instant wiring status indication
• Ultra-slim probe tips provide improved access to push-fit connector blocks
• Gold-plated probe tips for consistent readings
• Hands-free testing mode
• Single rotary dial for straightforward function selection
• Large auto-backlit LCD display
• Unique magnetic base allows hands-free attachment to metal cabinets and distribution boards
• Test lead auto-null for continuity testing

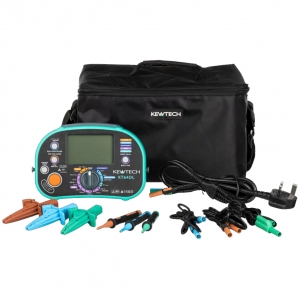

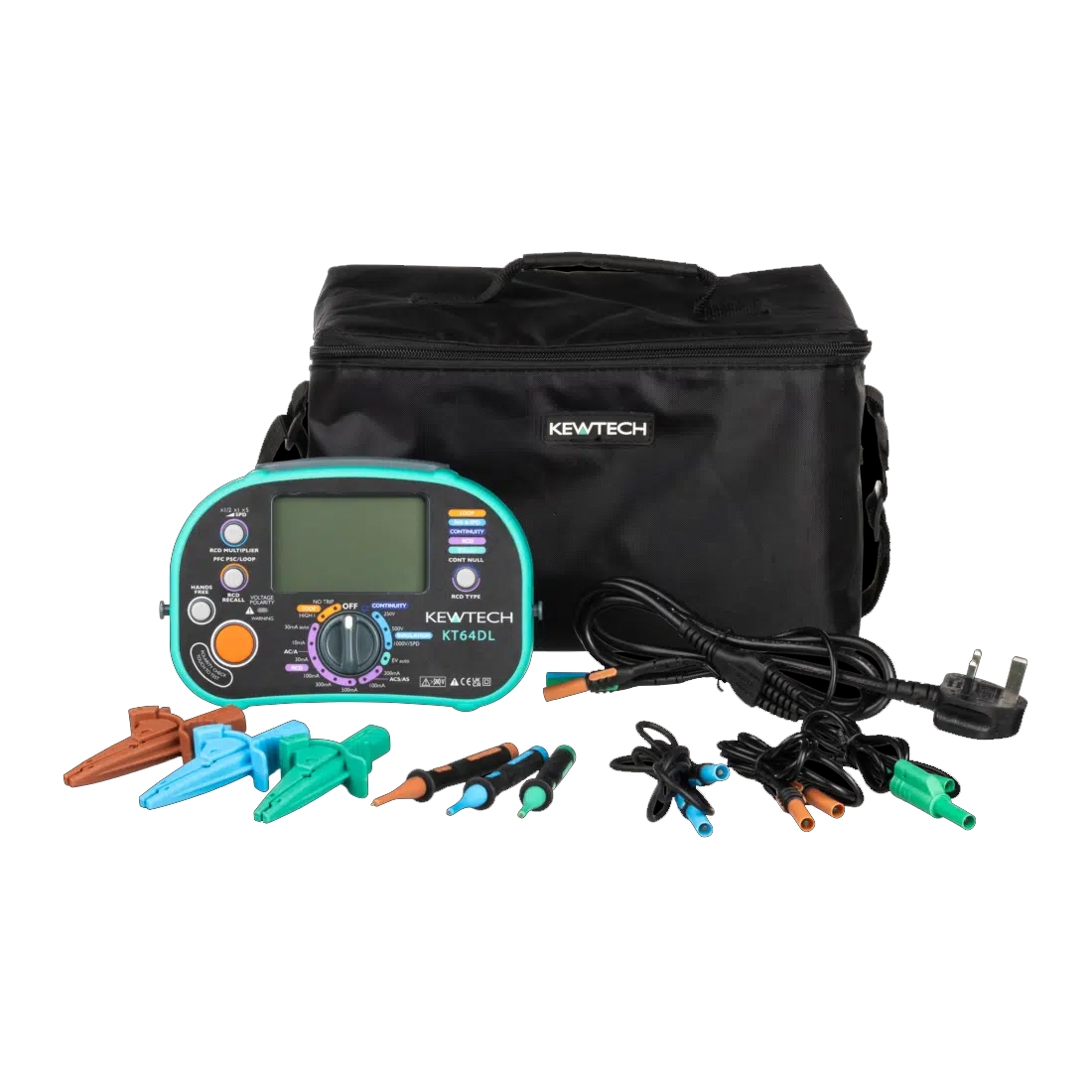

• Supplied with ACC063 distribution board test lead set
• Supplied with KAMP12 mains lead
• Supplied with batteries
• Supplied with printed instruction manual
• Supplied with soft carry case
• End-of-line calibration certificate included
• Compatible with optional KEWEVA EV testing adapter
• Compatible with optional PAT ADAPTER1 for PAT testing
• EAN: 5060084081239
