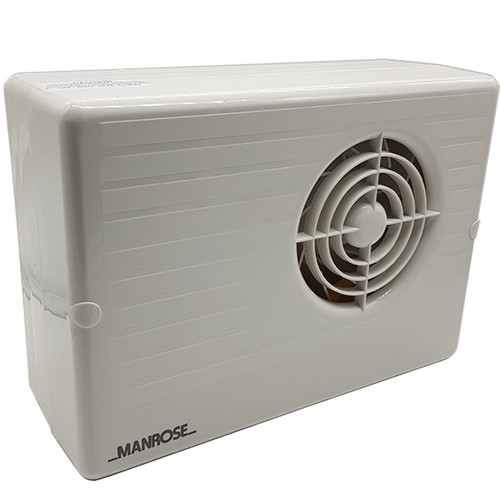

Manrose CF200S White Thermoplastic Centrifugal Fan For Remote Switching IP20 240V Height: 185mm | Width: 260mm | Spigot DiaØ : 100mm

Manrose CF200S Description

The Manrose CF200S is a white centrifugal extractor fan suitable for remote switching that provides extremely powerful, yet very quiet and vibration free ventilation in domestic bathrooms, toilets, cloakrooms and utility rooms.

Designed to move air over long distances, it has a backward curved centrifugal impeller for a large airflow that will give maximum performance even against pressures caused by long lengths of ducting and resistance by grilles. Can be ducted up to 10m without significant loss of power,

Designed to be mounted on walls or ceilings and discharged through a 100mm (4") standard rigid or flexible duct, and are also suitable for use with flat duct channel systems.

Power is provided by a single phase induction motor with pre-oiled bearings for a long, maintenance free life.

Fitted with a built-in spring operated non-return flap into the discharge spigot to stop backdraughts.

The units are all manufactured using high impact ABS thermoplastics for strength and durability, aesthetics and easy cleaning.

Designed to comply with the 2006 Building Regulations on Ventilation (F1), rated to IP24.

Manrose CF200S Features

• Manrose CF200S 4 inch centrifugal fan suitable for remote switching
• Switched ON and OFF using light switch
• White high gloss ABS thermoplastic for strength, durability aesthetics and easy cleaning
• Mains voltage: 220-240V - AC. 50Hz
• IP rating: IP44
• Ideal for utility rooms, kitchens or larger toilet and bathrooms Zone 2
• Designed to be mounted on walls or ceilings to a minimum of 1.8 metres from the floor
• Moves air over long distances, giving maximum performance against pressures caused by long lengths of ducting and resistance by grilles
• Suitable for use with rigid or flexible duct and flat duct channel systems
• Fan should not be accessible to a person using either the shower or bath
• Provides extremely powerful, yet very quiet and vibration free ventilation
• Double insulated and does not require an earth
• Fitted with a built-in spring operated non return flap into the discharge spigot to prevent backdraughts
• Powered by induction motor with pre-oiled bearings for long life
• Comprehensive wiring and installation instructions are included
• Air discharged through 100mm (4") diameter flexible or rigid pipes
• Maximum pressure: 120 p.a.
• Fan speed: 1400 r.p.m.
• Sound volume: 45.0 dB(A)
• Extract rate 110m³/hr | 31 litres per second
• All wiring must comply with current IEE regulations
• Complies with 2006 Building Regulations on Ventilation (F1)
• Dimensions: Height: 185mm | Width: 260mm | Spigot DiaØ : 100mm
