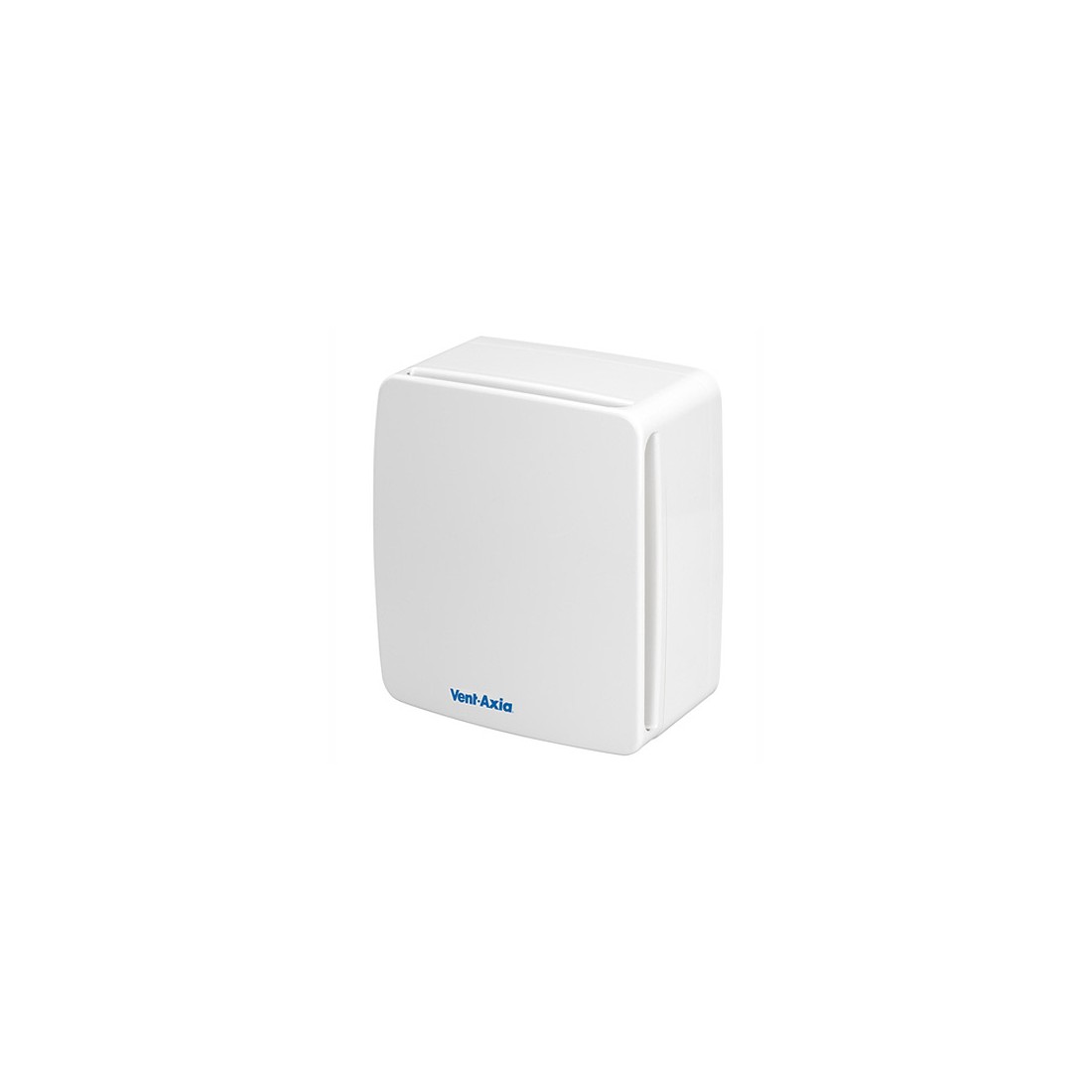

Vent-Axia 431616 Centrif Duo Plus HTP White Dual Speed / Continuous Centrifugal Fan With Humidistat, Adjustable & Timer Pullcord IPX4 240V Height: 231mm | Width: 231mm | Spigot DiaØ : 100mm
within 5-7 working days
Vent-Axia 431616 Description
Vent-Axia 431616 Centrif Duo Plus HTP White Dual Speed / Continuous Centrifugal Fan With Humidistat, Adjustable & Timer Pullcord IPX4 240V Height: 231mm | Width: 231mm | Spigot DiaØ : 100mm
Vent-Axia Centrif Duo Plus centrifugal kitchen fans are designed to provide extraction levels that comply with Building Regulation requirements, with special humidity sensing variants for local authority use.
Suitable for surface mounting directly into standard 100mm diameter ducting, through the wall or ceiling installation in kitchens and utility rooms and large bathrooms.
The Centrif Duo Plus has a 100mm circular spigot. The Flush mounting kit enables the spigot to be converted to a side outlet. The spigot also encloses a built-in, spring operated backdraught shutter.
Humidistat is selectable for either kitchen or utility speed separate to any other control to reduce nuisance noise. Boost operation by pullcord or switch live.
Brand : | Vent-Axia |
Part No : | 431616 |
GTIN : | 5015135461324 |
Colour : | White |
Product Range : | Centrifugal Fans |
Dimensions : | (H)261 mm x (W)231 mm x (D)140 mm |
Mounting : | Wall / Ceiling |
Height : | 261mm |
Frequency : | 50/60 Hz |
Guarantee : | 2 Years |
Depth : | 140mm |
Power Rating : | 60W |
Operation Type : | Pullcord + Timer [1 - 30 mins]+ Humidistat [65 - 90%] + Remote Switch for Boost Function |
Automatic : | No |
Airflow Cubic Metresper Hour : | 220 m³/h |
Airflow Litresper Second : | 61 l/s |
Decibel Rating : | 51.8 dB[A]@3m |
Humidistat : | Yes |
Hole Size : | 115mm |
Ducting Size : | 100mm |
Weight : | 1.750kg |
