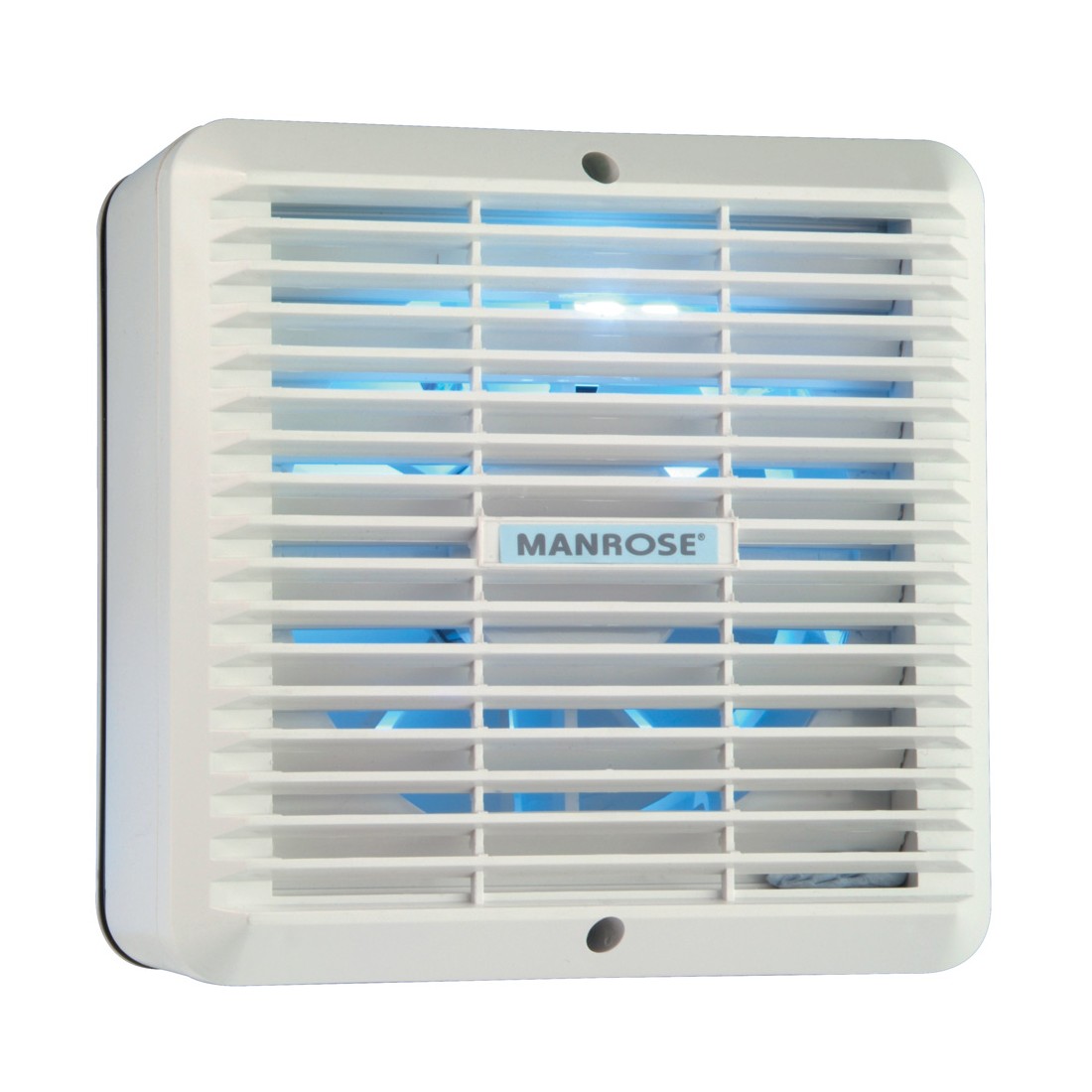

Manrose COMCW150A Commercial Series Grey Wall Automatic Fan With Internal Thermo-Activated Shutters IP20 240V Height: 205mm | Width: 205mm | Spigot DiaØ: 150mm

Manrose COMCW150A Description

These fans are all manufactured using high impact ABS thermoplastics for strength and durable aesthetics. The easy cleaning ABS is also of recyclable material.

The 150mm version is fitted with a shaded pole motor with pre-oiled bearings for a long maintenance free life.

Also available is ths COMTSCV stylish variable speed controller.

Installation

Wall or ceiling mounting through 173mm Ø hole.

Electrical

220-240V - AC 50Hz.

Single phase consuming 45 watts. These fans are double insulated and do not require an earth. All wiring must comply with current IEE regulations.

A double pole (DP) isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted.

The fan must not be accessible to a person using either the shower or bath and mounted a minimum of 1.8m from the floor.

Technical Specification

Maximum pressure: 50 p.a.

Fan speed: 2400 r.p.m.

Sound volume: 40.0 db(A)

Maximum operating temperature: 40°C

Dimensions:
