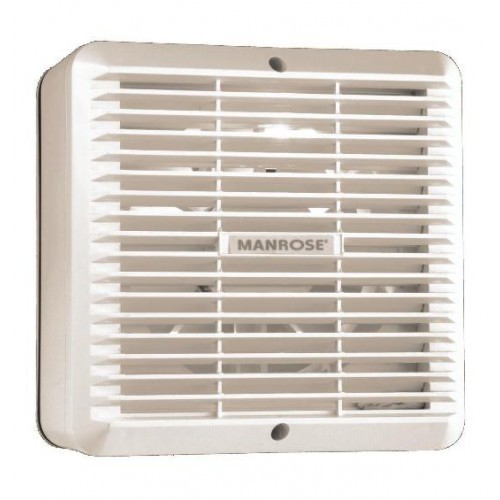

Manrose COMG150MP Commercial Series Grey Window Manual Fan With Internal Pullcord Shutters IP20 240V Height: 205mm | Width: 205mm | Spigot DiaØ: 150mm

Manrose COMG150MP Description

Formerly sold as the Emma EMF4 Extractor Fan - all specifications are exactly the same.

Another feature of the range is that the external grille is moulded in a dark grey so it will not be too obtrusive on the window line, and blend into any background. The grey commercial sereis does not require as much cleaning as their white counterparts.

Available with automatic shutters or pullcord operated shutters.

Installation

Window fitting through 184mm Ø hole.

Electrical

220-240V - AC 50Hz.
Single phase consuming 45 watts. These fans are double insulated and do not require an earth. All wiring must comply with current IEE regulations.

A double pole (DP) isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted.

The fan must not be accessible to a person using either the shower or bath and mounted a minimum of 1.8m from the floor.

Technical Specification

Maximum pressure: 50 p.a.

Fan speed: 2400 r.p.m.

Sound volume: 40.0 db(A)

Maximum operating temperature: 40°C
