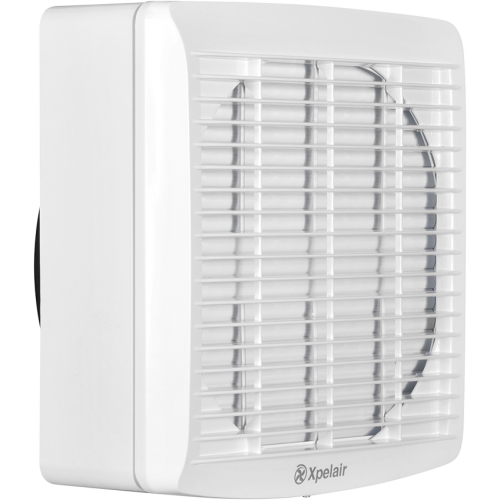

Xpelair GX9C 89995AW White Commercial Single Speed Axial Window Fan With Pullcord & Window Kit IPX4 240V Height: 312mm | Width: 294mm | Spigot DiaØ: 225mm

Xpelair GXC9 Description

Features

• High performance intake/extract axial ventilation unit.
• Choice of optional controllers.
• Suitable for single and sealed double glazing windows and panels up to 25mm.
• Balanced external rotor motor and sickle blade impeller for quiet efficiency.
• Sealed for life maintenance free bearings, suitable for running at any angle.
• Built-in silent action electro-thermal shutter cassette.
• Passive tricklevent facility for background ventilation with fan Off.
• Easy clean high gloss ABS housing with integral finger safety guard.
• Shadow grey external grille for unobtrusive external appearance.
• Tamperproof internal connection safety plug and socket.
• Unique metal ladderstrip / screw connection to external grille for security and weather tight seal.
• IPX4 rated motor.

Technical Specification

Order Code		GX9
Remote switch (supplied separately)		yes
Selectable intake, extract or controller operation		yes
Speeds		2 (controller options apply)
Extract performance (FID, m³/h)	high low	728 618
Extract performance (FID, l/s)	high low	202 172
Intake performance (FID, m?/h)	high low	456 412
Intake performance (FID, l/s)	high low	127 114
Sound pressure level (dB(A)@3m)	high low	50 48
electrical power rating (W)		41
Weight (kg)		4
Hole (mm)		257
Hole with wall liner (mm)		266
Guarantee (years, UK)		3
