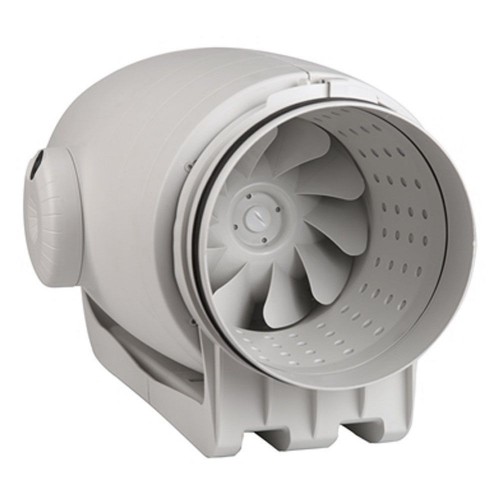

Envirovent SILMV250/100T SILENT MV White Ultra Quiet 2 Speed In-Line Mixed Flow Duct Fan With Adjustable Timer IP44 230V Length: 575mm | Width: 204mm | Spigot DiaØ: 100mm

Envirovent SILMV250/100T Description

The Envirovent SILMV250/100T SILENT MV is a white ultra quiet dual speed in-line mixed flow duct fan with an adjustable overrun timer and is a one of the quietest high power mixed-flow inline fans available, suitable for a wide range of domestic and commercial applications.

This centrifugal in-line extract fan is designed to solve ventilation problems for ducted systems. Due to its flexibility it can be used in a multitude of small and medium sized fan installations. The main body of the fan can be rotated in its mounting bracket whilst the cable connection box can be rotated through 360° to ensure it can be fitted in even the tightest of spaces, including between joists.

The fan can be connected to any point on the ventilation duct; at the beginning, in-between or at the end, without the loss of any performance.

The motor is assembled on silent elastic blocks and fitted with ball bearings for enhanced working life. This is especially advantageous in applications where the system may be running for long periods throughout the day. The acoustic benefits of the SILENT MV fans ensure that optimum comfort is achieved without the disturbance of noisy ventilation systems.

Manufactured from sheet steel with epoxy polyester paint, It has a specially designed internal skin that will direct any noise into a sound-absorbent insulation material. Rubber duct connections, minimise sound and vibration throughout the duct, for further noise reduction. These features allow the fan to produce only 19dB(A) - 24dB(A) @ 3m delivering a near silent fan which extracts at a rate of up to 240m³/h.

The SILMV250/100T is fitted with an integral overrun timer which can be adjusted between 2-25 minutes.

This amazing in-line fan is designed with the sole purpose of extracting stale and damp air from domestic and commercial applications as quietly as possible.

Envirovent SILMV250/100T Features

• Envirovent SILMV250/100T white dual speed in-line mixed flow fan
• IP44 rated
• 20W rated
• Significant energy savings
• High performance
• Flexible location
• Incredibly Silent Running 19dB(A) - 24db(A)
• Extract rate: 240m³/h
• Silent elastic blocks
• Near silent operation
• Sound absorbent insulation
• Sealed for life ball bearings
• Dual speed motor
• 360° rotating connection box for ease of installation
• Simple dismantling for easy maintenance
• Can be fitted to any point in the ventilation duct, with no loss of performance
• Duct run up to 6m
• Flexible rubber gaskets which minimise vibrations to the ducts
• 100mm Spigot
• Complies with building regulations
• Adjustable overrun timer
• Overrun timer adjustable from 2 - 30 minutes
• Dimensions: Length: 575mm | Width: 204mm | Spigot Diameter Ø: 100mm
