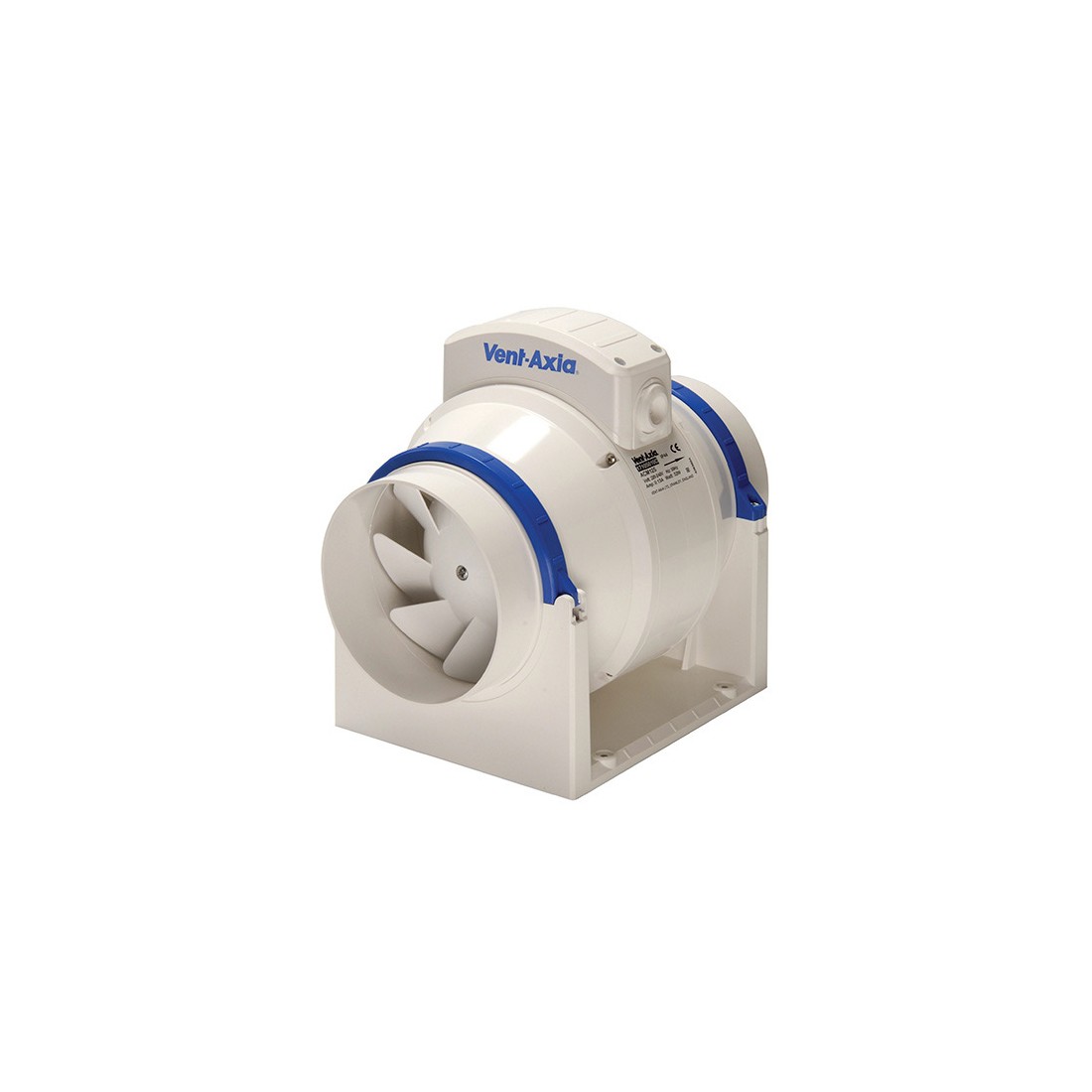

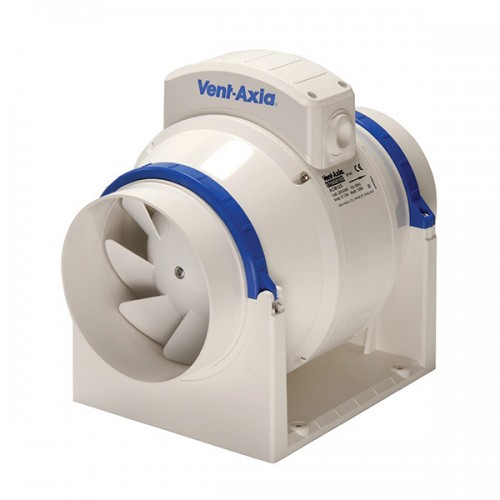

Vent-Axia 17108020 ACM200T White Polymer 3 Speed Mixed Flow In-Line Fan With Adjustable Timer IP44 240V Length: 300mm | Width: 195mm | Spigot DiaØ: 200mm
Order code: 17108020
Manufacturer: Vent-Axia
GTIN: 5015135094027
Notify me by email when product is available
Normally despatched
within 5-7 working days
within 5-7 working days
Vent-Axia 17108020 Description
Vent-Axia 17108020 ACM200T White Polymer 3 Speed Mixed Flow In-Line Fan With Adjustable Timer IP44 240V Length: 300mm | Width: 195mm | Spigot DiaØ: 200mm
Vent-Axia ACM in-line mixed flow are now even more energy efficient fans quieter.
They deliver two and half times the pressure of conventional axial fans and are dimensionally more compact making them ideal for many ducted applications.
The ACM fans can be installed and operate in both horizontal and vertical positions.
All models have three speeds selectable on installation and are fitted with Standard Thermal Overload Protection (S.T.O.P.). They have a separate footplate for simple location mounting and detachable spigots for simple connection to ducting
| Brand : | Vent-Axia |
| Part No : | 17108020 |
| Colour : | White/Blue |
| Product Range : | Commercial Ventilation |
| IP Rating : | IP54 |
| Dimensions : | (Dia)200 mm x (H)276 mm x (W)223 mm x (D)300 mm |
| Height : | 276mm |
| Guarantee : | 2 Years |
| Depth : | 300mm |
| Supplied With : | Timer |
| Power Rating : | 114W |
| Operation Type : | Timer |
| Airflow Litresper Second : | 111 / 240 |
| Decibel Rating : | 32 / 38 dB[A] @ 3 m |
| Ducting Size : | 200mm |
