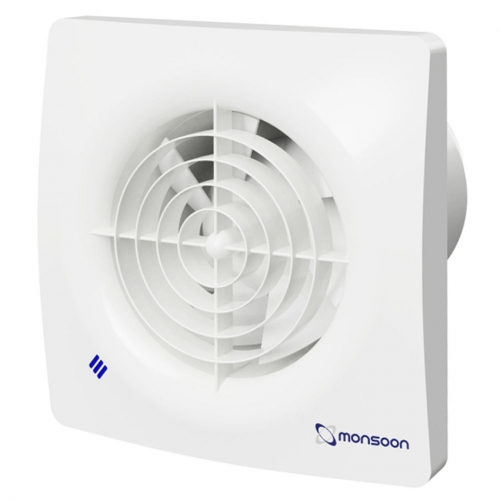

National Ventilation MONS100PCA Energysaver Zone 1 Silence 100mm/4 Inch IP45 Mains Voltage Energy Saving Silent Axial Fan With Pullcord White

Monsoon MONS100PCA Description

The Monsoon Energysaver Zone 1 Silence MONS100PCA is a 100mm / 4 inch domestic mains voltage pullcord axial bathroom fan that contains a multitude of the latest innovative features optimised for energy efficiency. Suitable for ceiling mounting.

Delivers high extraction rates with low energy use and exceptionally quiet running levels. IP45 rating allows for installation throughout the splash zone of Bathroom Zone 1 (when used with a 30mA RCD) makes it ideal for use as a shower extractor fan.

The casing and impeller are made of durable high quality UV-resistant plastic which helps to prevent degradation and discolouration of the plastic over time. The stylish modern ensures the fan matches well with any bathroom décor.

Supplied with a long life ball bearing motor with two performance settings delivering 97 m³/h. Rubber anti-vibration mounts are designed for motor vibration absorption and noise insulation. The silent backdraught shutter preventing air travelling back up the duct and into the room. Operates at a maximum of 25db(A) meaning the fan will run unnoticed in the background.

Can be ducted to 6 metres (4 metres with a 90 bend) due to its mixed flow impeller so it can be used instead of a bulky centrifugal fan.

An integrated spirit level and larger terminal block allows for accurate, level installation and easy wiring.

Monsoon MONS100PCA Features

• Monsoon MONS100PCA 100mm / 4 inch domestic pullcord axial bathroom fan
• Low energy and silent running
• Mains voltage: 7.5W 230V~
• Two performance settings
• Suitable for ceiling mounting
• IP45 rated - suitable for installation in Zone 1
• Reliable, energy efficient ball bearing motor, average service life of 40,000 hours
• Low noise as low as 25 dB(A)
• Standard thermal overload protection on motor
• Backdraught shutters to prevent back flow and heat loss
• Rubber anti-vibration mounts are designed for motor vibration absorption and noise insulation
• Specially designed airflow vanes reduce air turbulence, boost air pressure and reduce noise levels
• Fan can be used with longer duct runs due to its mix-flow impeller
• Easier than ever to install with larger terminal block and spirit level
• Complies with both Part F & L Building Regulations
• Dimensions: Height: 136mm | Width: 158mm | Depth:133mm | Spigot Dia Ø: 99mm
