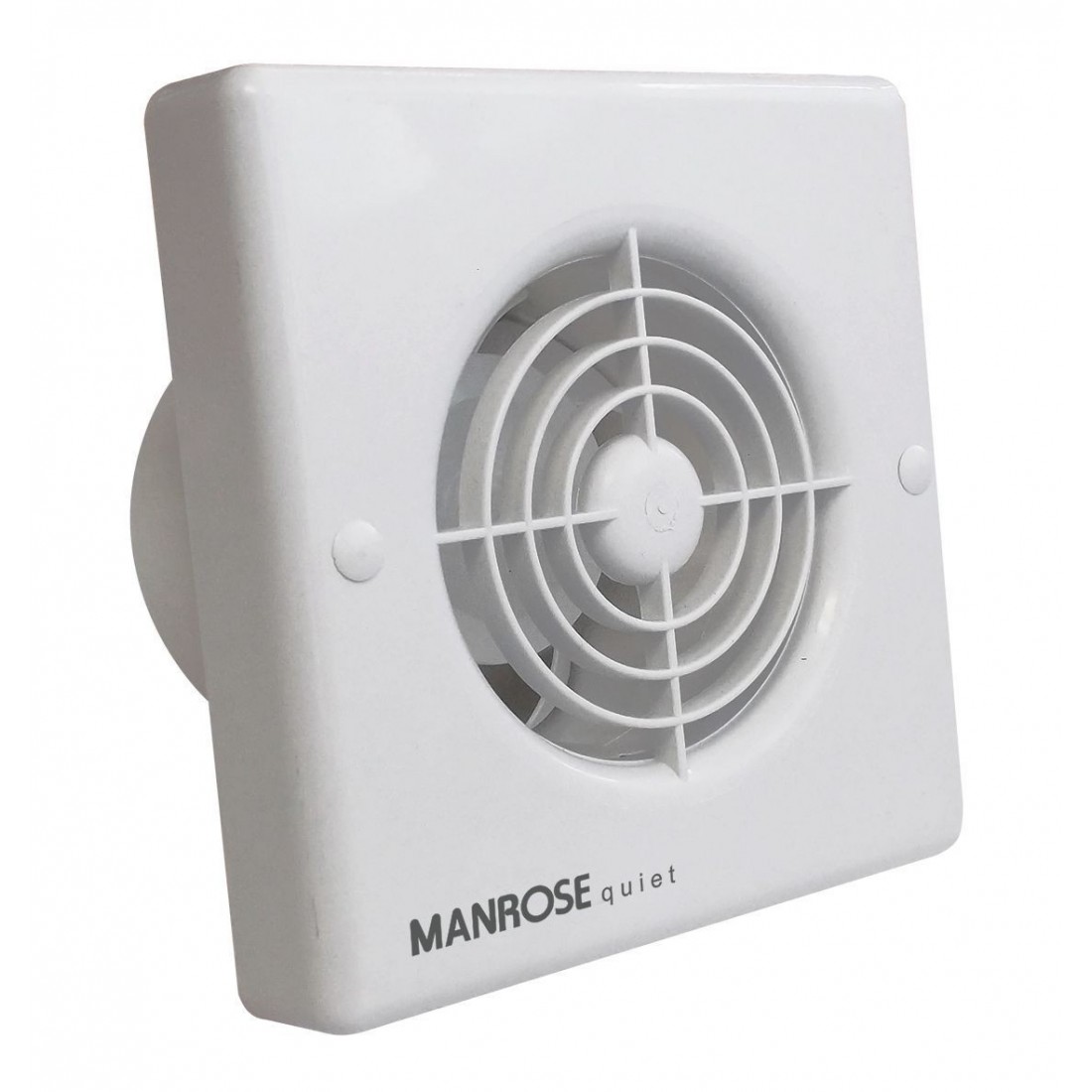

Manrose QF100P QuietFan White Quiet Axial Extractor Fan With Pullcord & Backdraught Shutters IP20 240V Height: 163mm | Width: 163mm | Spigot DiaØ : 100mm

Manrose QF100P Description

• High quality ball bearing, long life motors continuously rated and warranted for a minimum of 30,000 hours or 3 years
• Manufactured using high ABS thermoplastics for strength and durability
• Decibel Level of ONLY 27dB(A) at 3m. Over 60% reduction in comparison to standard 4" (100mm) domestic fans.
• An impressive extraction rate of 75m³/hr, 21 litres per second
• Low energy motor with a maximum consumption of 4.8 Watts
• The most environmentally friendly fan in the Manrose range with an SFP of 0.24W/L/S
• Complete with integral backdraught shutters
• Complies with both Part F & L

Electrical

• 220-240V - AC. 50Hz Single Phase consuming 4.8 watts.
• These fans are double insulated and do not require an earth.
• All wiring must comply with current IEE regulations.
• A double pole isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted.
• The fan must not be accessible to a person using either the shower or bath and mounted a minimum of 1.8 metres from the floor.
