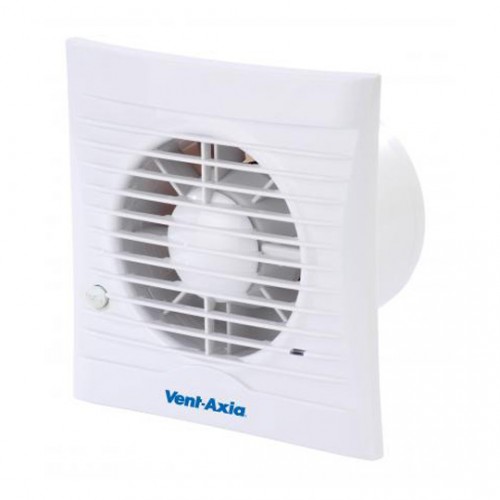

Vent-Axia 454058 Silhouette 100TM White Single Speeed Low Profile Panel Axial Fan With Adjustable Timer, PIR & Backdraught Shutter 240V Height: 160mm | Width: 160mm | Spigot DiaØ : 100mm
Order code: 454058
Manufacturer: Vent-Axia
GTIN: 5015135494520
Notify me by email when product is available
Normally despatched
within 5-7 working days
within 5-7 working days
Vent-Axia 454058 Description
Vent-Axia 454058 Silhouette 100TM White Single Speeed Low Profile Panel Axial Fan With Adjustable Timer, PIR & Backdraught Shutter 240V Height: 160mm | Width: 160mm | Spigot DiaØ : 100mm
Vent Axia Silhouette mains voltage panel axial fans have a slim profile of only 17mm, ensuring they blends in with the wall surface to provide an unobtrusive installation.
Can be ceiling/panel mounted and connected to an appropriate duct run to the outside.
IPX4 rated, the Silhouette has a FID performance of 21 l/s.
| Brand : | Vent-Axia |
| Part No : | 454058 |
| GTIN : | 5015135494520 |
| Colour : | White |
| IP Rating : | IPX4 |
| Dimensions : | (H)160 mm x (W)160 mm x (D)17 mm |
| Mounting : | Wall / Ceiling / Panel / Window |
| Height : | 160mm |
| Guarantee : | 2 Years |
| Depth : | 17mm |
| Power Rating : | 16W |
| Operation Type : | PIR |
| Automatic : | No |
| Airflow Cubic Metresper Hour : | 75 m³/h |
| Airflow Litresper Second : | 21 l/s |
| Decibel Rating : | 38 dB[A]@3m |
| Ducting Size : | 100mm |
