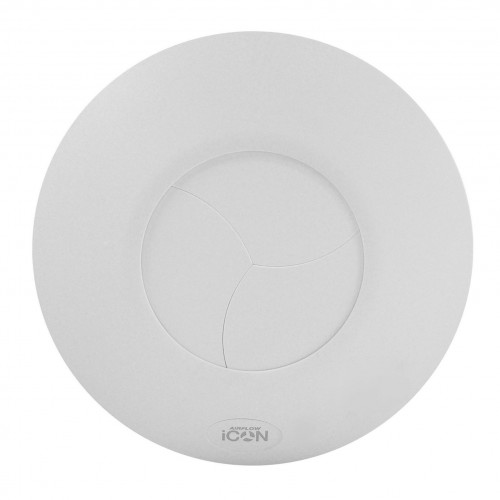

Airflow 72591701 iCON60 280mm Low Profile Axial Extractor Fan With Iris Shutter
Airflow 72591701 iCON60 280mm Low Profile Extractor Fan is the largest fan in the range, suitable for recessed or surface mounting in walls or ceilings and is highly efficient in domestic kitchens and residents' lounges
within 1-2 working days
Airflow 72591701 Description
The Airflow iCON60 mains voltage axial fan is the largest fan in the iCON range but still maintains the family traits of quietness, power and design efficiency. Suitable for recessed or surface mounting in walls or ceilings and is highly efficient in domestic kitchens and residents' lounges.
Recessed into the wall or ceiling, it is stylish and unobtrusive, even in the smallest space. Also supplied with a stylish, narrow contour skirt for surface mounting if preferred. This great looking axial extractor fan which thanks to its eye-catching 'opening iris' shutter has become a modern design classic.
The iCON60 quiet, powerful axial fan has been designed with simplicity in mind. A quick, 6 core drilled hole enables immediate fixing of the iCON60. The twist on/off cover requires only a single side entry fixing screw. Cantilever fixing lugs enable recessed installation on uneven surfaces. The circular design means no squaring up is required.
Tiling is a breeze with the circular cover flange, reducing the need to make good. One wipe and the cover is clean. The unique iris shutter, prevents backdraughts, operates silently and helps reduce noise ingress, whilst also adding a touch of style.
The Airflow Icon60 fan is very powerful. With an extract rate of 72 litres a second (260 m³/hr), it meets the building regulations for kitchens and the very largest bathrooms.
The Airflow iCON60 is supplied for remote switching and may be wired into the light switch or separate remote switch for basic on / off manual switching. However, its functionality may be enhanced through the use of optional 'snap-in' control modules which are quick to fit and wire. Modules include Pullcord, Timer, Humidity or Motion Sensing operation.
Choice of Silver, Sandstone & Anthracite covers.
Airflow 72591701 Features
- Quiet, stylish, slim and unobtrusive in wall/ceilings, surface/recessed mounting
- The iCON60 is supplied for remote switching
- Surface or recessed mounting
- Interchangeable control modules match fan to installation
- Flow rate up to 72 l/sec (260 m³/hr)
- Ductable for short runs up to 9m.
- Unique iris shutter, prevents backdraughts, operates silently and helps reduce noise ingress.
- Low energy, quiet in use
- Complies with latest Building Regulations (F1 ventilation)
- Splashproof,
- Tiling is a breeze with the circular cover flange, reducing the need to make good.
- Upgrade your cover to colour to match décor - choice of Silver, Sandstone, Chrome & Anthracite
- IPX4 Protection
- Three year ‘no quibble’ guarantee
- BEAB approved
