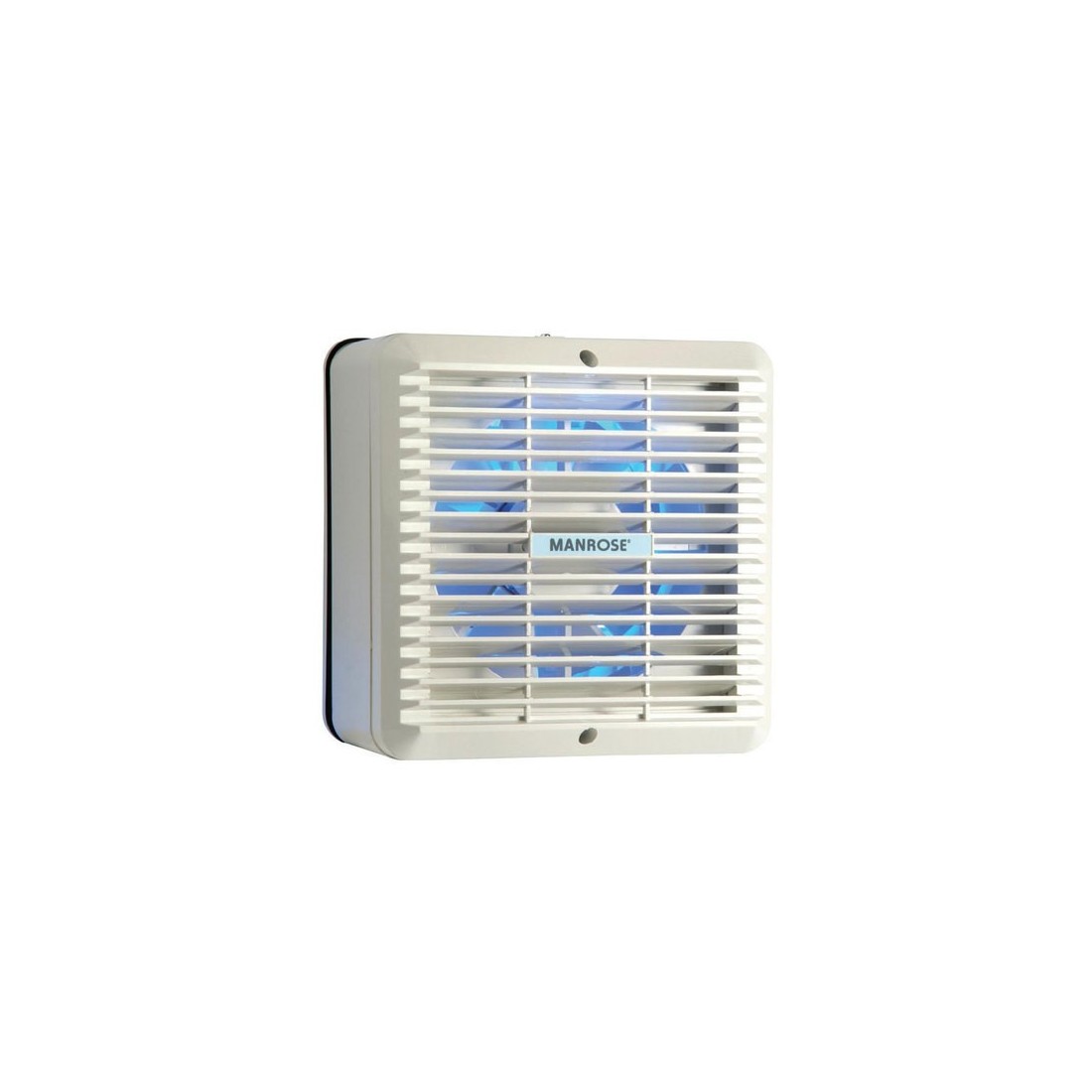

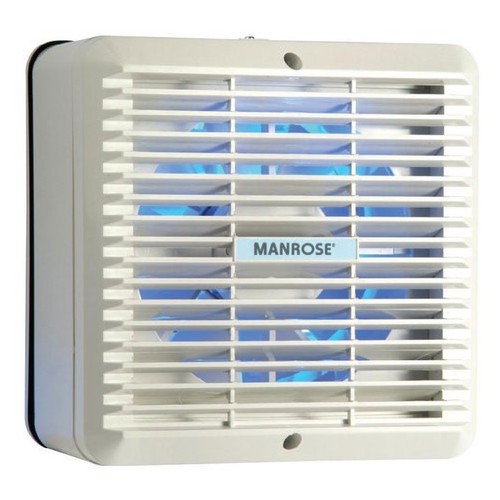

Manrose XF150T White Thermoplastic Axial Extractor Fan With Adjustable Timer IP20 240V Height: 203mm | Width: 203mm | Spigot DiaØ : 150mm

Manrose XF150T Description

Installation

Designed for wall or ceiling mounting (pullcord version wall mounting only). Wall fixing kit is available separately.

Electrical

220-240V - AC 50Hz.
Single phase consuming 25 watts. These fans are double insulated and do not require an earth. All wiring must comply with current IEE regulations.

A double pole (DP) isolating switch, having a contact separation of at least 3mm in all poles, must be used with a 3 amp fuse fitted.

The fan must not be accessible to a person using either the shower or bath and mounted a minimum of 1.8m from the floor.

Technical Specification

• Maximum pressure: 50 p.a.
• Fan speed: 2400 r.p.m.
• Sound volume: 40.0 db(A)
• Maximum operating temperature: 40°C
