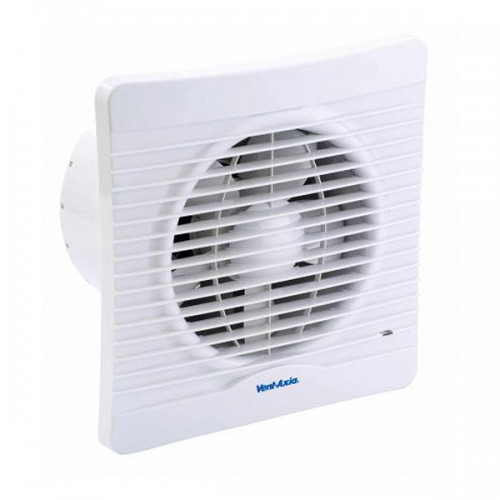

Vent-Axia 454061 Silhouette 150XH White Single Speeed Low Profile Panel Axial Fan With Humidistat & Electric Backdraught Shutters 240V Height: 223mm | Width: 223mm | Spigot DiaØ : 150mm
Order code: 454061
Manufacturer: Vent-Axia
GTIN: 5015135393656
Notify me by email when product is available
Normally despatched
within 5-7 working days
within 5-7 working days
Vent-Axia 454061 Description
Vent-Axia 454061 Silhouette 150XH White Single Speeed Low Profile Panel Axial Fan With Humidistat & Electric Backdraught Shutters 240V Height: 223mm | Width: 223mm | Spigot DiaØ : 150mm
Vent-Axia Silhouette 150 mains voltage panel axial fans have a profile of only 19mm enabling them to blend in with the wall surface to provide an unobtrusive installation.
IPX4 rated they are suitable for wall, ceiling and panel mounting.
The downstream airflow guide vanes offer improved pressure development.
The Silhouette's electronics, including humidistat and overrun timer, are mounted in the centre of the fan, beneath the ultra slim profile grille.
| Brand : | Vent-Axia |
| Part No : | 454061 |
| GTIN : | 5015135393656 |
| Colour : | White |
| Product Range : | Domestic Ventilation |
| IP Rating : | IPX4 |
| Dimensions : | (H)223 mm x (W)223 mm x (D)19 mm |
| Mounting : | Wall / Ceiling / Panel |
| Height : | 223mm |
| Guarantee : | 2 Years |
| Depth : | 19mm |
| Power Rating : | 20W |
| Operation Type : | Humidistat [60 - 90%] |
| Automatic : | No |
| Airflow Cubic Metresper Hour : | 241 m³/h |
| Airflow Litresper Second : | 67 l/s |
| Decibel Rating : | 43 dB[A]@3m |
| Humidistat : | Yes |
| Ducting Size : | 150mm |
| Weight : | 1.14500kg |
