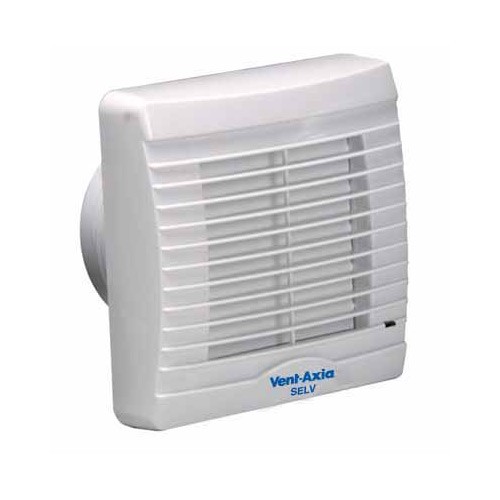

Vent-Axia 258512 VA100SVXHT12 White SELV Axial Extractor Fan With Humidistat, Adjustable Timer, Remote Transformer & Thermo-Electric Shutters IPX7 12V Height: 146mm | Width: 146mm | Spigot DiaØ : 100mm
Order code: 258512
Manufacturer: Vent-Axia
GTIN: 5015135393199
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
Vent-Axia 258512 Description
• Designed for safe use in the spray area of a bathroom or shower and within reach of a person using a bath or shower
• Available with electric shutter
• Fan IPX7 rated
• SELV Transformer to BS EN 60 742
• Window, ceiling, wall or panel mounting
• Indication light
• Meets current Building Regulations Approved Document F
Safety Extra Low Voltage Fan (SELV)
A range of fans with optional shutter, timer and humidity controlled versions to match application requirements precisely. Designed in a clean white finish and suitable for ambient temperatures up to +40°C the unit is fitted with Standard Thermal Overload Protection (S.T.O.P.).
Designed for areas where a fan has to be fitted over or within Zone 1 in a room containing a fixed bath or shower according to IEE wiring regulations (BS 7671), the VA100 SELV fan can be safely installed within the spray area. The fan is rated IPX7. Control is by mains safety isolating transformer unit with SELV output, which is sited away from any source of spray and out of reach of a person using a fixed bath or shower.
| Brand : | Vent-Axia |
| Part No : | 258512 |
| GTIN : | 5015135393199 |
| Colour : | White |
| Product Range : | Bathroom/Toilet Fans |
| IP Rating : | IPX7 |
| Dimensions : | (H)155 mm x (W)155 mm x (D)48 mm |
| Mounting : | Wall / Ceiling / Panel / Window |
| Height : | 155mm |
| Frequency : | 50/60 Hz |
| Guarantee : | 2 Years |
| Depth : | 48mm |
| Power Rating : | 20W |
| Operation Type : | Timer [3 - 25 mins] + Humidistat [40 - 95%] + Auto Shutter |
| Airflow Cubic Metresper Hour : | 75 m³/h |
| Airflow Litresper Second : | 21 l/s |
| Decibel Rating : | 31 dB[A]@3m |
| Humidistat : | Yes |
| Hole Size : | 105mm |
| Ducting Size : | 100mm |
| Zone Rating : | Zone 1 |
