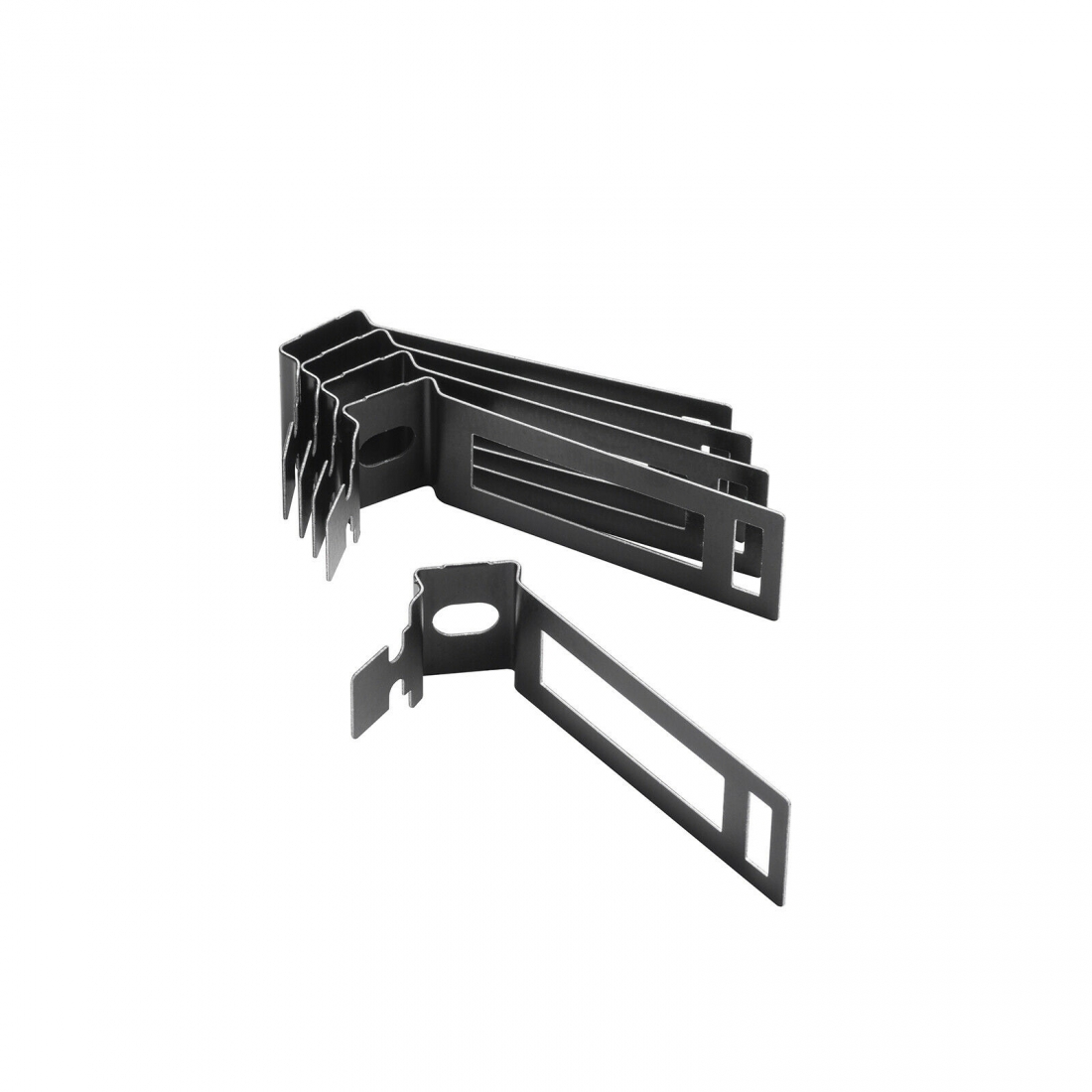

D-Line SD-COND20B 20mm Fire Resistant Conduit Saddle (Pack of 20)
The D-Line SD-COND20B 20mm Fire Resistant Conduit Saddle is a black steel 1 piece 20mm fire resistant conduit saddle designed to secure cables installed in 20mm black round PVC conduit. This product ships in a pack of 20.
within 1-2 working days
Safe-D SD-COND20B Description
The Safe-D SD-COND20B is a pack of 20 black steel 1 piece 20mm fire resistant conduit saddles are designed to secure cables installed in 20mm black round PVC conduit.
These innovative one-piece saddles combine fire performance, quickest fix times, and a modern look. Using the conduit saddle will prevent cables from dropping in fire conditions up to 970°C for 2 hours, allowing occupants the time to escape from burning buildings.
They can be secured by only one fixing in base. The high-performance steel is simple to wrap tightly around the conduit, perfectly forming the same shape. The tab is easy to thread through the slot, then fold to lock.
Fully tested and certified, satisfying the 18th Edition requirements of BS7671 & BS5839 pt1.
Safe-D SD-COND20B Features
- Safe-D SD-COND20B fire resistant conduit saddles
- Manufactured from black non-corrosive steel
- Pack Size: 20
- 18th Edition compliant
- Fire Rated. Certified for 2 hours at 970°C
- Suitable for use with 20mm black PVC conduit
- Unique single piece fixing, only 1 screw required
- Labour-saving design - installation time is approximately halved!
- Saddle to be adjusted left or right-side
- Provides a 3mm stand off from surface
- Modern, stylish appearance
- Ideal for tight spaces
- Compliant with BS7671 and BS5839-1 requirements
- Dimensions: Length: 86mm | Width: 20mm | Height: 23mm (when folded)
