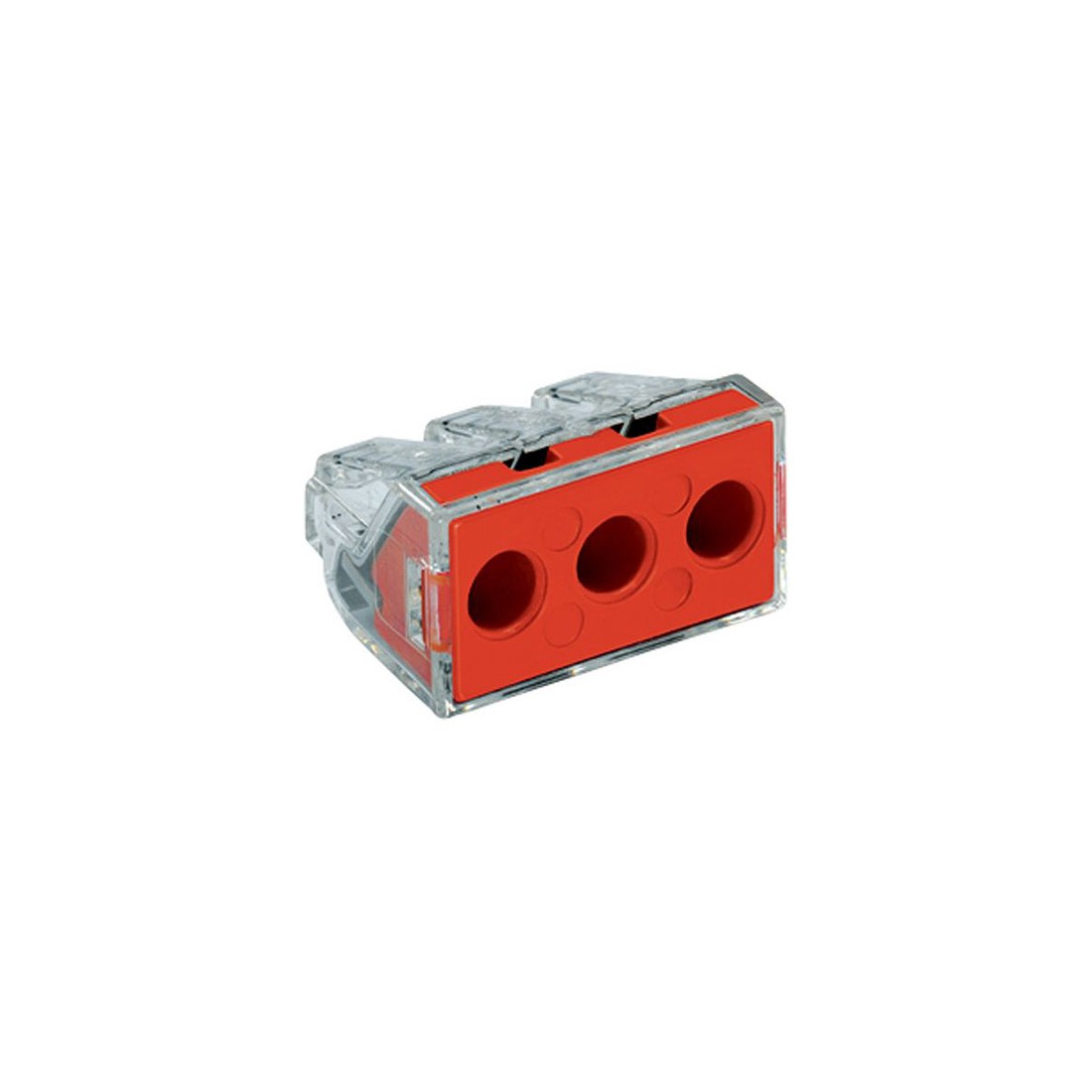

Wago 773-173 Transparent 3 Pole Push Wire Connector With Red Cover For Junction Boxes (Pack Size 50) 41A 400V 2.5mm² - 6.0mm²
PUSH WIRE® connector for junction boxes; 3-wire connector; transparent housing; continuous operating temperature (max.): 105°C; ambient temperature (max.): 60°C
Order code: 773-173
Manufacturer: Wago Connectors
GTIN: 4050821215141
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
Wago Connectors 773-173 Description

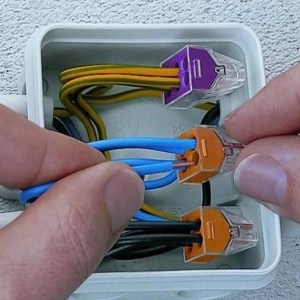

The Wago 773-173 is a simple and re-useable 3-way PUSH WIRE® connector that provides instant connection. Suitable for solid and stranded conductors ranging from 2.5mm² to 6mm². Their compact size minimizing the amount of space used in junction boxes.
The transparent housing also enables the electrician or installer to see at a glance whether all the conductors have been fully inserted and properly connected. The connector can be reused and wires easily removed.
The connector encapsulates the connections and provides protection to IP2X and is safe to touch. Has a test point at the base of the connector providing easy test conditions, even when installed.
Ideal for industrial, communications & networking, lighting, security, signalling, HVAC applications
Wago Connectors 773-173 Features
- PUSH WIRE® Connector for Junction Boxes
- Solid Conductor: 2.5 - 6.0mm², Stranded Conductor: 2.5 - 6.0mm²
- Quick, Simple & Easy to Use With Up to 50% Reduced Wiring Time
- Reliable & Secure Connection
- Transparent housing
- Re-usable - disconnect and re-connect
- Side Entry Wiring Type
- Touch-Proof Connection
- Vibration Proof
- Integrated Test Point At Base
- Colour Coded for Easy Identification
- Current Rating: 41A
- Voltage Rating: 400V
- Ambient Temperature: 60°C
- IP2X protection rating
How it works
- Strip the conductor to 12mm
- Insert the conductor fully into the housing to complete the connection
- Visually inspect for proper strip length and complete wire insertion through its transparent housing
- To remove, simply twist and pull the connector and conductor at the same time
You may need Adobe Reader to view some of our downloads.
If you do not already have it installed please click the icon above to install it.
| Part No : | 773-173 |
| GTIN : | 4050821215141 |
| Current Rating : | 41A |
| Voltage Rating : | 400V AC |
| Dimensions : | (H)14.2 mm x (W)25.6 mm x (D)20.1 mm |
| Guarantee : | 1 Year |
| Wire Combination Range : | Solid Conductor 2.5 to 6.0 mm² Stranded Conductor 2.5 to 6.0 mm² |
| Number of Poles : | 3 Pole |
