Wago 207-4301 L60 White Wiring Centre Junction Box For 221 Series Connectors

Wago 207-4301 Description

The Wago Connectors L60 207-4301 is a white polycarbonate IP20 rated wiring centre junction box that offers a straightforward, efficient, and secure solution for connecting up to 60 221-4XX connectors (ordered separately).

Manufactured from insulating materials, designed for surface mounting on a wall of ceiling, and supplied with inlets for sheathed cables for fixed installations and inlets for flexible cables. Screwless cover.

Features 6 snap-in, double-deck strain reliefs for routing up to 12 surface-mounted cables, as well as 3 flush-mounted cable entries in the rear wall, enabling feeding of several differently laid cables between 4-11mm diameter.

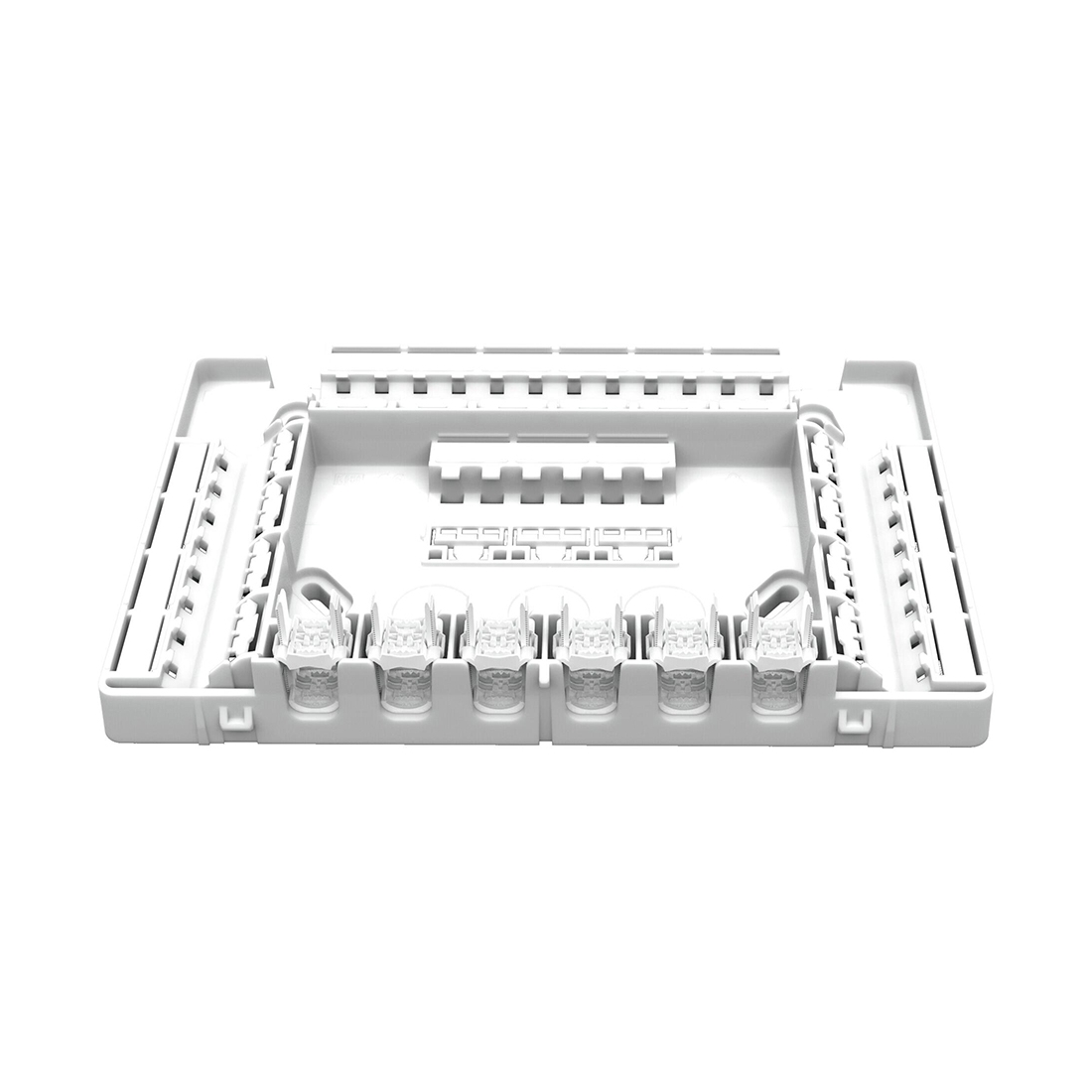

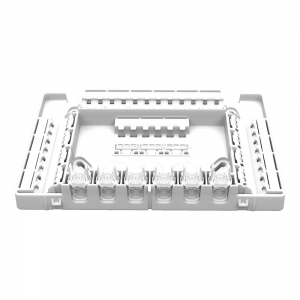

Base carrier can be equipped with up to 60 connection points. Marking strip receptacles enable clear labelling of individual connections.

Made from high-quality materials, this junction box is designed to withstand tough environmental conditions, ensuring safe and secure electrical connections.

For exclusive use with 221 Series lever connector 4mm² versions 221-412, 221-413 and 221-415.

Wago 207-4301 Features

• Wago 207-4301 wiring centre junction box
• Simple, quick and secure solution for connecting up to 60 Wago 221-4XX connectors
• WAGO 221 series connectors need to be ordered correctly
• Manufactured from white polycarbonate
• IP20 rated
• Rating: 450V/4KV | Supports conductor sizes from 0.14mm² to 4mm²
• Simple yet effective design that makes it easy to use and maintain
• A clearly structured arrangement that’s secured on one level
• Clearly visible labelling of each individual clamping unit makes it easy to identify and connect the cables

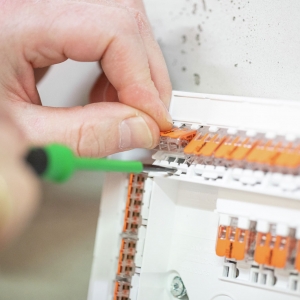

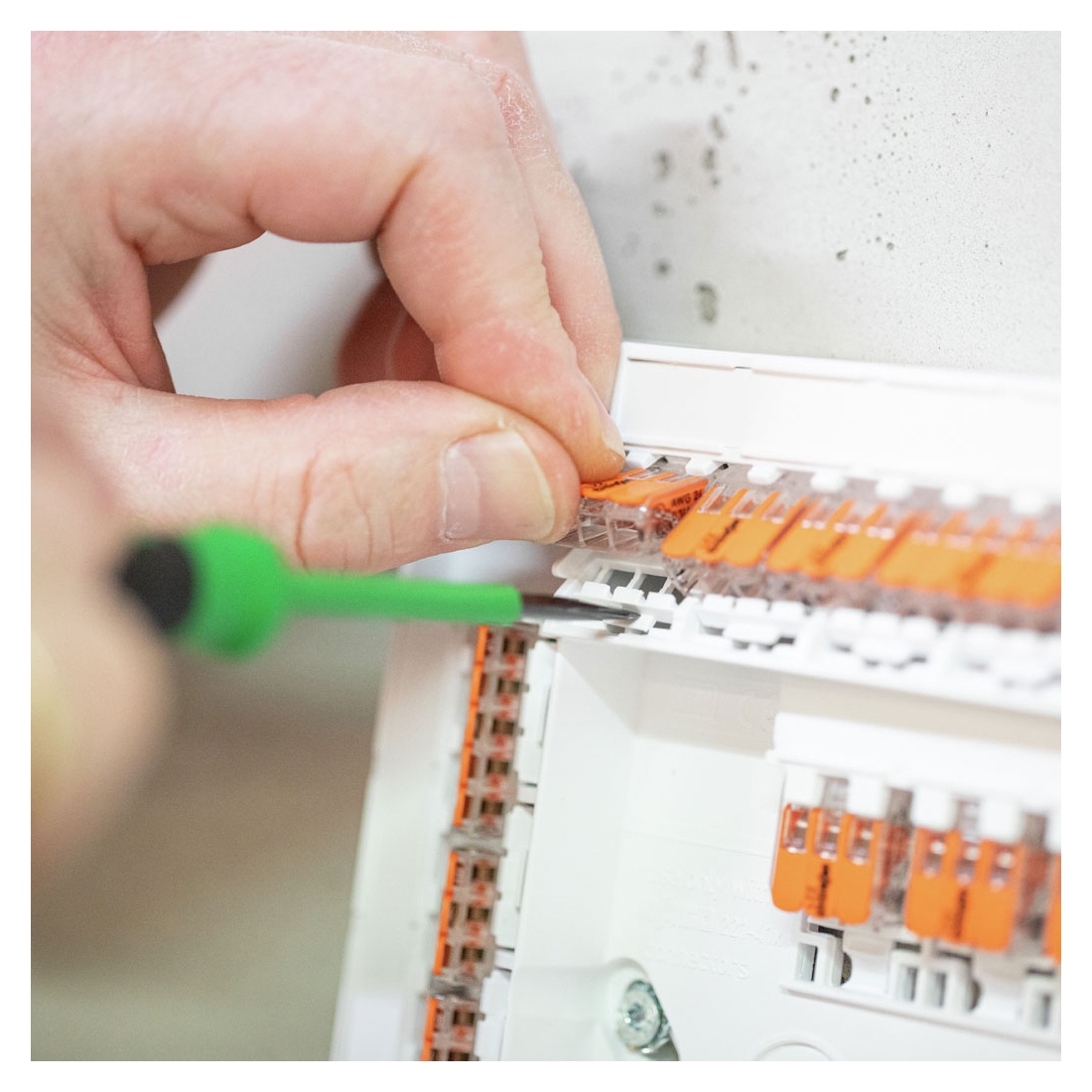

• Marking strips can be mounted by pushing them in with ease
• Equipped with strain reliefs and marking for easy installation

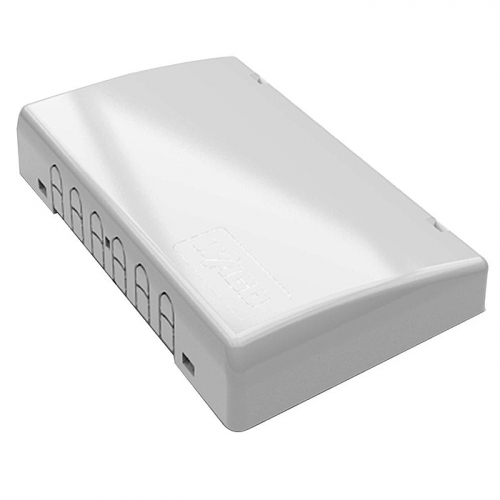

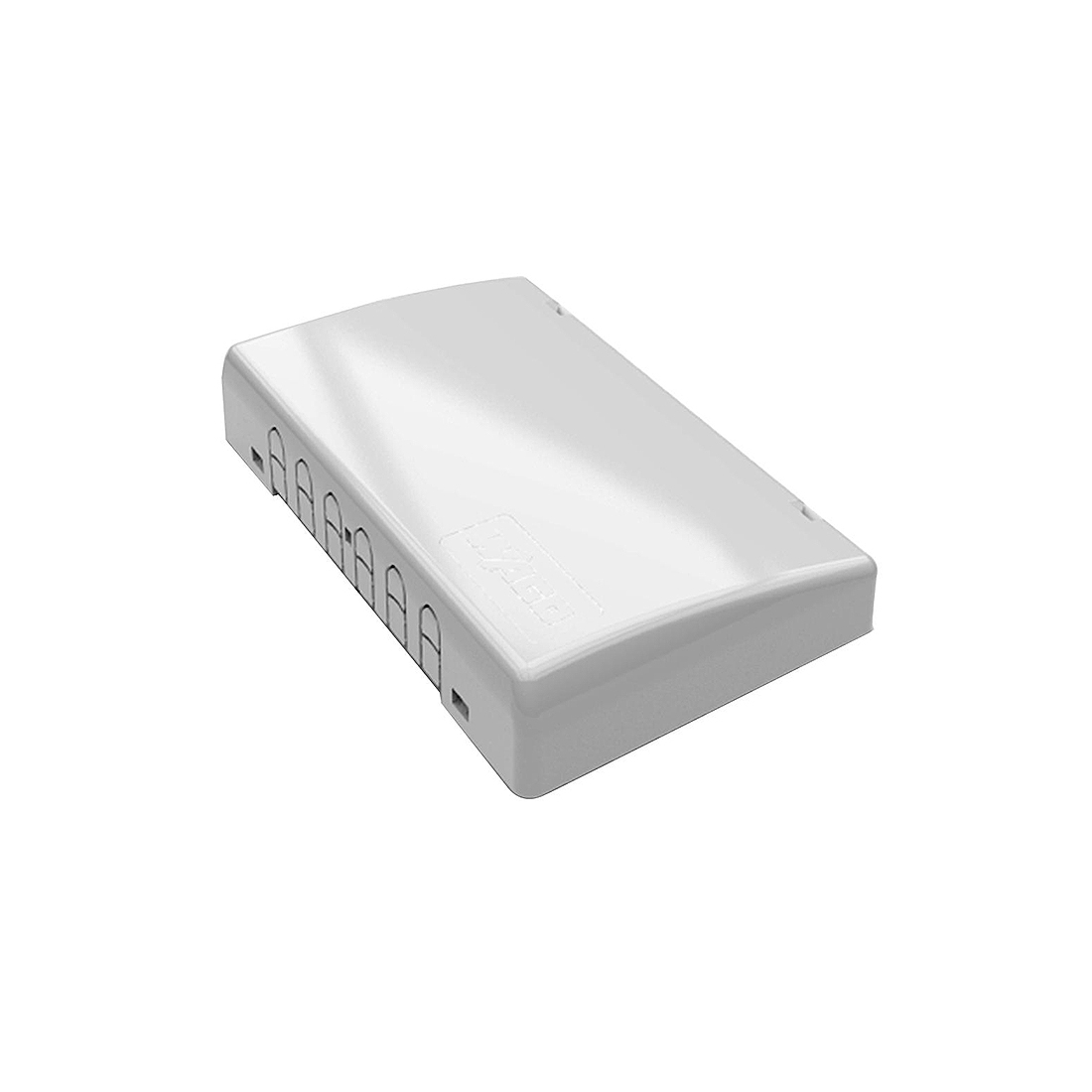

• The cover can be easily snapped on and off without requiring screws
• Surface screw mounting on walls or ceilings
• Designed to withstand tough environmental conditions
• Can be used in maintenance free applications
• Dimensions: Width: 225mm | Height: 145mm | Depth: 46mm
