BG Electrical CMP8132 1 Gang 32mm PVC Mounting Box With Round Corners

BG Electrical CMP8132 Description

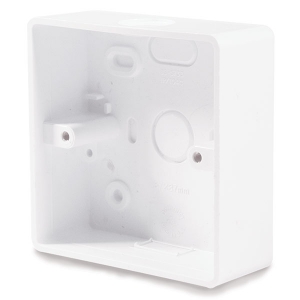

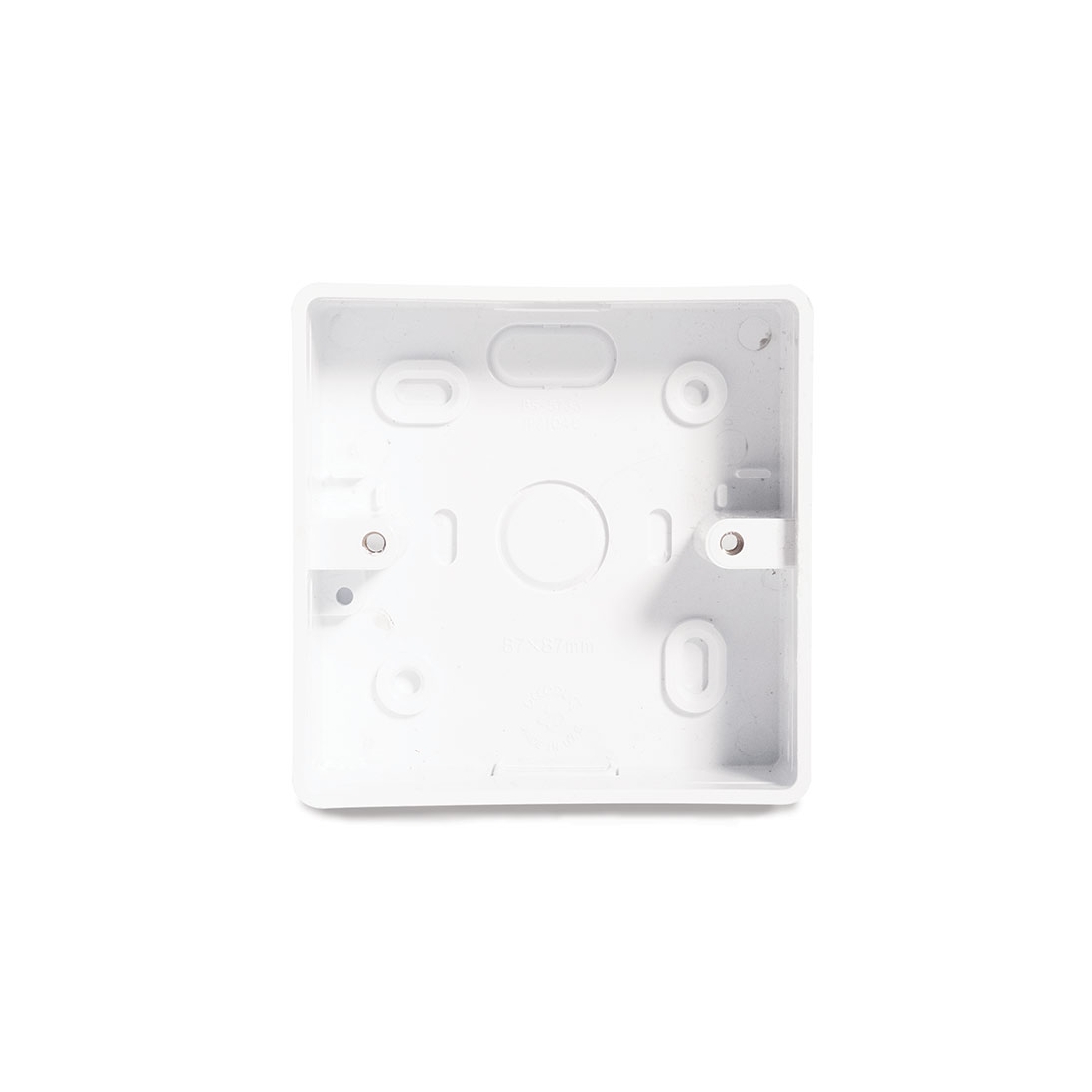

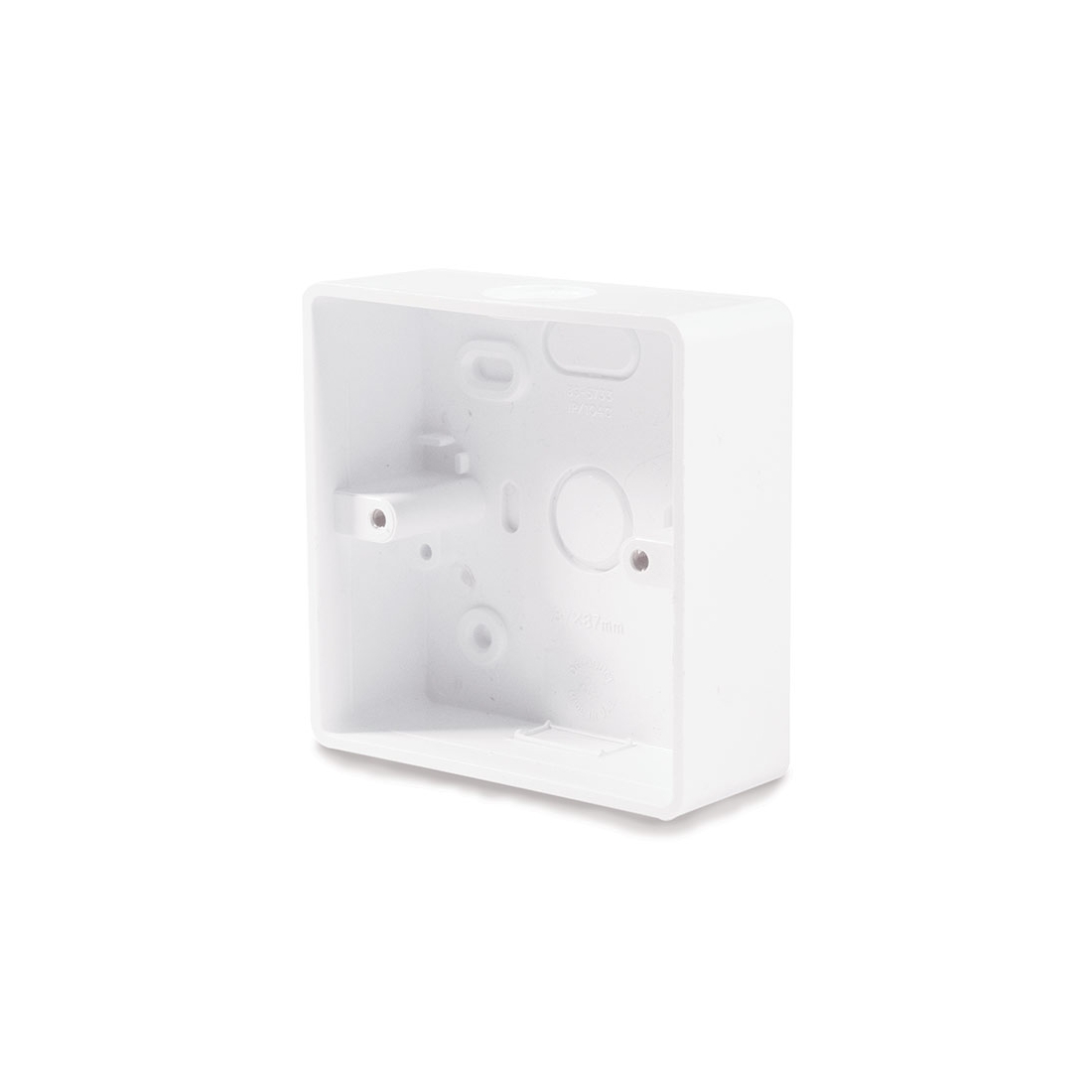

The BG Electrical CMP8132 is a white 32mm depth 1 gang PVC mounting box with round corners. It has knockouts for both 20mm round PVC conduit in the top face and for 25mm x 16mm MMT2 mini trunking in the opposing faces.

Has the provision to accept an earth terminal and reduced height mounting lugs suitable for use with flat plate accessories.

Manufactured to BS 4662 where applicable

BG Electrical CMP8132 Features

• BG Electrical CMP8132 1 gang mounting box
• Manufactured from white PVC
• 32mm depth
• Round corner design to fit round corner wiring accessories
• Features 20mm round PVC conduit knock-out in the top faces
• Features 25mm x 16mm MMT2 mini-trunking knock-out in the opposing face
• Can be cut and drilled without the risk of shattering
• Reduced height mounting lugs to accept flat plate accessories
• Boxes have the provision to accept an earth terminal
• Manufactured to BS 4662 where applicable
• Dimension: Height: 87mm | Width: 87mm | Depth: 32mm
