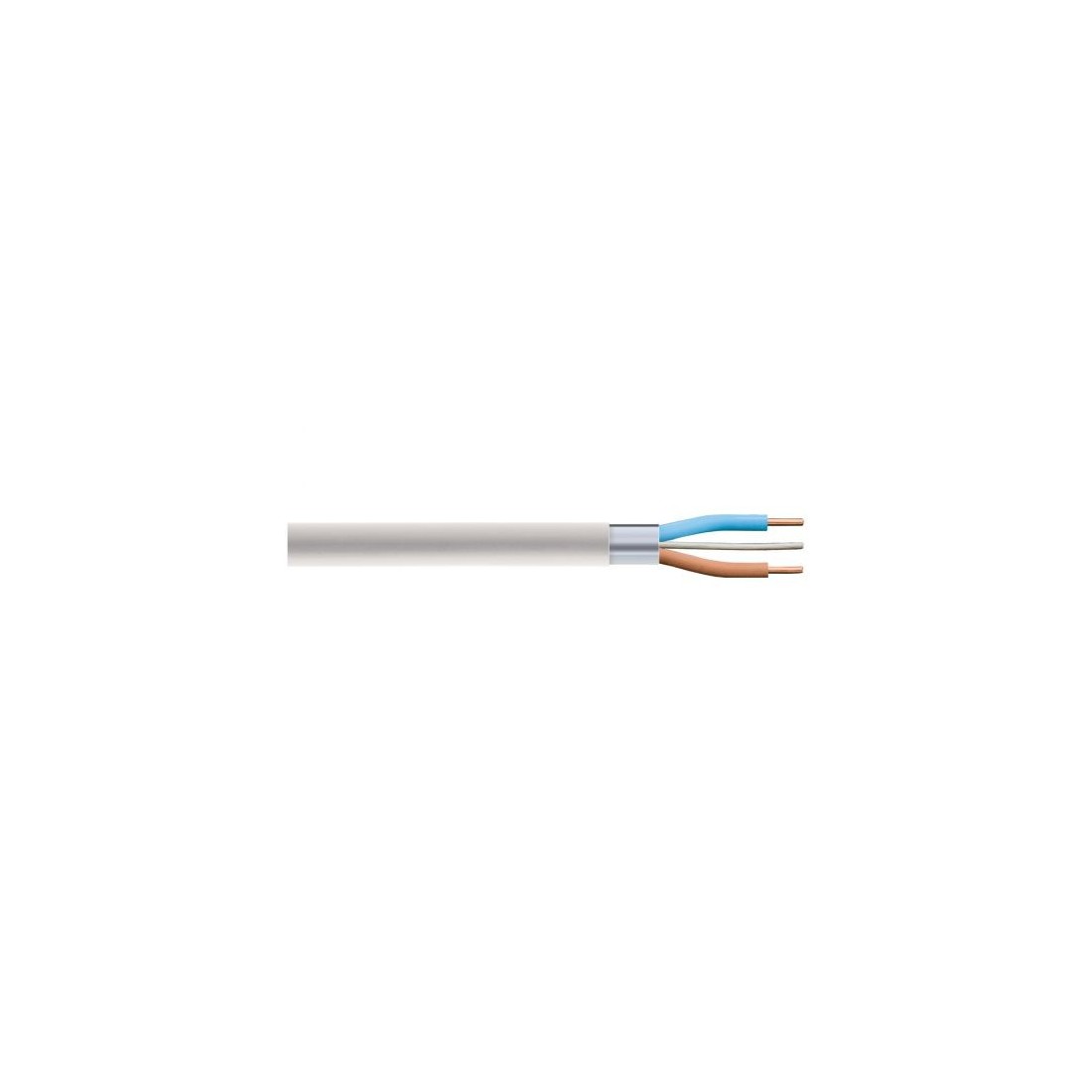

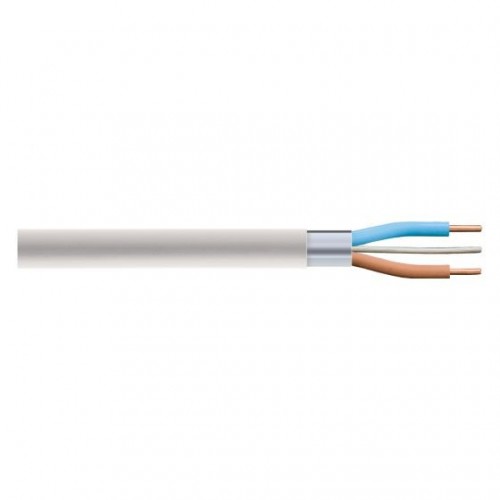

Prysmian FP200H25X2WHIC FP200 Gold White 2 Core + Earth Fire Resistant Cable 2.5mm 100m Reel

Prysmian Cable & Accessories FP200H25X2WHIC Description

• Application: Fire Alarm, Voice Alarms & Emergency Lighting Circuits
• Type: FP200 Gold
• Number of Cores: 2 Core & Earth
• Conductor Diameter: 2.5mm²
• Length: 100m Reel
• Conductors: Plain Annealed Copper
• Insulation: High performance damage resistant Insudite.
• Outer Sheath: White
• Core Colours: Brown, Blue
• Current Rating: 23A
• Voltage Rating: 500V
• BS Number: BS 7629-1, BS 6387 Category CWZ, BS 5839-1:2002,EN 50200 Class PH30, BS 8434-1, EN 50200 Class PH60, BS 5266-1:2005, ISO 9001, BASEC Approved

Prysmian Cable & Accessories FP200H25X2WHIC Features

Conductor: Plain annealed copper solid (1.0mm² - 2.5 mm²) or stranded (4.0 mm²) circular conductor complying with B6360 class 1 or class 2.

Insulation: High performance damage resistant Insudite™.

Screen: Laminated aluminium tape screen bonded to sheath and in contact with full size tinned annealed copper circuit protective conductor which provides automatic screen earthing.

Sheath:
Robust thermoplastic LSOH sheath
Colour - White or Red.
For external exposure the use of a white sheath is recommended.

Core Colours: Brown, Blue, Earth (Tinned annealed Copper)

Voltage Rating: 500V

Standards: BS Number: BS 7629-1, BS 6387 Category CWZ, BS 5839-1:2002,EN 50200 Class PH30, BS 8434-1, EN 50200 Class PH60, BS 5266-1:2005, ISO 9001, BASEC Approved
