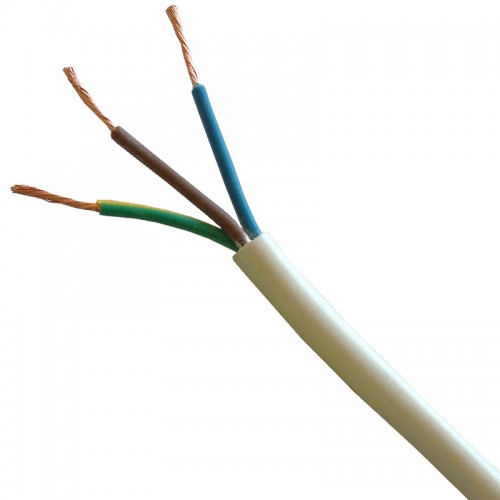

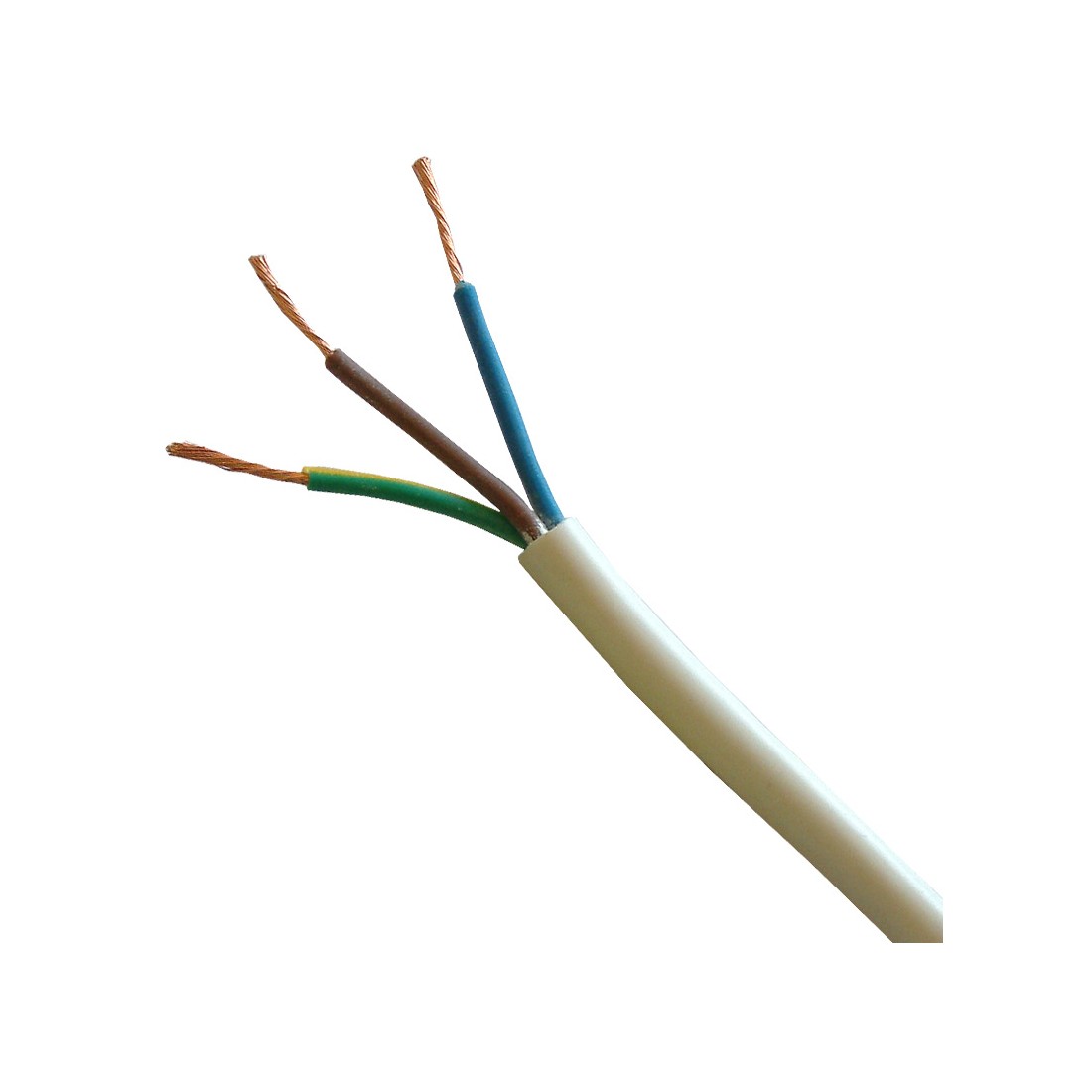

3093Y1WHIC BASEC Approved 3093Y White 3 Core PVC Insulated & Sheathed Heat Resistant Flexible Circular Cable 1.0mm 100m Reel
3093Y1WHIC BASEC Approved 3093Y white 3 core 1.0mm heat resistant flexible cable 100m reel suitable for high temperature zones where temperatures do not exceed 90°C. Applications include night storage heaters and immersion heaters etc. Generally unsuitable for outdoor use or industrial applications.
Order code: 3093Y1WHIC
Manufacturer: BASEC Approved Cable
GTIN:
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
BASEC Approved Cable 3093Y1WHIC Description
- Application: Ideal for electrical appliances, extensions reels, tools and equipment that may be exposed to high temperatures.
- Type: 3093Y
- Number of Cores: 3
- Conductor Diameter: 1mm²
- Conductors: Flexible Stranded Copper
- Insulation: PVC
- Temperature Range: Up to 90°C
- Outer Sheath Colour: White
- Core Colours: Brown, Blue, Green/Yellow
- Current Rating: 10A
- Max Voltage: 300/500V
- Standards: BS EN 50525-2-11
- Approximate Diameter: 7mm
- Cable Clip Required: 7mm Round
- Length: 100m Reel
BASEC Approved Cable 3093Y1WHIC Features
Construction: Plain annealed copper conductor, HRPVC insulated three, four and five core twisted together and PVC sheathed.
Standards: Certified to BS6500, 4.0mm² to BS7919
Conductor: Class 5 flexible plain copper conductors to BS EN 60228:2005 (previously BS6360)
Standard Colours: Cores - Green/Yellow, Black, Blue, Brown & Grey / Sheath - White
Voltage Rating: 300/500 Volts
Temperature Rating: 0 to +90°C.
