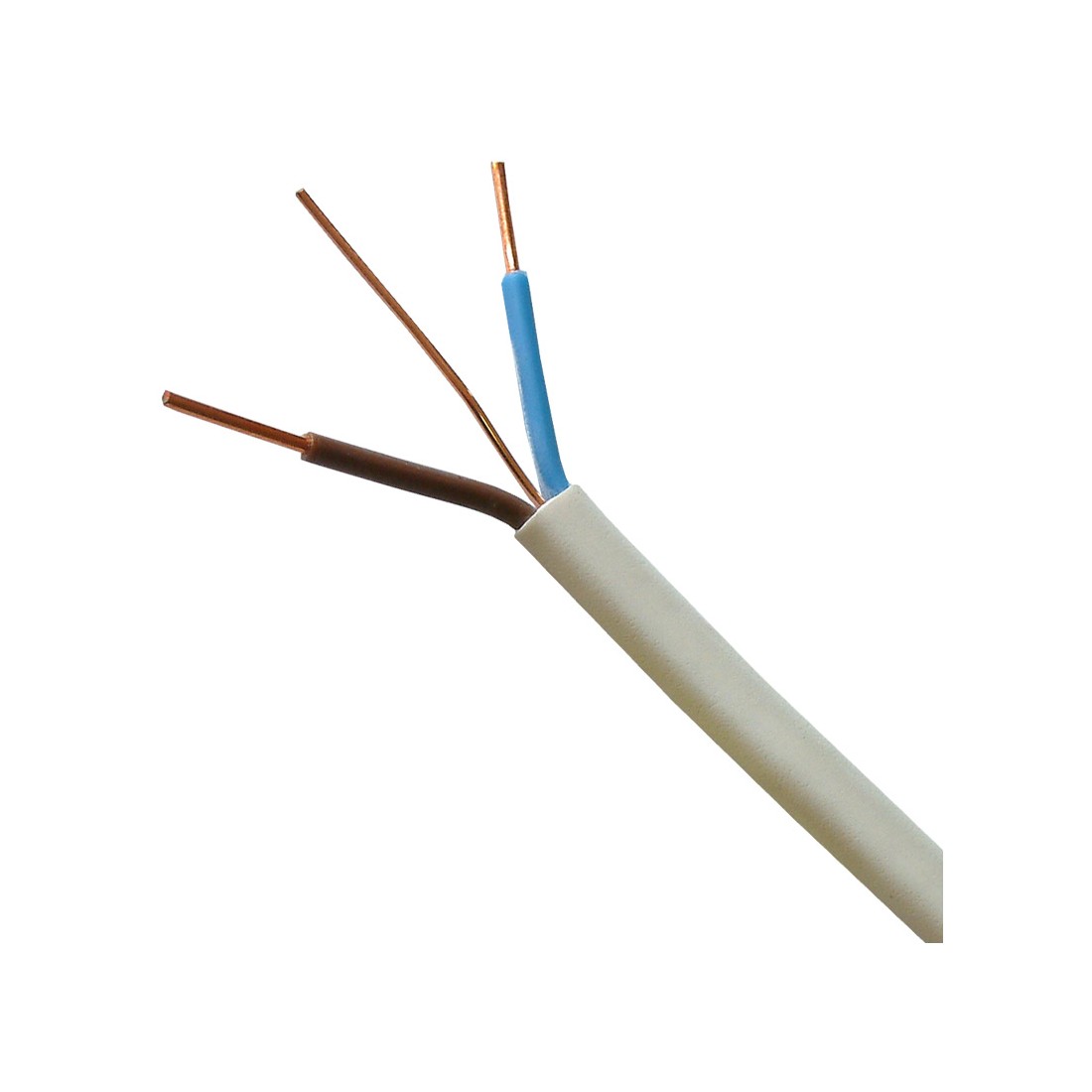

6242BH10WHIC BASEC Approved 6242B White Low Smoke Zero Halogen ( LSZH ) Twin & Earth Cable 10mm 100m Reel
6242BH10WHIC BASEC Approved 10mm Low Smoke Zero Halogen ( LSZH ) Twin & Earth Cable delivered on a 100m Reel for installation in dry or damp premises on walls, boards or trays, in channels or embedded in plaster when an earth continuity conductor is required. In particular for installation where fire, smoke emission and toxic fumes create a potential threat as these cables produce lower levels of smoke and corrosive gases under fire conditions.
Order code: 6242BH10WHIC
Manufacturer: BASEC Approved Cable
GTIN: 5019325317736
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
BASEC Approved Cable 6242BH10WHIC Description
- Application: General, domestic and light industrial mains wiring including lighting circuits, central heating, extractor fans etc.
- Type: 6242BH
- Number of Cores: 2
- Conductor Diameter: 10mm²
- Conductors: Solid Copper Conductors
- Insulation: LSZH
- Outer Sheath Colour: White
- Core Colours: Brown, Blue
- Earth: Bare Copper
- Current Rating: 53A
- Max Voltage: 300/500V
- Standards: BS 7211, IEC 60754-1, IEC 60754-2, IEC 61034, BS EN 60332-1-2
- Width: 16.8mm
- Depth: 8.4mm
- Length: 100m Reel
BASEC Approved Cable 6242BH10WHIC Features
Construction: Plain annealed copper conductor, Thermosetting insulated two colour coded cores laid flat with an uninsulated circuit protective conductor CPC and LSZH sheathed.
Standards: Certified to BS7211, EN 50268, BS EN 50267-2-1, EN 50267, EN 50265, IEC 60332
Conductor: 1.0 - 2.5mm²
Class 1 solid copper conductor to BS EN 60228:2005 (previously BS6360)
Conductor: 4.0 - 10mm²
Class 2 stranded copper conductor to BS EN 60228:2005 (previously BS6360)
Insulation : Insulation: XLPE (Cross-linked Polyethylene)
Standard Colours: Core - Blue and Brown / Sheath White
Voltage Rating: 300/500 Volts
Temperature Rating: Operating Temperature: -25°C to 90°C.
