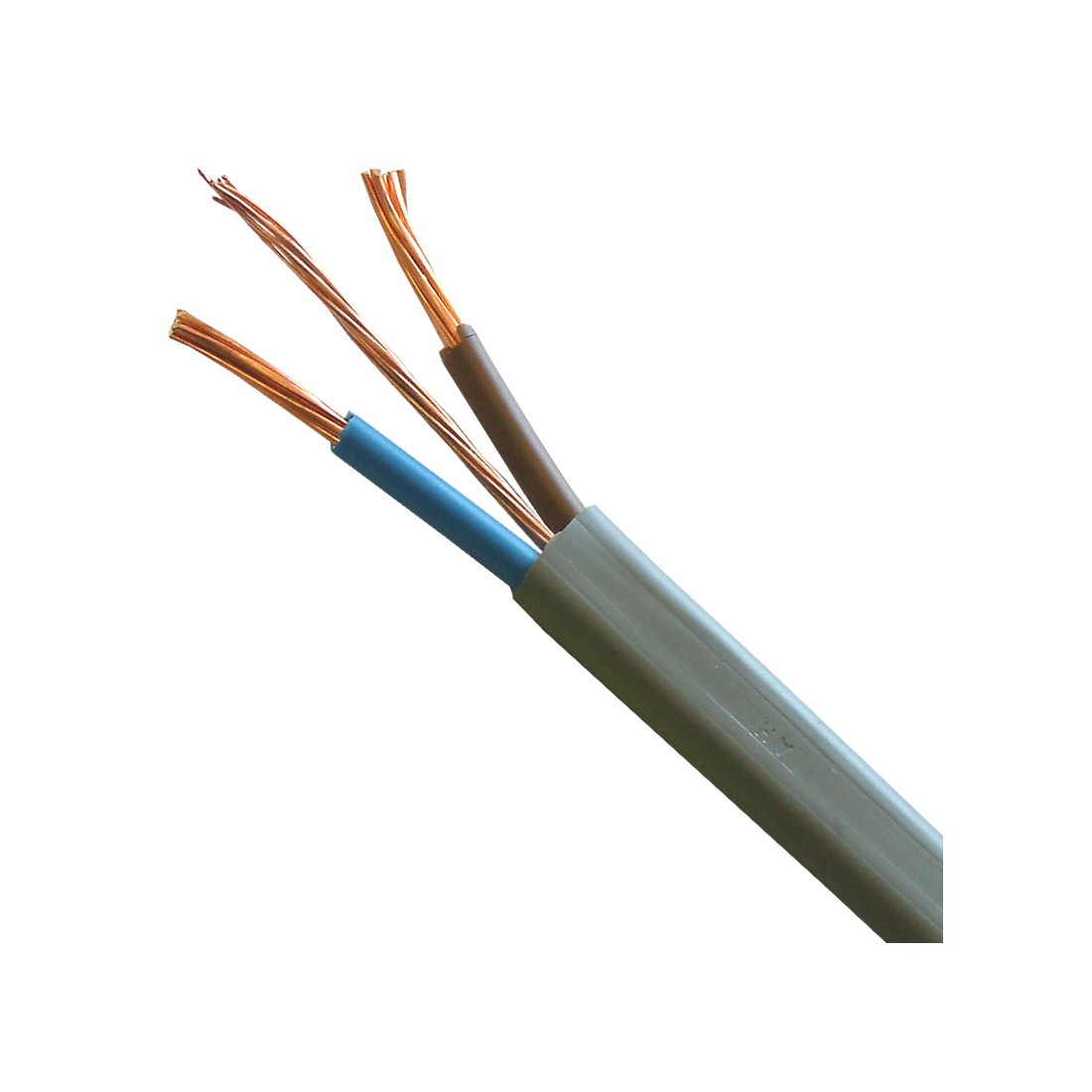

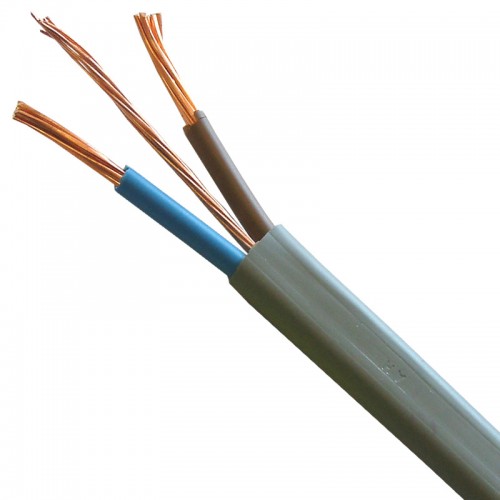

6242YH10GREYC BASEC Approved Grey 6242YH Twin & Earth Cable 10mm 100m Reel

6242YH10GREYC BASEC Approved 10mm Twin & Earth Cable delivered on a 100m Drum for use with standard power. Can be used in damp or dry conditions on trays or boards buried in plaster or in channels.

Order code: 6242YH10GREYC
Manufacturer: BASEC Approved Cable
GTIN:

£ 317.68 incl. VAT
£ 264.73 excl. VAT

Normally despatched within 1-2 working days
Normally despatched
within 1-2 working days

BASEC Approved Cable 6242YH10GREYC Description

  • Application: General, domestic and light industrial mains wiring including lighting circuits, central heating, extractor fans etc.
  • Type: 6242YH
  • Number of Cores: 2
  • Conductor Diameter: 10mm²
  • Conductors: Solid Copper Conductors
  • Insulation: PVC
  • Outer Sheath Colour: Grey
  • Core Colours: Brown, Blue
  • Earth: Bare Copper
  • Current Rating: 53A
  • Max Voltage: 300/500V
  • Standards: BS 6004 Table 4, BS EN 60332-1-2
  • Width: 16.8mm
  • Depth: 8.4mm
  • Length: 100m Reel

BASEC Approved Cable 6242YH10GREYC Features

Construction: Plain annealed copper conductor, PVC insulated two colour coded cores laid flat with an uninsulated circuit protective conductor CPC and PVC sheathed.

Standards: Certified to BS6004

Conductor: 1.0 - 2.5mm²
Class 1 solid copper conductor to BS EN 60228:2005 (previously BS6360)

Conductor: 4.0 - 16mm²
Class 2 stranded copper conductor to BS EN 60228:2005 (previously BS6360)

Standard Colours: Core - Blue and Brown / Sheath Grey

Voltage Rating: 300/500 Volts.
