6942X15A BASEC Approved 6942X Black 2 Core Steel Wire Armoured Cable 1.5mm (priced per metre)
6942X15A BASEC Approved 6942X 2 Core 1.5mm SWA Cable Cut to length by the metre is a hard-wearing mains power distribution cables for use underground, outdoor, indoor and for use in cable ducting. May be embedded in concrete.
Order code: 6942X15A
Manufacturer: BASEC Approved Cable
GTIN:
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
BASEC Approved Cable 6942X15A Description
- Application: Auxiliary control, power networks and other mains supply wiring including underground and external applications.
- Type: 6942X
- Number of Cores: 2
- Conductor Diameter: 1.5mm²
- Insulation: PVC (Polyvinyl Chloride)
- Conductors: Stranded Copper Conductor
- Insulation: XLPE (Extruded Cross-Linked Polyethylene)
- Bedding: PVC (Polyvinyl Chloride)
- Armouring: Galvanised Steel Wire Armour
- Outer Sheath Colour: Black
- Core Colours: Blue & Brown
- Earth: In Armouring
- Current Rating: 24A
- Approximate Diameter: 12mm
- Max Voltage: 600/1000V
- Length: Cut to length by the metre
BASEC Approved Cable 6942X15A Features

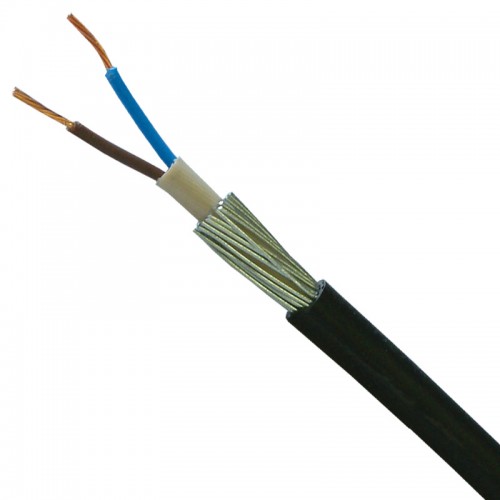

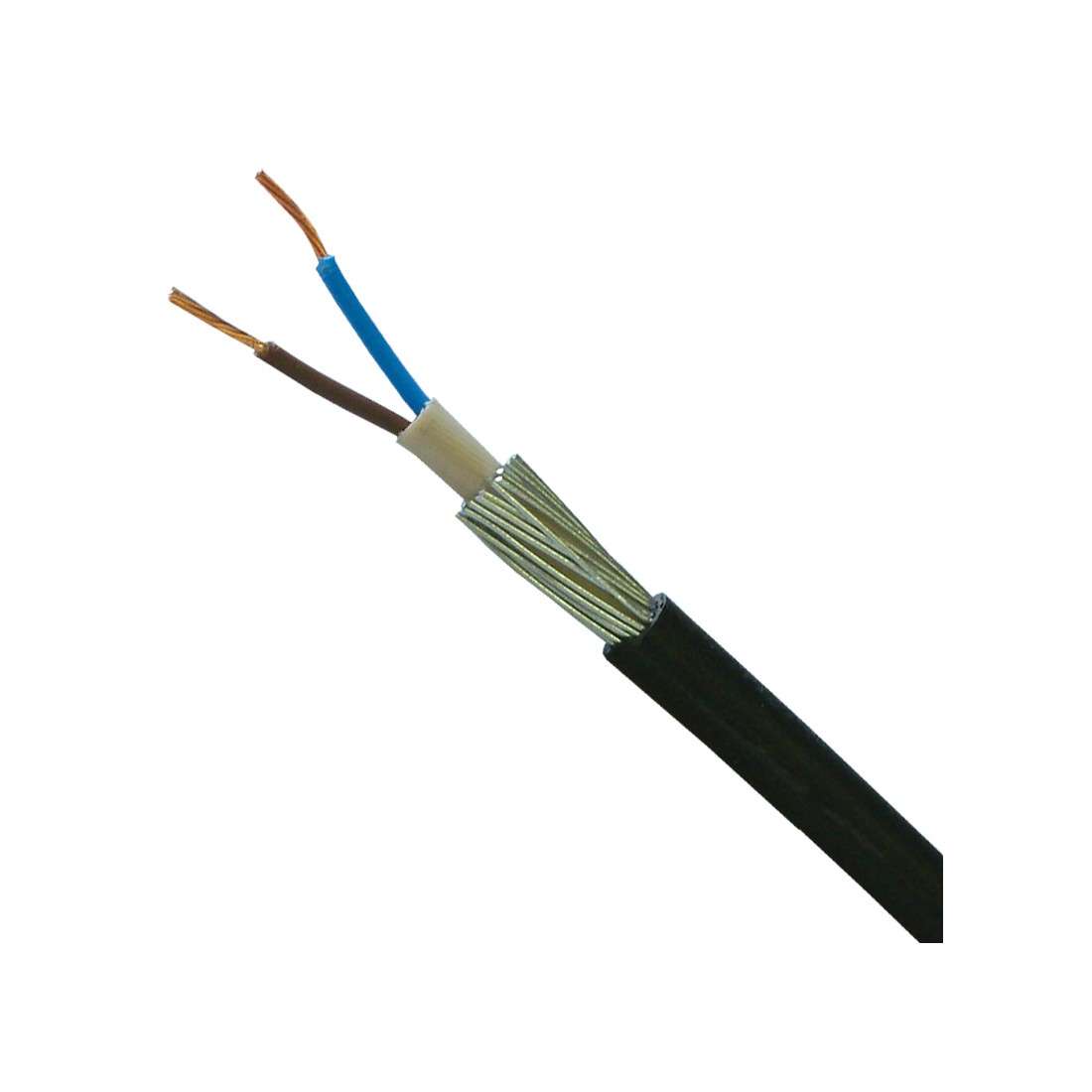

Construction: Stranded plain copper conductors, XLPE insulated two cores laid up with extruded PVC bedding, galvanised steel wire armoured and PVC sheathed.
Standards: Certified to BS5467, IEC 60502
Conductor: Class 2 plain stranded copper conductor to BS EN 60228:2005 (previously BS6360)
Standard Colours: Cores - Blue & Brown / Sheath Black
Voltage Rating: 600/1000 Volts
Temperature Rating: 0°C to +90°C.
