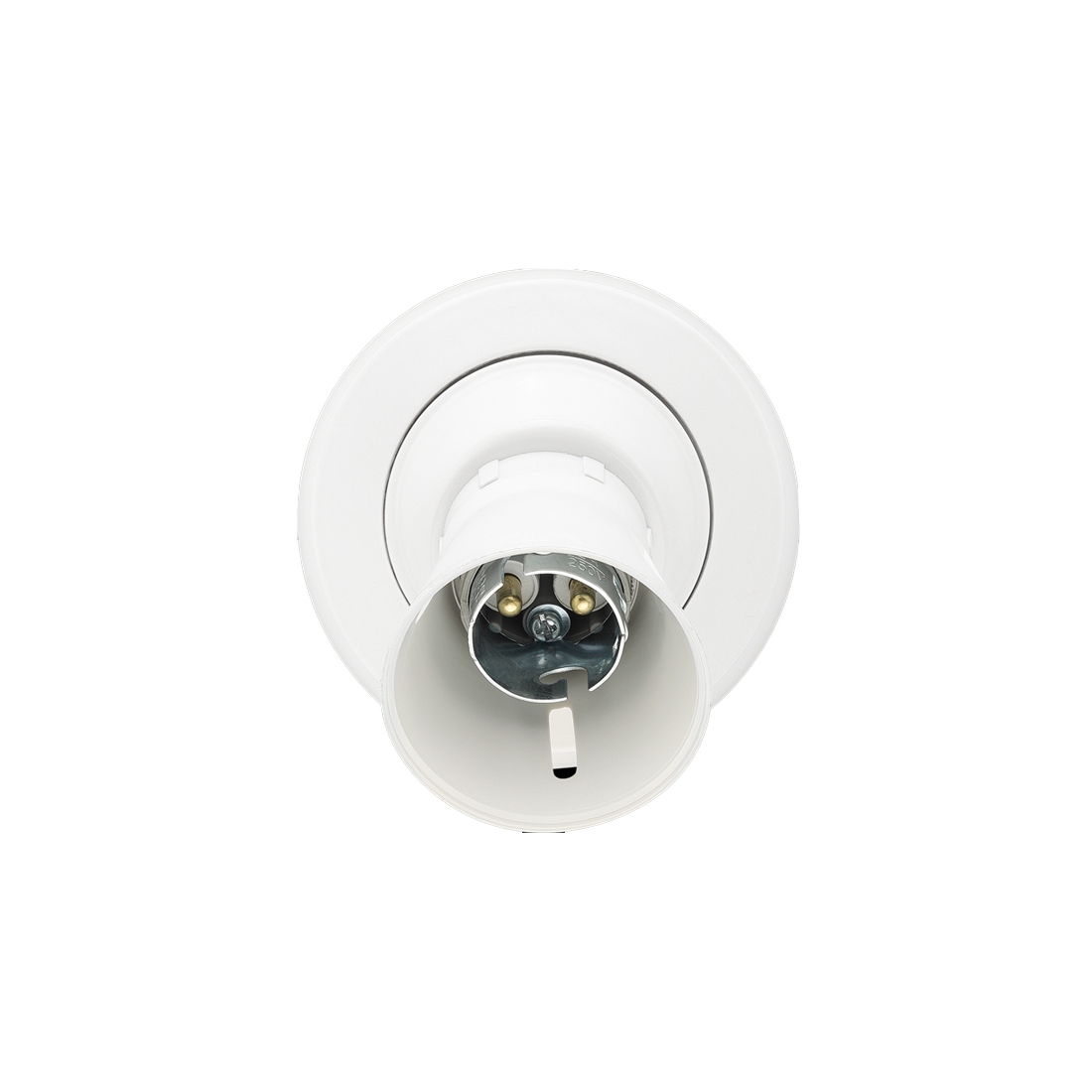

BG Electrical 767 240V/6A Angled Batten Lampholder White
The BG Electrical 767 is a 240V/6A angled batten lampholder with 3 terminals and earth enclosed in an 85mm diameter base with home office skirt.
Order code: 767
Manufacturer: BG Electrical
GTIN: 5021166767090
Notify me by email when product is available
Normally despatched
within 1-2 working days
within 1-2 working days
BG Electrical 767 Description
BG Electrical 767 White T2-Rated pre-wired enclosed 2 terminal body angled batten lampholder with 3 terminals and earth in the 85mm diameter base, BC lampholder and home office skirt.
T2 temperature rated, the lampholder cap can withstand temperatures up to 210°C and has a maximum rating of 150W.
Designed with large capacity earth terminal with locking terminal screw, loop in and out and switching and wiring aperture in base with an extra knock out for ease of wiring and installation.
BG Electrical 767 Features
- Base moulding produced in clear polycarbonate
- Cover mouldings produced in satin finish urea
- Base incorporates L, N and Loop-in terminals with 8 individual cable entries and captive screws
- Large capacity Earth terminal with locking terminal screw
- Wiring aperture in base with extra knockout for ease of wiring
- Alternative fixing holes allow for off centre mounting
- Lampholder T2 rated
- 2 x 0.75mm² heat resistant wire supplied prewired to lampholder
| Order Code | 763 |
| Standard(s) | BS 67, BS EN 61184, BS6141 |
| Rating | 6 Amp 250V~, 150 Watt max |
| Terminal Capacity | 4 x 1.0mm² 3 x 1.5mm² 1 x 2.5mm² |
| Covered by RoHS directive | Yes |
| Size | 85mm dia x 76mm |
| Fixing Centres | 50.8 mm |
