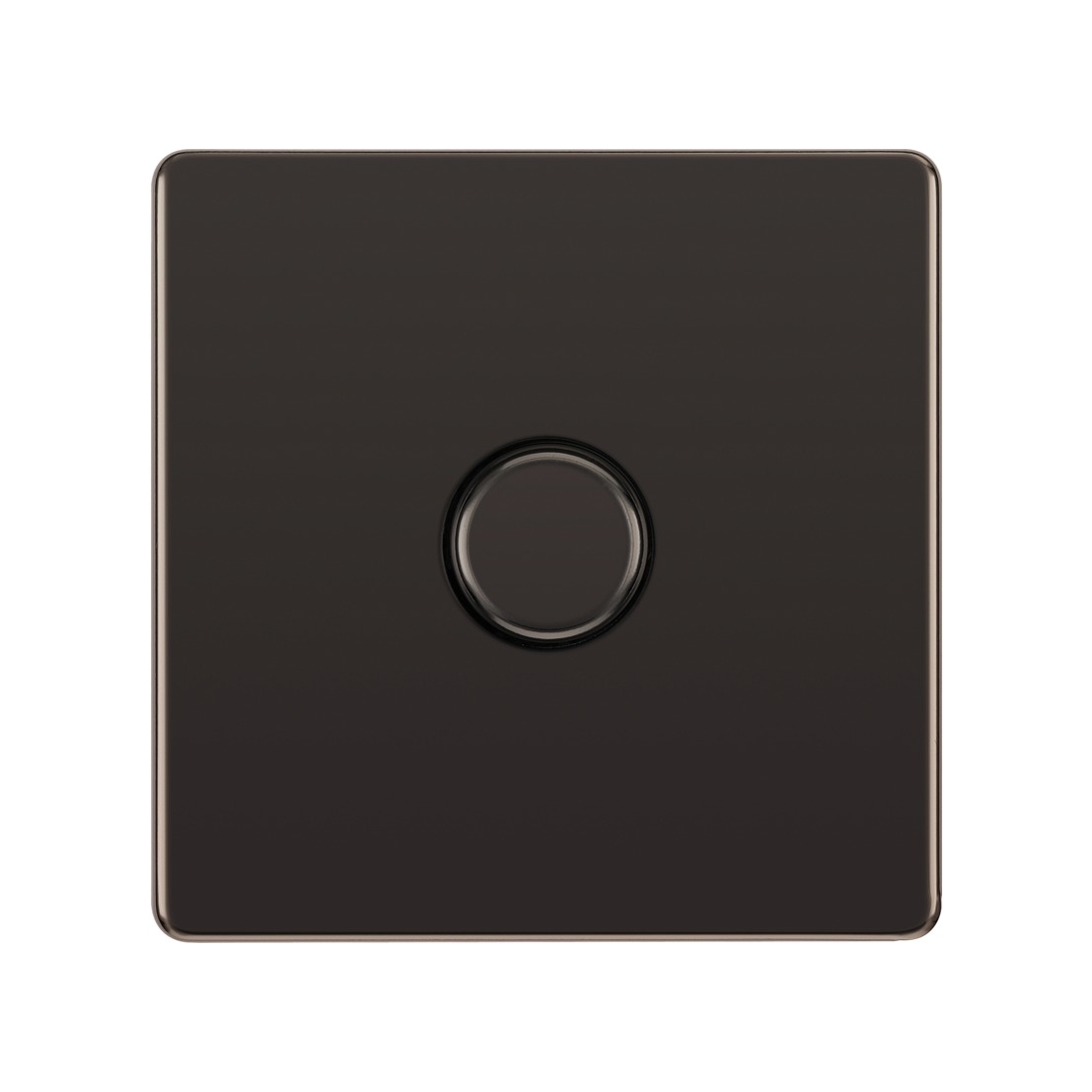

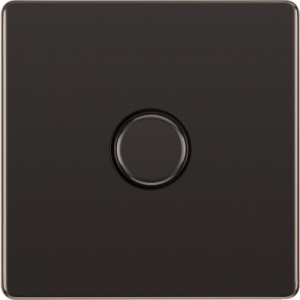

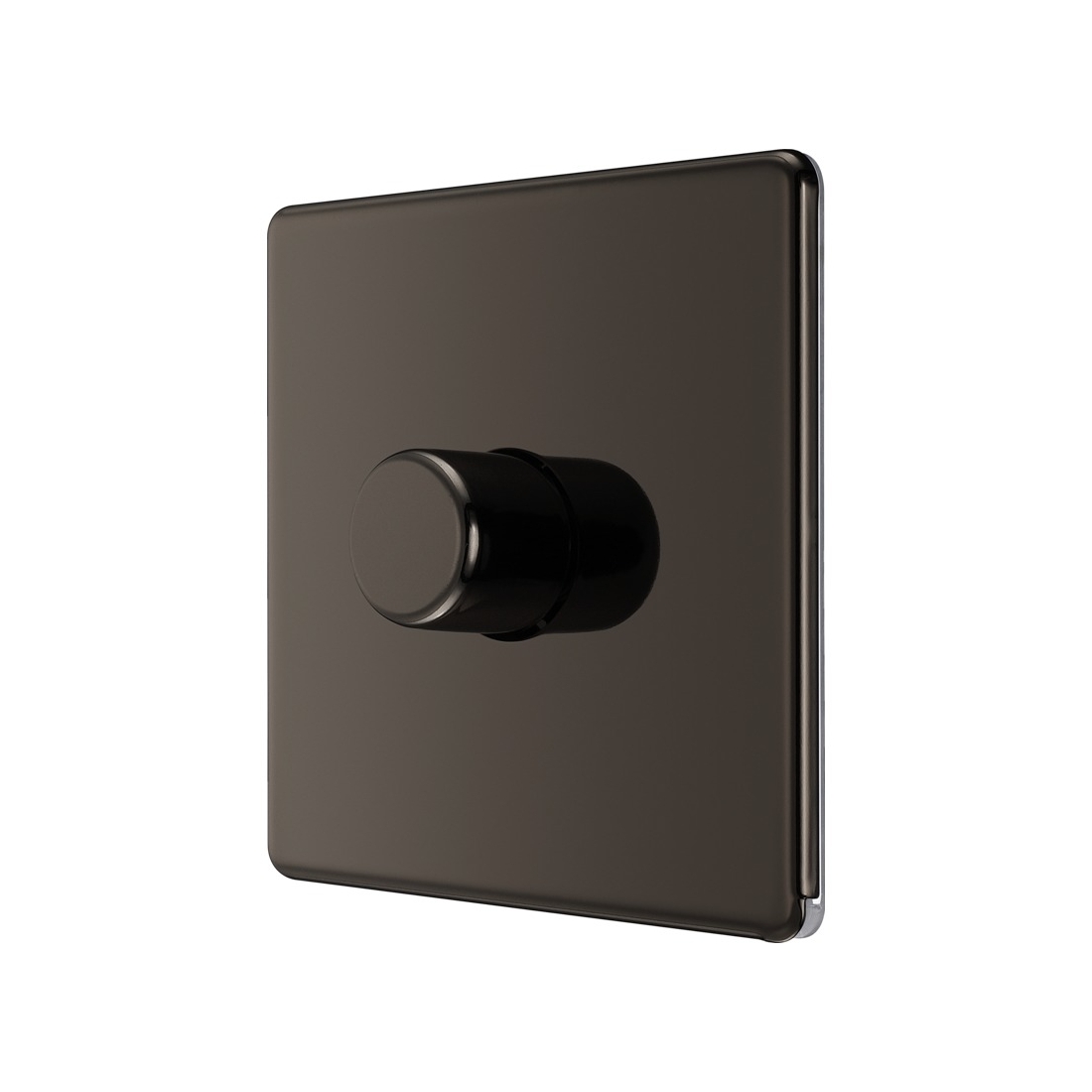

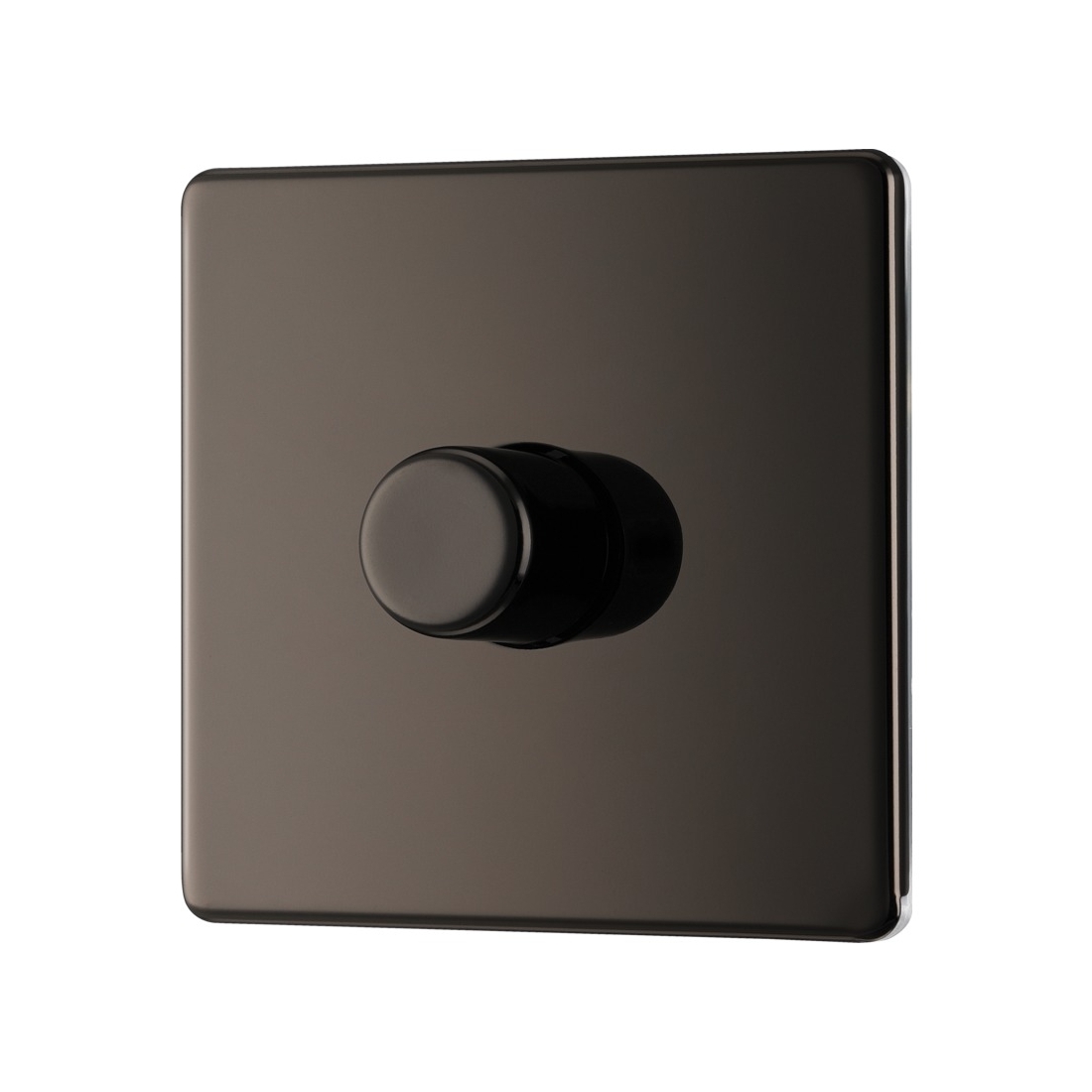

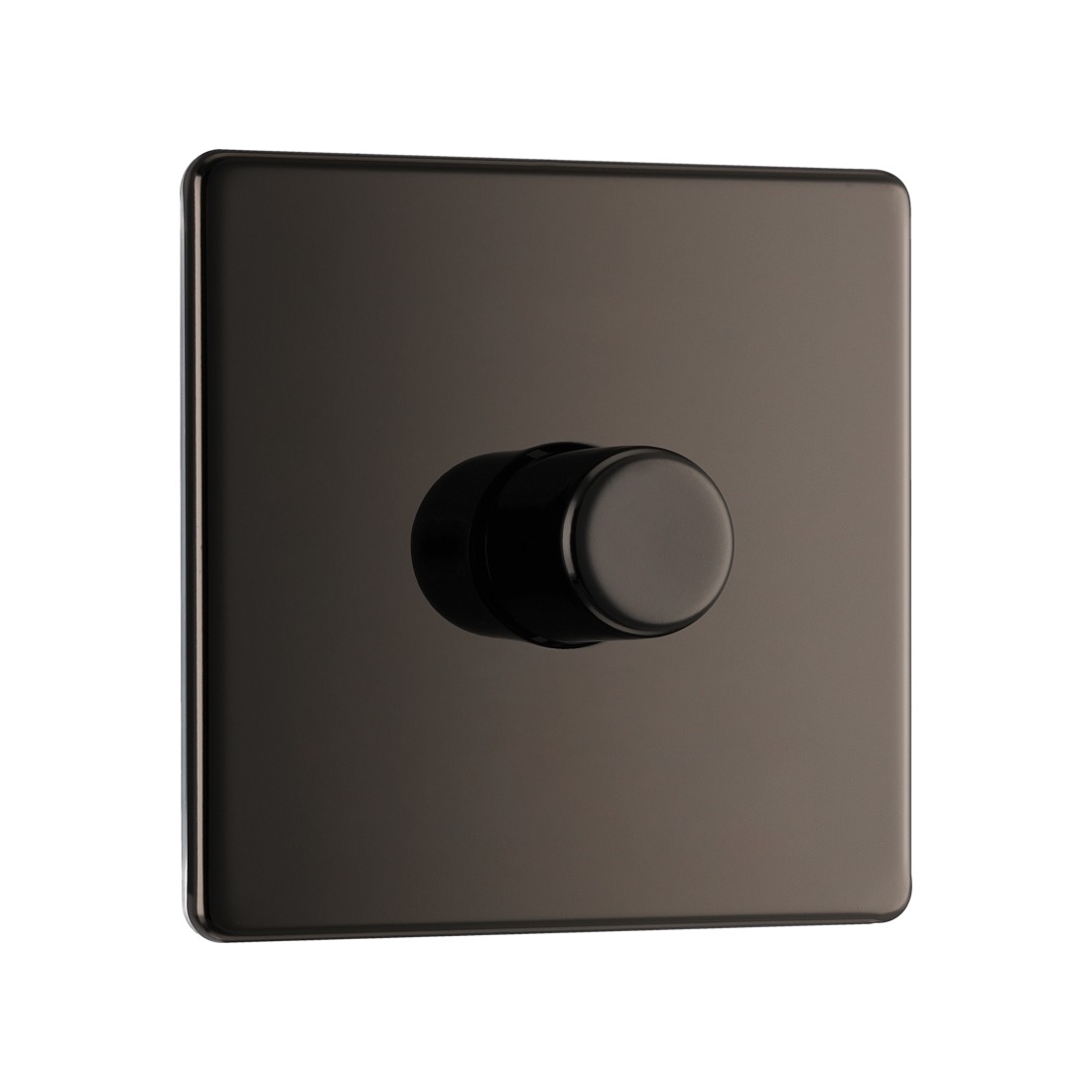

BG Electrical FBN81 Nexus Flatplate Black Nickel Screwless 1 Gang 2 Way Push Trailing Edge Dimmer Switch - Suitable For LED Lighting 200W

BG Electrical FBN81 Description

The BG Electrical Nexus Flatplate FBN81 is a sleek black nickel screwless flat plate 1 gang 2 way 200W intelligent dimmer switch that is used to vary the brightness of a light and to enhance the ambient mood settings.

The sleek flat profile with round edges compliments any interior décor. Each dimmer knob is in a matching black nickel finish. Suitable for domestic or commercial installations.

This intelligent trailing edge dimmers have a lower minimum load than leading edge dimmers. This enables greater compatibility for LED, Halogen, CFL and Incandescent lamps.

Delivers smooth control with no noise while dimming, and accounts for lower-wattage lamps in order to eliminate flickering. These dimmer switches come with BG’s soft start technology, bringing lamps to a set level of light in the space of a second and so prolonging their lifespan. They also protect against overloading by automatically lowering the power sent to lights or transformers if too many are connected, keeping the consumer safe.

Secure easy 'clip on, clip off' front plate design. Fits into standard flush/surface mounting boxes (35mm minimum box depth required).

Features angled colour coded terminals and backed out captive screws and twin earth terminals for ease of installation.

Supplied with a 25-year guarantee.

BG Electrical FBN81 Features

• BG Electrical FBN81 1 gang 2 way intelligent dimmer switch
• Black nickel flat plate design
• Secure easy 'clip on, clip off' front plate design
• Rating: 200W
• Tungsten lamp - 60-400W
• Halogen lamp (Mains Voltage) - 50-400W
• Halogen lamp (Low Voltage, 12V) - 35-350W
• Dimmable LED - 5-50W
• Dimmable Compact Fluorescent (CFL) - 10-100W
• Intelligent trailing edge dimmers have a lower minimum load than leading edge dimmers
• Offers greater compatibility for LED, Halogen, CFL and incandescent lamps
• Rotary dimmer control with push on/off function
• Matching dimmer knob
• Smooth dimming control
• Silent operation - no noise when dimming
• Soft start brings the lights to a set level in around 1 second and extends the life of lamps
• Overload protection
• Support for lower wattage lamps eliminates flicker
• Fixed integrated plastic gasket to protect metal edges from moisture

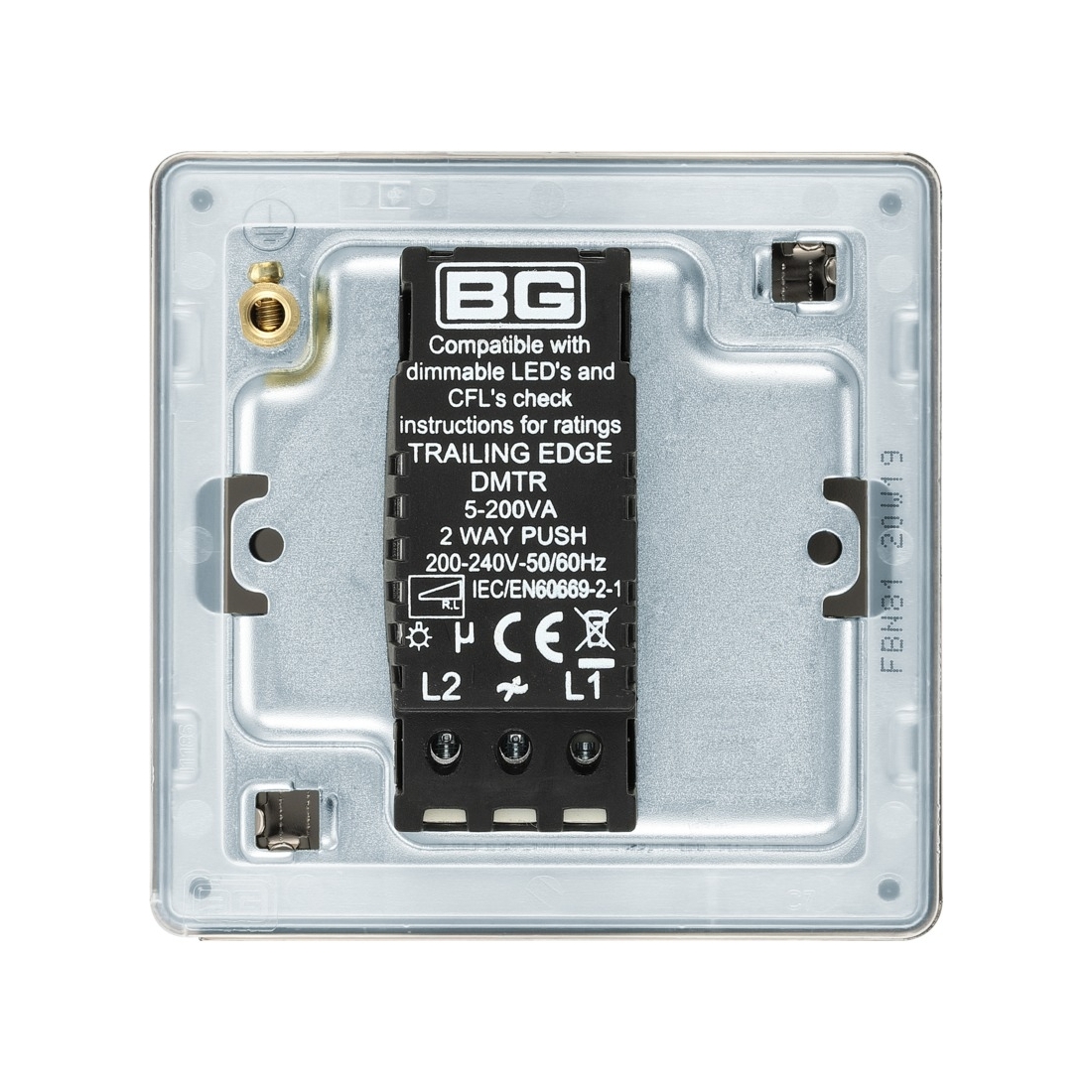

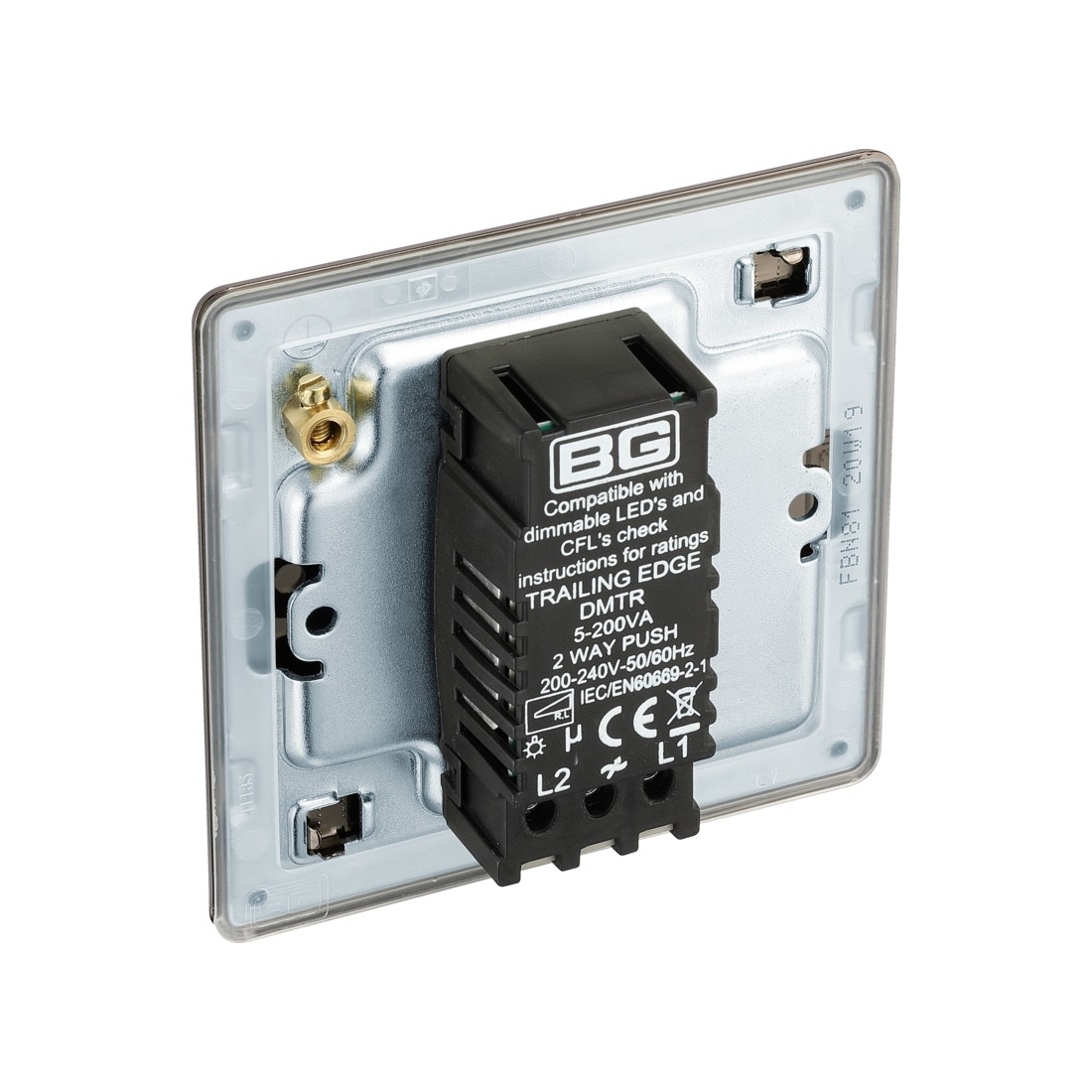

• Angled in-line colour coded captive terminals
• Twin earth terminals
• Minimum mounting box depth: 35mm
• Manufactured to BS EN 60669-2-1
• Dimensions: Height: 86mm | Width: 86mm | Depth: 41mm
